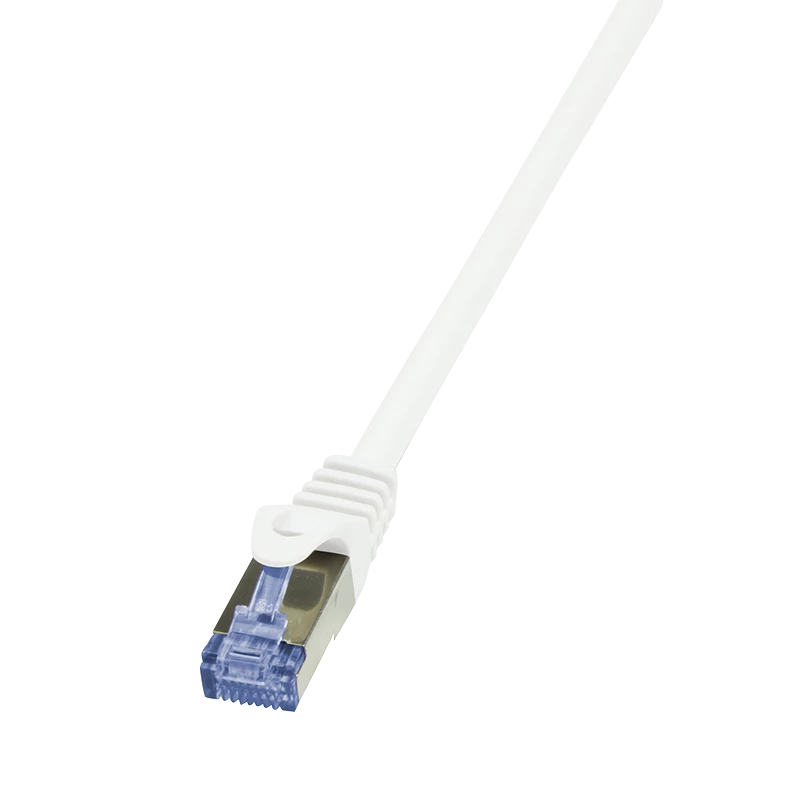

Cable de parcheo LogiLink PrimeLine Cat.7 RJ-45 Cat7 0,25 m blanco

The LogiLink PrimeLine Cat.7 RJ-45 cable (0.25 m, white) is a short patch cable designed for high-speed network connections. It complies with Cat.7 standards and supports up to 600 MHz bandwidth and 10 Gigabit raw transmission. The S/FTP construction with individually foil-shielded pairs and an overall braided shield reduces electromagnetic interference, while LSZH halogen-free jacket material minimizes toxic emissions in case of fire. Both ends are fitted with gold-plated Cat.6 RJ-45 plugs for reliable contact.

Advantages

This Cat.7 networking cable provides stable high-frequency performance up to 600 MHz and is rated for 10 Gigabit raw data throughput. Its S/FTP AWG 26/7 copper core and pairs in metal foil offer enhanced protection against crosstalk and external interference. The gold-plated RJ-45 plugs improve signal contact and corrosion resistance. The LSZH jacket reduces smoke and toxic gas emission compared to standard PVC jackets. Compact 0.25 m length is suitable for short patching and tidy connections in racks or between adjacent devices.

Suitable for

• Short connections between switches, routers and patch panels
• Direct device-to-device links (e.g., PC to switch) in racks
• High-speed Ethernet environments requiring Cat7 performance
• Installations where low-smoke, halogen-free materials are preferred

Key specifications

• Standard: Cat.7 (ISO/IEC 11801, EN50173-1, TIA/EIA-568B.2-1)
• Bandwidth: 600 MHz
• Data rate: up to 10 Gigabit (raw)
• Cable type: S/FTP, AWG 26/7 copper, pairs in metal foil
• Connectors: RJ-45 (Cat.6), gold plated
• Jacket: LSZH (halogen free)
• Length: 0.25 m
• Colour: White

How to use

Connect one RJ-45 plug to the network port of your device and the other plug to the corresponding port on the switch, router or patch panel. For best performance ensure connectors are fully inserted and secured. Use the 0.25 m cable where short, direct connections are needed to avoid excess slack and maintain tidy cable management. Do not bend the cable sharply near the connectors to prevent damage to internal shielding.

Recommendations

Use this LogiLink PrimeLine Cat.7 cable for short, high-speed links inside racks or between closely placed network devices. Avoid exposure to prolonged mechanical stress and maintain a minimal bend radius to preserve shielding and performance.
