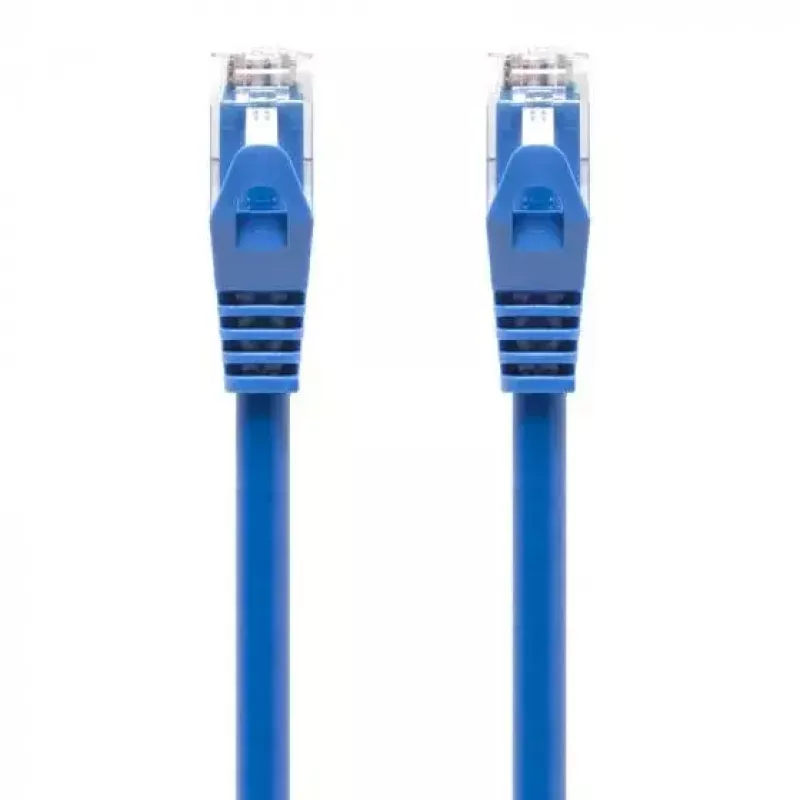

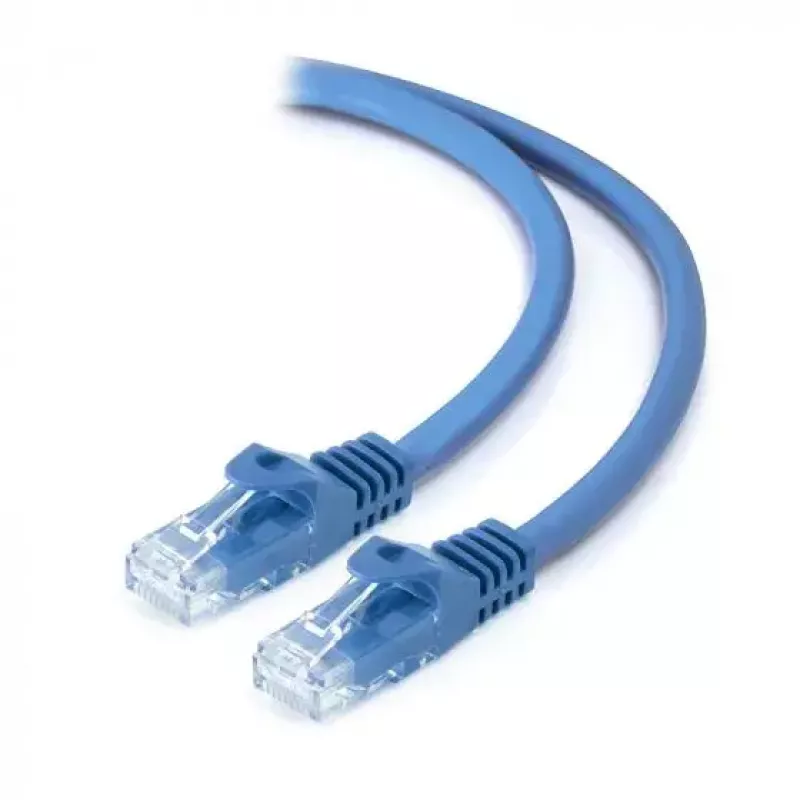

Cable de red ALOGIC azul CAT6 LSZH 1,5 m

The ALOGIC Blue CAT6 LSZH 1.5m network cable connects Ethernet devices using a Cat6 standard with LSZH (low smoke zero halogen) jacket. It is designed for high-performance networking and supports multi-gigabit protocols and data transfer rates up to 1000 Mbit/s. The cable contains four pairs of 24 AWG insulated copper conductors separated by a cross spacer to reduce crosstalk and insertion loss. RJ-45 gold-plated connectors and a snagless boot protect the plug during installation while ensuring reliable signal transmission.

Advantages

This CAT6 LSZH cable reduces impedance loss and return loss to improve network speeds, with construction that lowers crosstalk and insertion loss. The gold-plated RJ-45 connectors provide consistent contact and signal clarity, while the snagless boot protects the connector tab during routing and installation. The LSZH jacket minimizes harmful smoke and halogen emissions in case of fire, meeting EU specifications for safer indoor deployment.

Suitable for

• Wired LAN connections between computers, switches and routers
• Office and home network installations requiring up to 1 Gbit/s
• High-density patch panels and structured cabling systems

Key specifications

• Brand: ALOGIC
• Model / MPN: C6-1.5B-BLUE
• Length: 1.5 m
• Category: Cat6
• Conductor: 4 pairs, 24 AWG insulated copper
• Connector: RJ-45 with gold-plated contacts
• Jacket: LSZH (Low Smoke Zero Halogen)
• Maximum data rate: up to 1000 Mbit/s

How to use

Plug one RJ-45 connector into your network device (PC, switch, router) and the other connector into the corresponding port on the opposite device. Route the cable avoiding sharp bends and excessive tension; secure it with cable management accessories if needed. The snagless boot protects the clip during insertion and removal. Verify link status on your devices to confirm a successful connection.

Recommendations

For best performance, keep cable runs under recommended length limits for Ethernet, avoid running parallel to high-voltage power lines, and use proper patch panels and switches rated for gigabit speeds. Inspect connectors and jacket for damage before installation.
