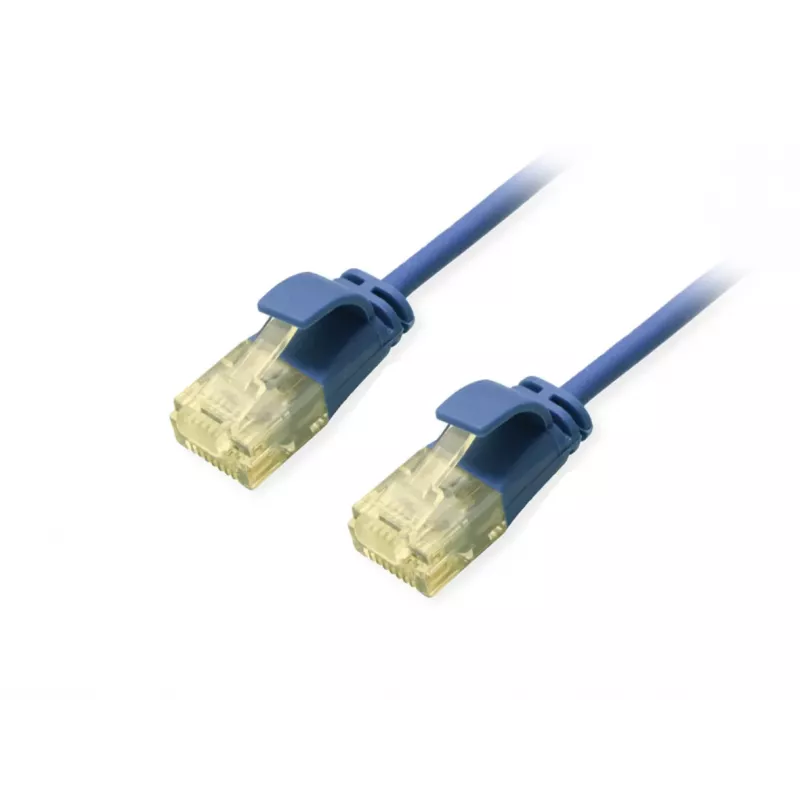

Cable de red Cat.6A U/UTP fino Equip 0,15 m azul 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.15m is a compact, high-performance network cable designed for data centres, enterprise networks and high-density installations. With a slim diameter (32 AWG) and LSZH jacket, it reduces cable bulk to improve airflow and cable management while supporting 10 Gigabit Ethernet and frequencies up to 500 MHz.

Advantages

This Cat.6A U/UTP slim patch cable delivers 10GBase-T performance with minimal crosstalk thanks to its unshielded twisted pair design and stranded bare copper conductors. The molded boot with strain relief increases connector durability and flexibility for frequent reconfigurations. The cable is RoHS compliant and uses a Low Smoke Zero Halogen jacket for safer installation in confined spaces.

Suitable for

• Short patching between switches and patch panels in racks
• High-density cabling runs in data centres and server rooms
• Connections requiring 10 Gigabit Ethernet, PoE or PoE+

Key specifications

• Length: 0.15 m
• Conductor: stranded bare copper, 32 AWG
• Category: Cat.6A U/UTP (UTP)
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• PoE: suitable for PoE, PoE+
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Blue

How to use

Plug one RJ-45 connector into the network equipment (switch, patch panel or NIC) and the other connector into the corresponding port. Route the slim cable within the rack or cable management channels to optimise airflow and avoid sharp bends. The stranded conductors and molded boots allow flexible handling during frequent reconfigurations.

Recommendations

Use this 0.15 m slim patch cable for short links inside racks or between adjacent panels. Avoid running unshielded cables parallel to high-power electrical lines in areas with strong electromagnetic interference; for such environments, consider shielded cabling solutions.
