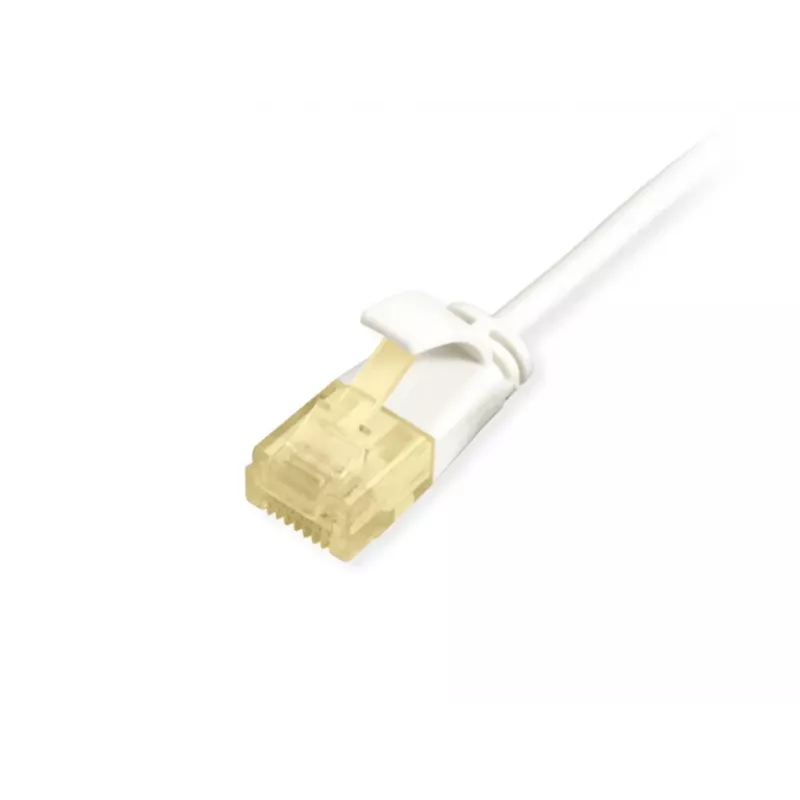

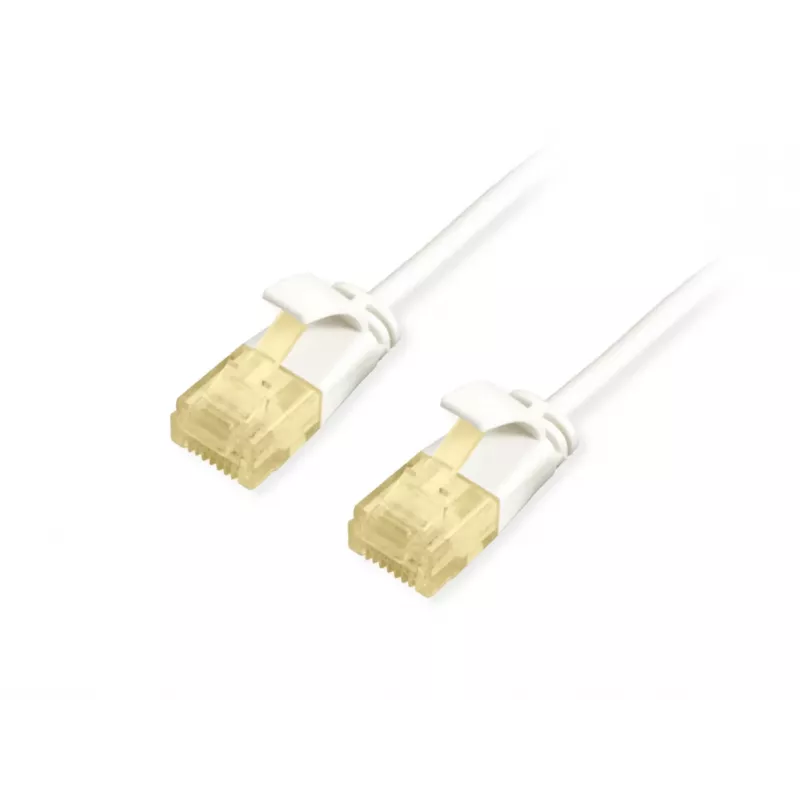

Cable de red Cat.6A U/UTP fino Equip 2 m blanco 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 2m is a slim, high-performance Ethernet patch cable designed for data centres, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and a 2 m length, it allows neat cable routing in crowded racks and patch panels while supporting up to 10 Gigabit Ethernet at frequencies up to 500 MHz. The cable uses unshielded twisted pair (U/UTP) construction with stranded bare copper conductors and RJ-45 straight male connectors, and it is available in white.

Advantages

The slim 32 AWG design improves airflow and simplifies cable management in tight spaces without sacrificing 10G performance. Unshielded U/UTP construction offers reliable operation in low to moderate EMI environments, while stranded copper conductors provide flexibility and durability for frequent moves and reconfigurations. The cable is RoHS compliant and has a Low Smoke Zero Halogen (LSZH/LSOH) jacket for safer deployment in enclosed areas.

Suitable for

• 10 Gigabit Ethernet connections (10GBase-T)
• High-density patch panels and server racks
• PoE and PoE+ powered devices
• Office networks, data centres and telecom rooms

Key specifications

• Length: 2 m
• Conductor: stranded bare copper, 32 AWG
• Category: Cat6a U/UTP (unshielded)
• Bandwidth: up to 500 MHz
• Transmission: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• Cabling standard: 10GBase-T
• Jacket: LSZH/LSOH
• Compliance: ISO/IEC 11801, EN 50173, RoHS
• Colour: White

How to use

Plug one RJ-45 connector into the network port of the switch, patch panel or device and the other connector into the corresponding port on the server, workstation or network outlet. Ensure connectors are fully inserted until the latch clicks. Route the cable through cable management channels or ties to maintain airflow and avoid tight bends that could stress the cable. For optimal performance, keep cable runs within recommended lengths for structured cabling and avoid running parallel to large sources of electromagnetic interference.

Recommendations

Use this slim Cat.6A U/UTP patch cable for short to medium runs (such as within racks or between nearby equipment) where space savings and flexibility are important. Avoid environments with strong EMI where shielded cabling would be preferable.
