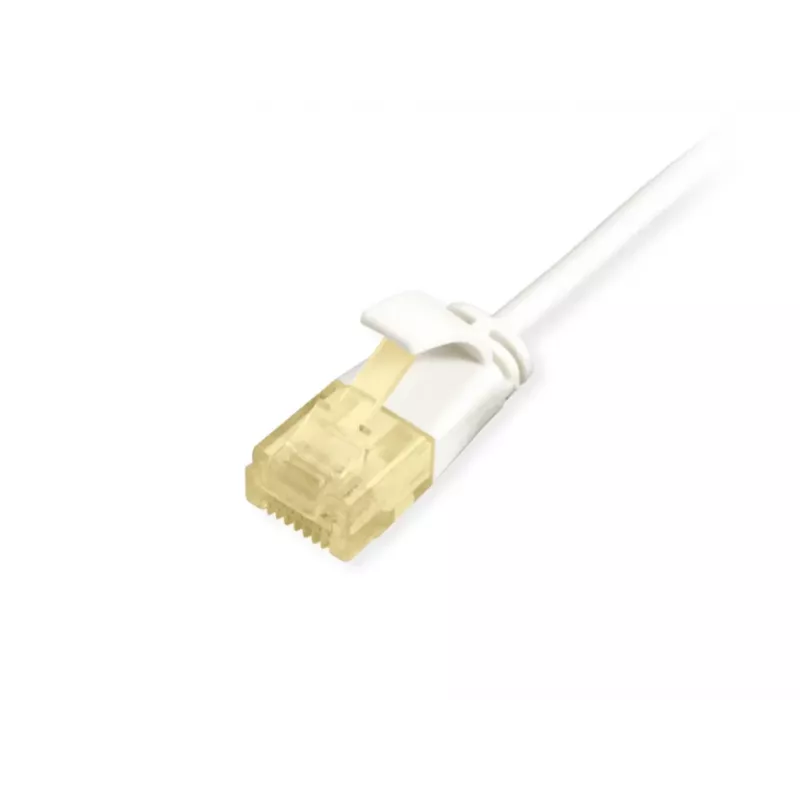

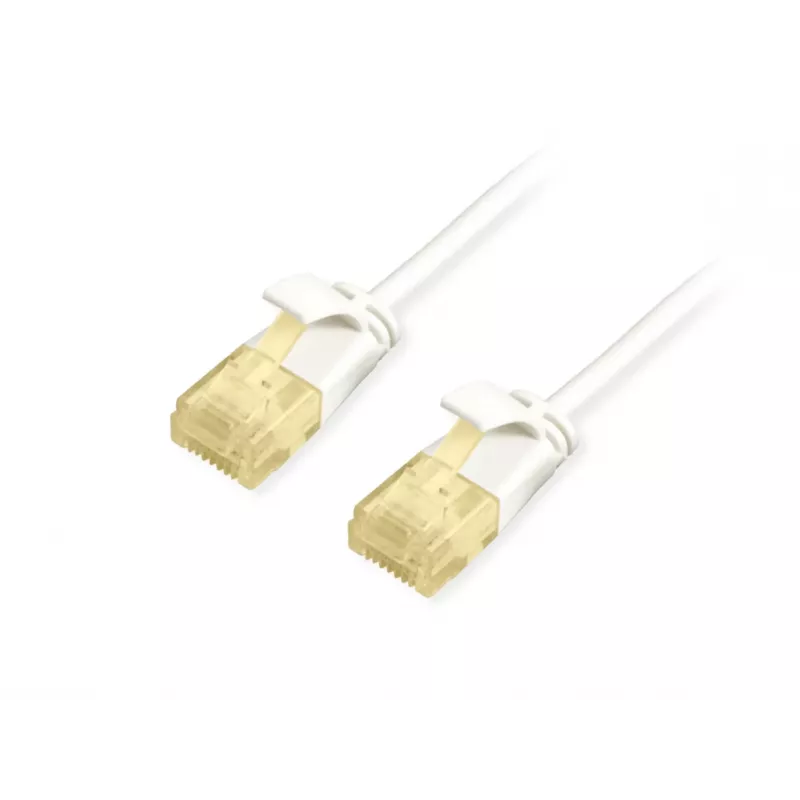

Cable de red Cat.6A U/UTP fino Equip, 3,0 m, blanco

The Equip Cat.6A U/UTP Slim Patch Cable 3.0m in white is a slim-profile Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter and stranded bare copper conductors, it supports 10 Gigabit Ethernet at frequencies up to 500 MHz while enabling neater cable routing and improved airflow in crowded racks and patch panels.

Advantages

The slim 32 AWG construction reduces cable bulk and helps with cable management without sacrificing performance. Unshielded twisted pair (U/UTP) design provides reliable transmission in environments with low to moderate electromagnetic interference. Stranded copper conductors and molded boots with strain relief increase flexibility and durability for frequent reconfigurations. The cable is RoHS compliant and available in a Low Smoke Zero Halogen (LSZH/LSOH) jacket for safer installations.

Suitable for

• 10 Gigabit Ethernet connections (10GBase-T)
• High-density racks and crowded patch panels where space saving is required
• PoE and PoE+ powered devices
• Office and data centre horizontal cabling runs up to 3 m

Key specifications

• Length: 3 m
• Cable type: Cat.6A U/UTP (unshielded)
• Conductor: Stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s
• Connectors: RJ-45 straight male — both ends
• Jacket: LSZH/LSOH (Low Smoke Zero Halogen)
• Standards: Compliant with ISO/IEC 11801 and EN 50173
• Color: White

How to use

Connect one RJ-45 connector to a network switch, patch panel or router port and the other RJ-45 connector to the target device such as a server, workstation or access point. Ensure connectors are fully seated and that cable bend radius is respected during installation. For best performance, avoid running the cable alongside high-voltage power lines and minimize tight bends or kinks.

Recommendations

Use this slim Cat.6A patch cable for short horizontal links and high-density deployments where space and airflow are important. Verify PoE power requirements of connected devices and check that cable length and environment conform to your network design and standards.
