Cable de red DeLOCK M12 D-codificado 4 polos conector hembra a RJ45 Cat5e 5 m negro

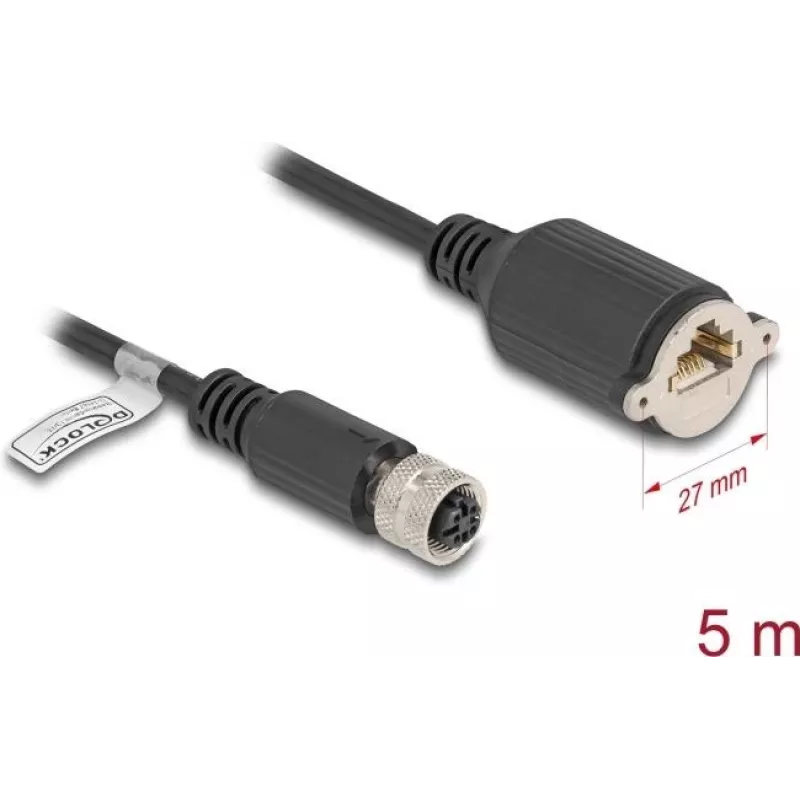

This industrial Ethernet cable by DeLOCK connects devices with M12 D-coded 4-pin female connectors to an RJ45 Cat5e jack. The 5 m black cable features F/UTP shielding and is intended for reliable data transmission in machine control and automation environments. The RJ45 panel-mount jack can be fixed with two screws to a slot bracket or chassis with a matching recess, allowing installation in an accessible position.

Advantages

The cable combines an M12 D-coded 4-pin female connector with a secured RJ45 panel-mount jack, supports Cat5e performance and includes F/UTP shielding to reduce electromagnetic interference. Its 5 m length offers flexibility for typical industrial installations, and the panel-mount RJ45 can be fastened with two screws for a stable connection point.

Suitable for

• Machine control connections
• Industrial automation wiring
• Panel or chassis network interfaces
• Ethernet linking between M12-equipped devices and standard RJ45 networks

Key specifications

• Brand: DELOCK
• Model/MPN: 80455
• EAN: 4043619804559
• Cable length: 5 m
• Connector 1: M12 D-coded 4 pin (female)
• Connector 2: RJ-45 panel-mount jack
• Category: Cat5e
• Shielding: F/UTP
• Colour: Black

How to use

Mount the RJ45 panel-mount jack into a prepared slot or recess on a bracket or chassis and secure it using the two fastening screws. Connect the M12 D-coded female end to the corresponding M12 male connector on the device. Verify the connection and test the network link using standard network testing tools. Ensure the cable routing avoids sharp edges and excessive bending.

Recommendations

For reliable operation in industrial environments, install the cable away from high-voltage sources and moving parts, keep bend radius within manufacturer limits, and verify shielding continuity when connecting to metal panels or grounded equipment.
