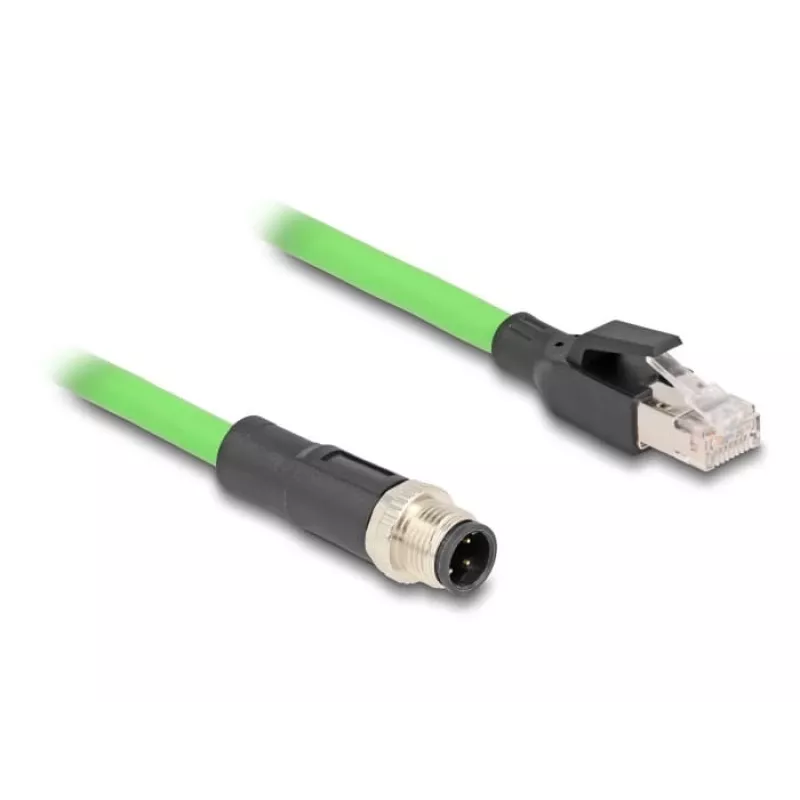

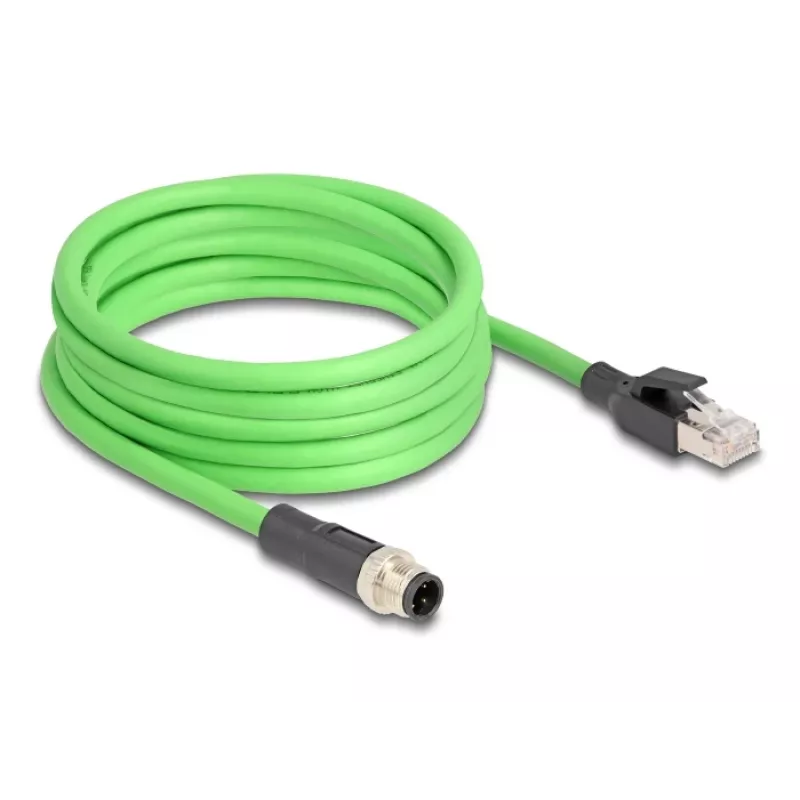

Cable de red DeLOCK M12 D-codificado 4 polos conector macho a conector macho RJ45 PUR (TPU) 5 m

The Network Cable DeLOCK M12 Cable D-coded 4 pin male to RJ45 male PUR (TPU) 5m is an industrial Ethernet cable designed to connect devices with M12 D-coded connectors to standard RJ45 network ports. The 5 m cable supports reliable data transmission for machine control, automation and other industrial networking tasks. The jacket is made of polyurethane (PUR/TPU) and the cable is UL 94 certified, providing resistance to oil, UV and mechanical wear for use in demanding environments.

Advantages

This Delock M12 D-coded cable combines a compact 4-pin M12 male connector with an RJ45 male plug to enable straightforward integration between field devices and standard network equipment. The PUR (TPU) jacket gives the cable oil and UV resistance while maintaining flexibility. The cable construction is processed for long service life and is suitable for continuous movement applications.

Suitable for

• Connecting sensors, actuators and controllers with M12 D-coded interfaces to RJ45 network devices
• Industrial Ethernet installations in automation and machine control
• Use inside drag chains and cable carriers requiring high flex life

Key specifications

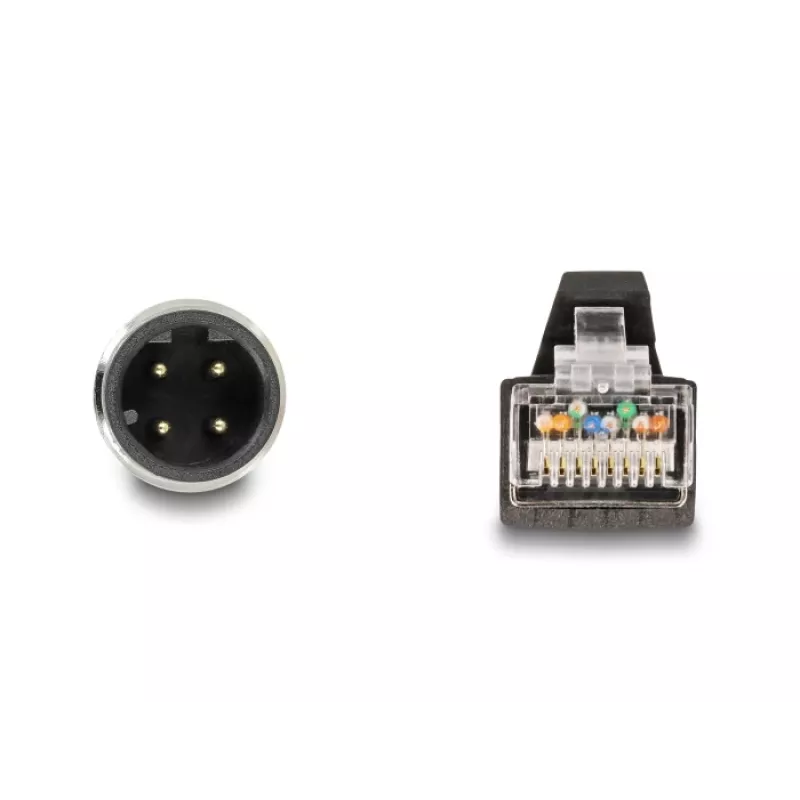

• Connector A: M12 D-coded, 4 pin, male
• Connector B: RJ45, male
• Cable length: 5 m
• Jacket material: PUR (TPU)
• Certification: UL 94 (as stated by manufacturer)
• Designed for high bending cycles (suitable for drag chain applications)

How to use

Connect the M12 D-coded male connector to the corresponding M12 D-coded female port on the field device and plug the RJ45 male connector into the network switch, router or Ethernet interface. Ensure connectors are fully engaged and secured according to device instructions. Route the cable avoiding sharp edges and excessive torsion; when installed in moving applications, follow the system’s minimum bend radius requirements.

Recommendations

For optimal lifetime in drag chains and continuous-movement applications, verify the manufacturer’s specified minimum bend radius and mounting guidelines. Avoid prolonged exposure to strong chemicals not compatible with PUR (TPU) and inspect connectors periodically for contamination or wear.
