Cable de red DIGITUS CAT 6 U-UTP fino, 1 m, negro — pack de 10

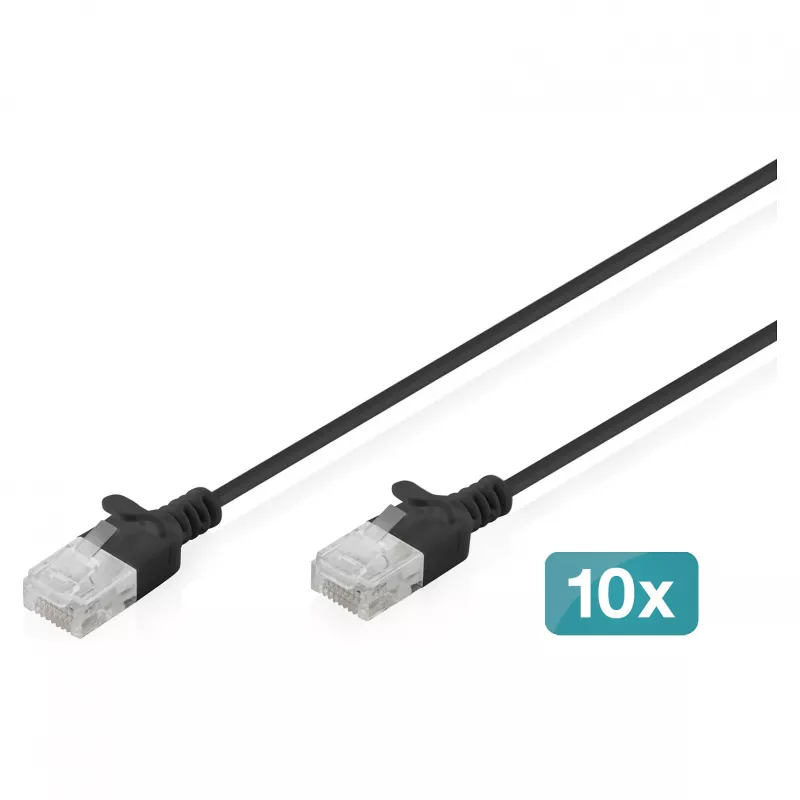

DIGITUS CAT 6 U-UTP Slim patch cable set contains ten 1 m black unshielded twisted-pair cables designed to provide CAT 6 performance for short Ethernet links. The slim 2.7 mm diameter and flexible jacket make these cables suitable for installations with limited space such as patch panels, switch stacks and desktop connections. The cables use stranded AWG 32/7 bare copper conductors, meet relevant CAT 6 wiring standards and include molded strain-relief boots and locking-lever protection to reduce damage at the connector.

Advantages

The reduced outer diameter and flexible LSZH jacket enable high-density routing and neat cable management in confined spaces without compromising transmission up to 1 Gbit/s and 250 MHz. Stranded copper conductors and molded anti-kink sleeves increase bend tolerance and connector durability. The cables are PoE and PoE+ capable, flame-retardant and conform to international wiring and performance standards for reliable structured cabling.

Suitable for

• Short Ethernet links between switches, patch panels and wall outlets
• Office and home LAN connections where space is limited
• High-density cabinet and rack installations with tight bend radii
• Desktop connections to routers, switches and networked devices

Key specifications

• Cable type: Unshielded twisted pair (U-UTP)
• Category: CAT 6, performance up to 250 MHz
• Length: 1 m per cable (10 cables per pack)
• Transmission speed: up to 1 Gbit/s (1000BASE-T)
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Conductor: Stranded bare copper AWG 32/7
• Insulation: HD-PE (high-density polyethylene)
• Bending radius: 15 × outer diameter

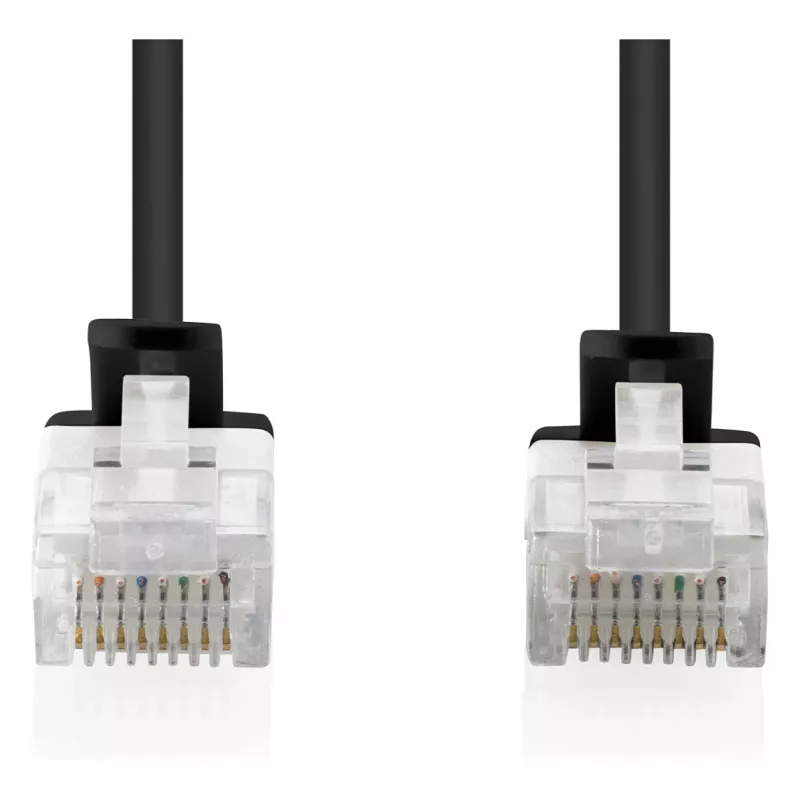

• Connector: RJ45 with molded strain relief and locking-lever protection
• Cabling standard: EIA/TIA 568B
• Operating temperature: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1, IEC 61034 compliance
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: approx. 750 mating cycles

How to use

Plug one RJ45 connector into the network device (switch, router, patch panel or NIC) and the other end into the corresponding port on the connected device, ensuring the locking tab engages. Route the slim cable along the intended path following recommended bend radii and avoid sharp kinks. For patch panels and dense cabling runs, guide the cables through organizers or cable managers to maintain neatness and prevent strain on the connectors.

Recommendations

For optimal performance, avoid exceeding the specified bending radius and keep cable lengths appropriate for the intended network segment. Use the slim DIGITUS CAT 6 patch cables for short interconnects and high-density areas; for permanent in-wall installations or runs longer than recommended for patch cables, use appropriate solid-conductor installation cables and follow local installation standards.
