Cable de red Digitus CAT 6A U/UTP cable de parcheo RJ-45 Cat6a 10 m gris

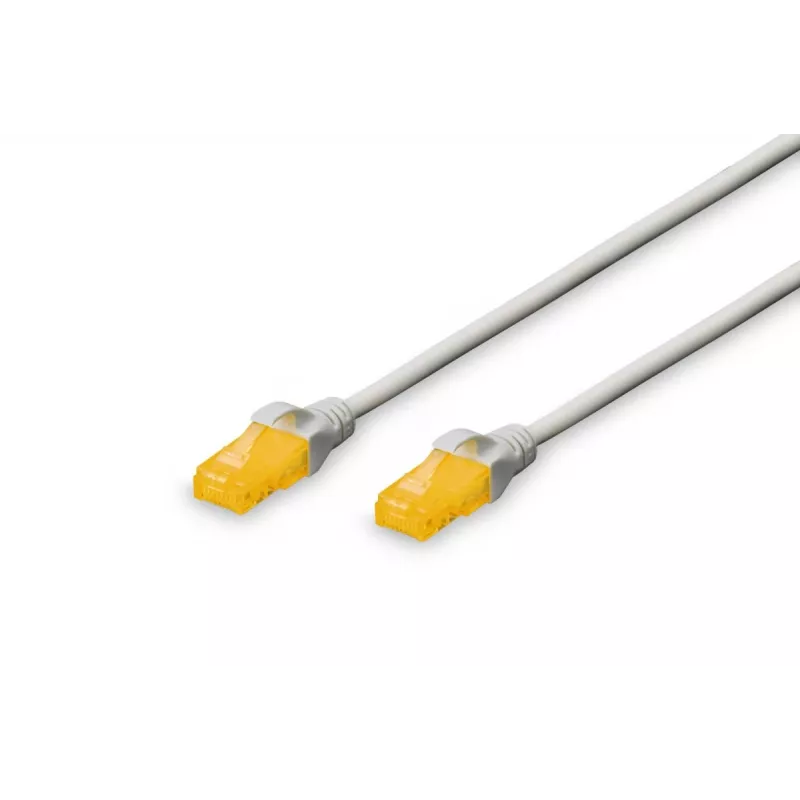

The DIGITUS Network Cable CAT 6A U/UTP patch cord (10 m, grey) is a high-performance RJ-45 to RJ-45 cable designed for modern Ethernet networks. It complies with ISO/IEC 11801 and DIN EN 50173 Category 6A specifications and is tested for performance up to 500 MHz to support Category 6A channel requirements. The cable uses copper conductors, gold-plated contacts and a molded boot with kink protection, strain relief and latch protection. The transparent yellow connector makes Category 6A identification simple. The sheath is LSZH (Low Smoke Zero Halogen) for improved fire behavior and low smoke emissions, and the cable is PoE+ ready.

Advantages

The DIGITUS Cat 6A patch cord provides certified Category 6A performance up to 500 MHz including NEXT characteristics, ensuring reliable high-speed data transmission. Its LSZH jacket reduces hazardous smoke and halogen release in case of fire. The molded boots include strain relief and latch protection to reduce connector damage, while copper conductors and gold-plated contacts provide stable conductivity. The transparent yellow plug allows quick visual identification of Cat 6A cabling.

Suitable for

• Structured Ethernet networks requiring Cat 6A performance
• High-bandwidth applications and PoE+ devices
• Office and data center patching where LSZH jacket is required
• Connections between switches, patch panels and workstations

Key specifications

• Standard: ISO/IEC 11801, DIN EN 50173 Category 6A
• Performance: up to 500 MHz (Class EA)
• Topology: U/UTP (unshielded twisted pair)
• Length: 10 m
• Connectors: RJ-45 — RJ-45, gold-plated contacts
• Conductor material: Copper (Cu)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Colour: Grey (transparent yellow plug for Cat 6A identification)
• PoE: PoE+ ready

How to use

Connect one RJ-45 plug to a network switch or patch panel and the other RJ-45 plug to the target device or patch point. Ensure connectors are fully inserted until the latch engages; the molded boot and strain relief help maintain a secure connection. Use proper cable management to avoid sharp bends and excessive tension that could affect performance. The transparent yellow plug helps confirm Category 6A cabling during installation and maintenance.

Recommendations

For best results, route the cable away from strong electromagnetic sources and avoid tight bends smaller than the recommended bend radius. Verify channel performance with appropriate test equipment after installation to confirm compliance with Cat 6A specifications.
