Cable de red Digitus CAT 6A U/UTP slim patch RJ-45 Cat6a 1m gris

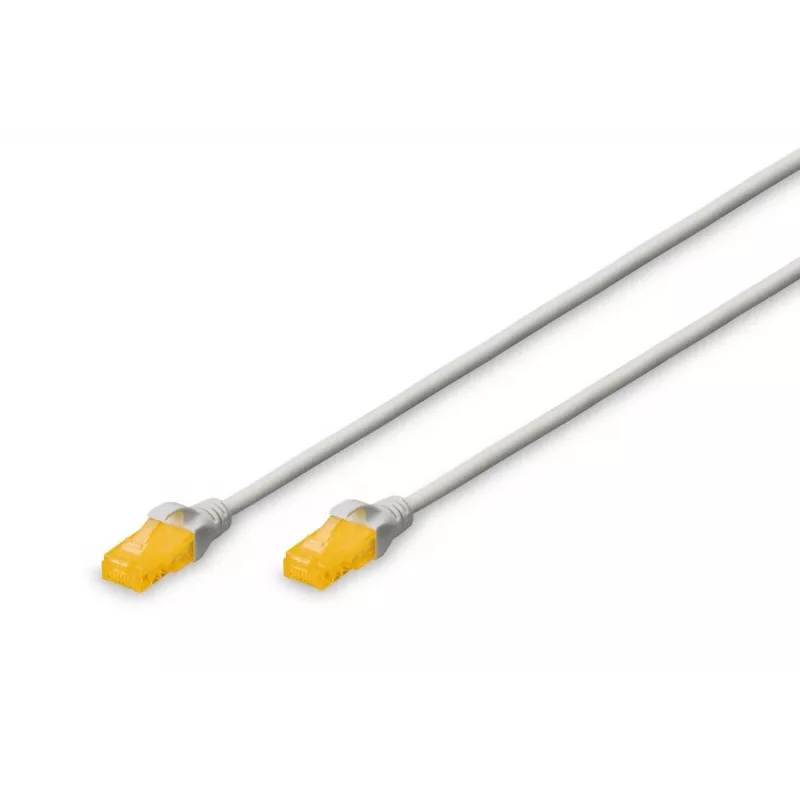

The DIGITUS Network Cable CAT 6A U/UTP Slim Patch Cord (1 m, grey) enables flexible and space-saving cabling for high-speed network connections. Its slim outer diameter and flexible LSZH sheath support versatile routing in confined spaces while meeting Category 6A performance up to 500 MHz. The cord is fitted with RJ-45 connectors on both ends and a transparent yellow plug for easy identification of Cat 6A.

Advantages

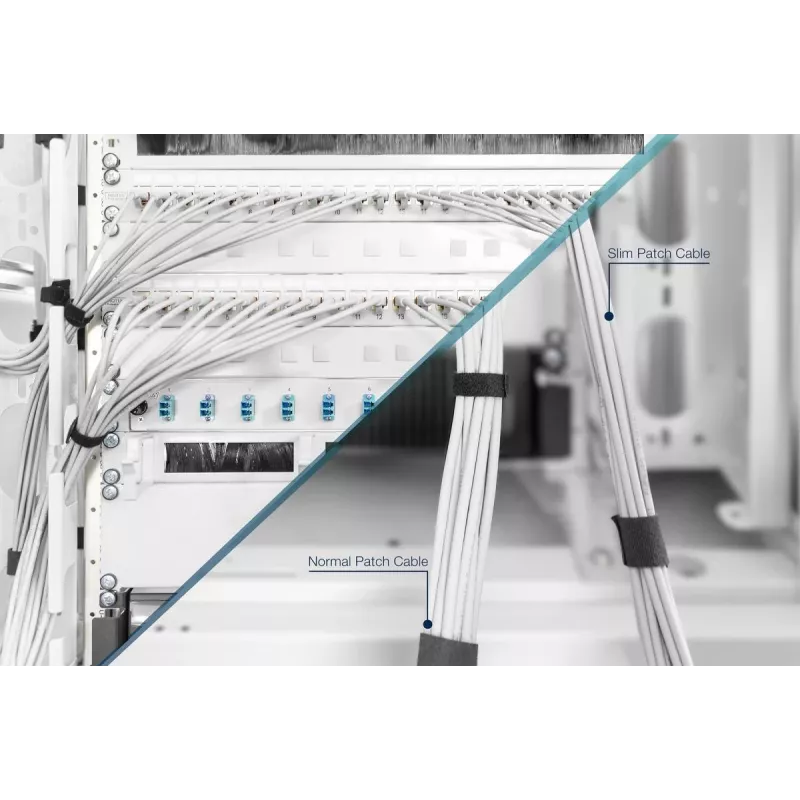

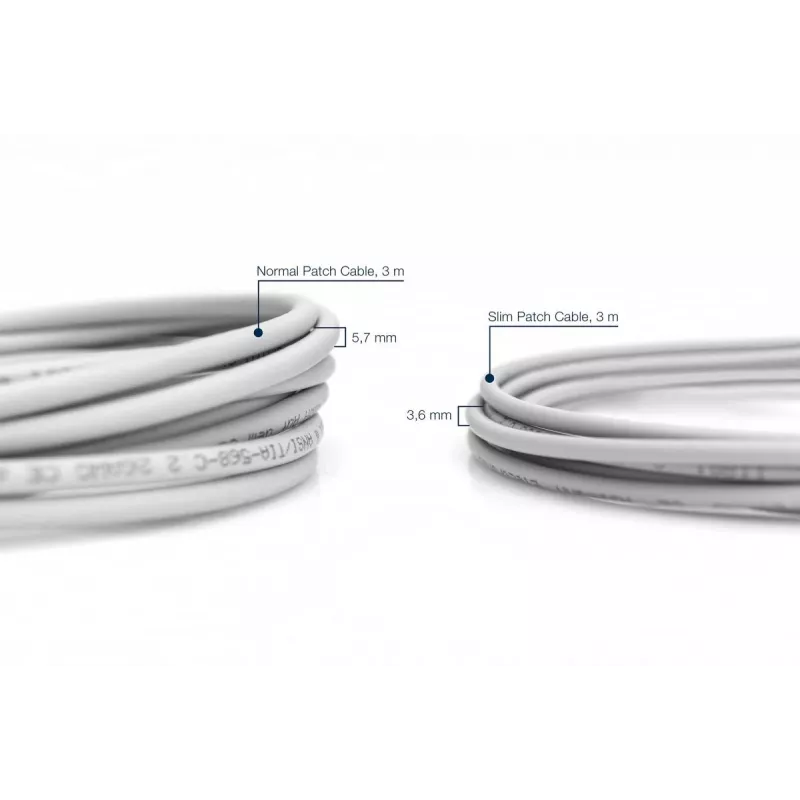

The slim 3.65 mm outer diameter and flexible sheath allow installation in tight cable runs and high-density patch panels. The LSZH (low smoke zero halogen) outer sheath improves fire behaviour and reduces smoke emission. Conductors are made of copper for reliable signal transmission. The product is manufactured and tested to ISO/IEC 11801 and DIN EN 50173 Category 6A specifications, with performance characteristics (including NEXT) verified up to 500 MHz. Each connector has a molded boot with kink protection, strain relief and a latch protection to prevent lever breakage.

Suitable for

• High-speed Ethernet and data networks requiring Cat 6A performance
• Dense cabling environments and cramped rack or patch-panel installations
• Indoor installations where low smoke and halogen-free materials are required
• Short patch connections between switches, patch panels and network devices (1 m length)

Key specifications

• Standard: Category 6A (Class EA), tested up to 500 MHz
• Cable type: U/UTP slim patch cord
• Outer diameter: 3.65 mm (slim)
• Sheath: LSZH (low smoke zero halogen)
• Conductor: Copper (Cu)
• Connectors: RJ-45 — both ends; transparent yellow plug (Cat 6A identification)
• Length: 1 m
• Colour: Grey

How to use

Connect one RJ-45 plug to your network switch or patch panel and the other RJ-45 plug to the target device or panel port. Ensure connectors are fully inserted until the latch engages and verify link status on network devices. Route the slim cable through available cable management channels or tie points, avoiding sharp bends to maintain signal integrity. For installations in risers or public areas, follow local codes for LSZH cable placement.

Recommendations

Use the slim patch cord for short, high-density connections (1 m) where space is limited. Avoid excessive bending near the connector; maintain gentle bend radii and secure cables with appropriate cable management to preserve Category 6A performance.
