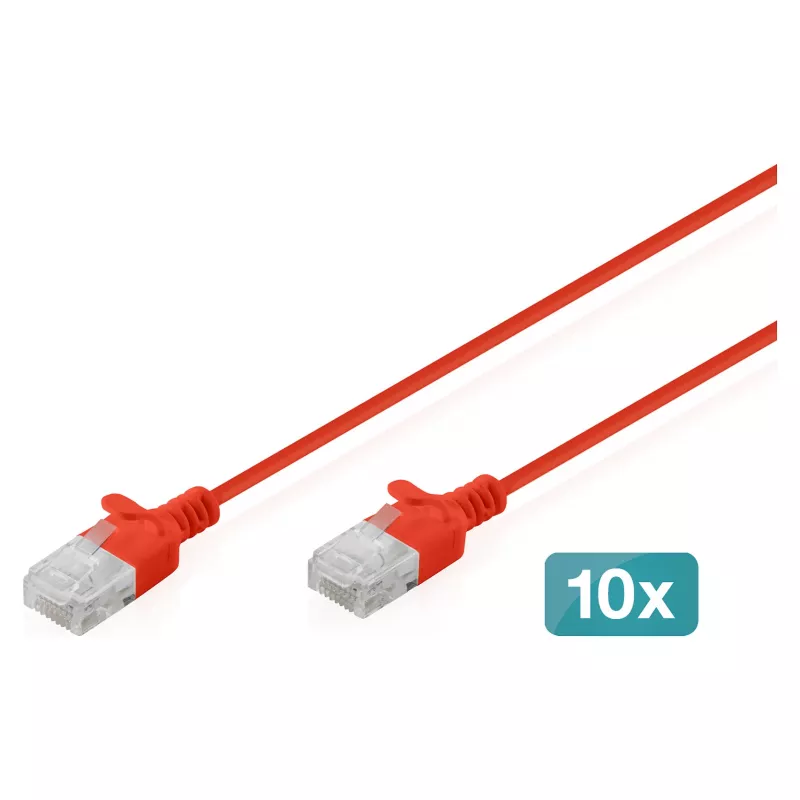

Cable de red DIGITUS CAT6 U-UTP fino, 0,3 m, rojo, pack de 10

DIGITUS CAT6 U-UTP Slim 0.3 m patch cable set contains ten red unshielded twisted-pair cables designed for short interconnects in structured cabling and Gigabit Ethernet installations. Each cable features a slim 2.7 mm outer diameter and a flexible jacket, making it suitable for high-density patch panels, switches and routers in office or home networks. The cables use stranded AWG 32/7 bare copper conductors, support transmission frequencies up to 250 MHz and are manufactured to recognized CAT6 cabling standards.

Advantages

The reduced diameter and flexible construction allow neat routing in confined spaces and behind panels while preserving mechanical durability thanks to molded strain relief and locking lever protection. The cables support Gigabit Ethernet speeds (up to 1 Gbit/s) and PoE/PoE+ power delivery with pure copper conductors. LSZH outer jacket and compliance with international cabling standards ensure reliable electrical performance and safety characteristics for typical office and home environments.

Suitable for

• Short patch connections in high-density patch panels and network racks
• Interconnects between switches, routers and patch panels
• Home and small office network cabling
• PoE and PoE+ connected devices such as access points and VoIP phones

Key specifications

• Conductor: stranded bare copper AWG 32/7
• Transmission performance: up to 1 Gbit/s at 250 MHz
• Cable outer diameter: approximately 2.7 mm ± 0.15 mm
• Insulation: HD-PE (high-density polyethylene)
• Outer jacket material: LSZH (Low Smoke Zero Halogen)

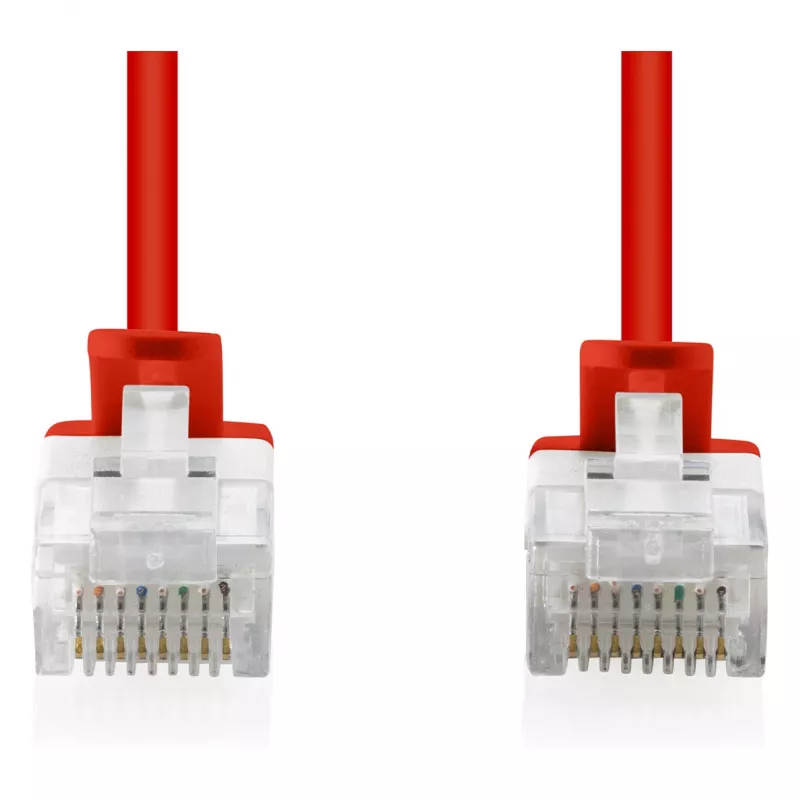

• Plug type: RJ45 with molded anti-kink sleeve and strain relief
• Bending radius: 15× outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke standards: IEC 60332-1, IEC 61034
• Typical supported standards: IEEE 802.3 (10/100/1000BASE-T)
• Service life: approx. 750 mating cycles
• Pack quantity: 10 cables, length 0.3 m each

How to use

Connect each RJ45 plug to the corresponding port on switches, routers or patch panels following the EIA/TIA 568B pin assignment for consistent wiring. Route the slim cables through cable management channels or behind patch panels to minimize clutter and avoid sharp bends; respect the recommended bending radius. The molded strain relief protects the locking tab during insertion and removal. Use these 0.3 m cables for short patching tasks where minimal slack and high port density are required.

Recommendations

For best performance, avoid kinking the cable and maintain the specified bending radius. Keep cable runs clear of strong electromagnetic interference sources and do not exceed the intended short-link usage; use full-length CAT6 cables for longer permanent links. Inspect connectors before use and replace any cable showing visible damage.
