Cable de red DIGITUS CAT6 U-UTP fino, 0,5 m, verde, cantidad por paquete 10

DIGITUS CAT6 U-UTP Slim patch cable set: ten green 0.5 m slim Ethernet patch leads designed for short-distance connections in racks, patch panels and workstations. These CAT6 U-UTP cables support Gigabit Ethernet with transmission frequencies up to 250 MHz and use stranded AWG 32/7 bare copper conductors in an unshielded twisted pair structure. The reduced outer diameter and flexible LSZH jacket make the cables suitable for installations with limited space and high cabling density, while molded strain relief and locking lever protection reduce the risk of connector damage.

Advantages

The slim 2.7 mm diameter and flexible jacket provide easier routing in crowded cable trays, patch panels and behind desks, minimizing bend radius and saving space. Certified to relevant international cabling standards, the cables deliver reliable performance for Gigabit Ethernet and support PoE and PoE+ with pure copper conductors. Molded anti-kink sleeves and locking lever protection improve durability under frequent handling and re-patching.

Suitable for

• Short patch connections in server racks and network cabinets
• Patch panels and structured cabling in offices
• Workstation and desktop connections where space is limited
• Home networks requiring compact, colour-coded patching
• Environments with high cabling density and frequent reconfiguration

Key specifications

• Cable category: CAT6, U-UTP (unshielded twisted pair)
• Length: 0.5 m
• Quantity: pack of 10
• Color: green
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Conductor: stranded AWG 32/7 bare copper
• Insulation: HD-PE (high-density polyethylene)
• Transmission frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (Gigabit Ethernet)
• Bending radius: 15× outer diameter

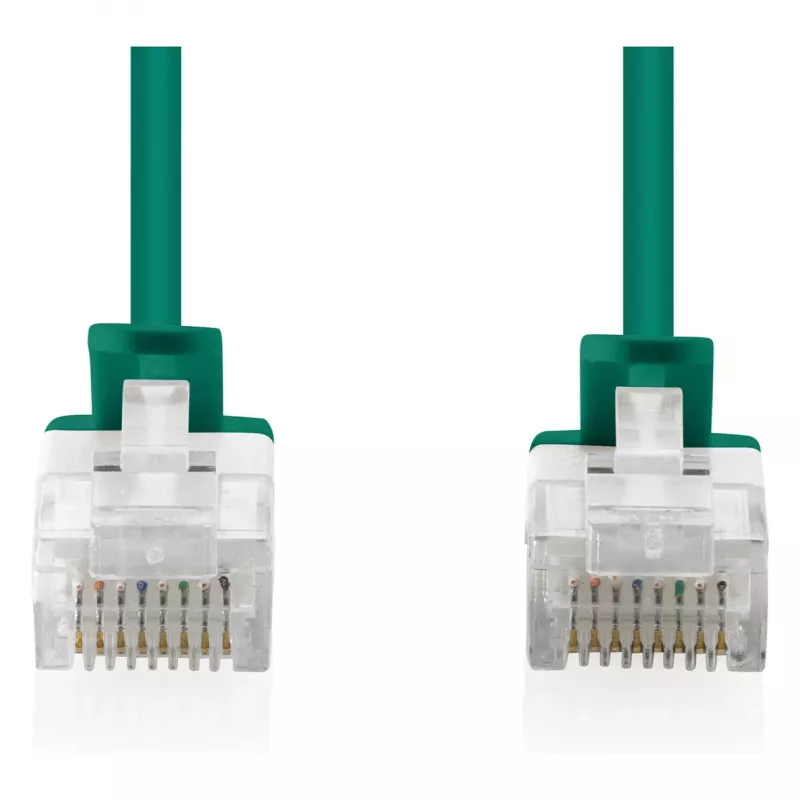

• Plug: RJ45 with molded anti-kink sleeve and strain relief
• Cabling standard: EIA/TIA 568B, PIN assignment 1:1
• Operating temperature: -20 °C to +60 °C
• Flame retardancy: IEC 60332-1; smoke emission: IEC 61034
• Typical applications: 10BASE-T; 100BASE-T; 1000BASE-T
• Service life: 750 mating cycles
• Packaging: DIGITUS hangtag

How to use

Connect each RJ45 plug to the corresponding port on network devices, patch panels or wall outlets following the EIA/TIA 568B wiring scheme and ensure the locking lever is engaged. Route the slim cables through cable management channels or behind equipment, observing the specified bending radius to avoid excessive stress on the conductors. For PoE applications, verify device compatibility and power class before connecting.

Recommendations

Use these slim patch cables where short, flexible connections and high port density are required; avoid tight bends below the recommended bending radius and check connectors periodically for wear if cables are frequently re-patched.
