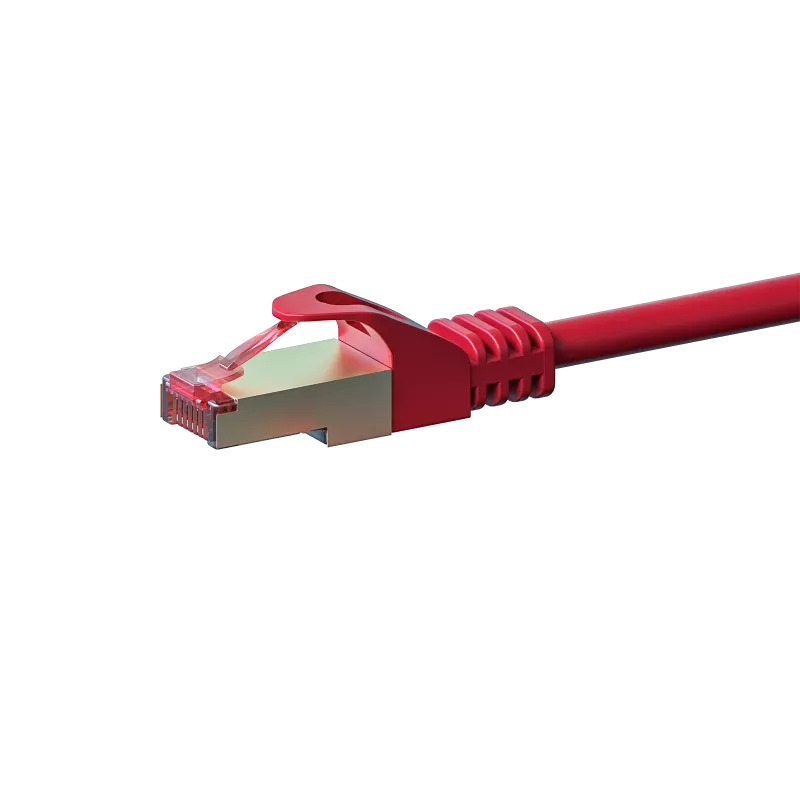

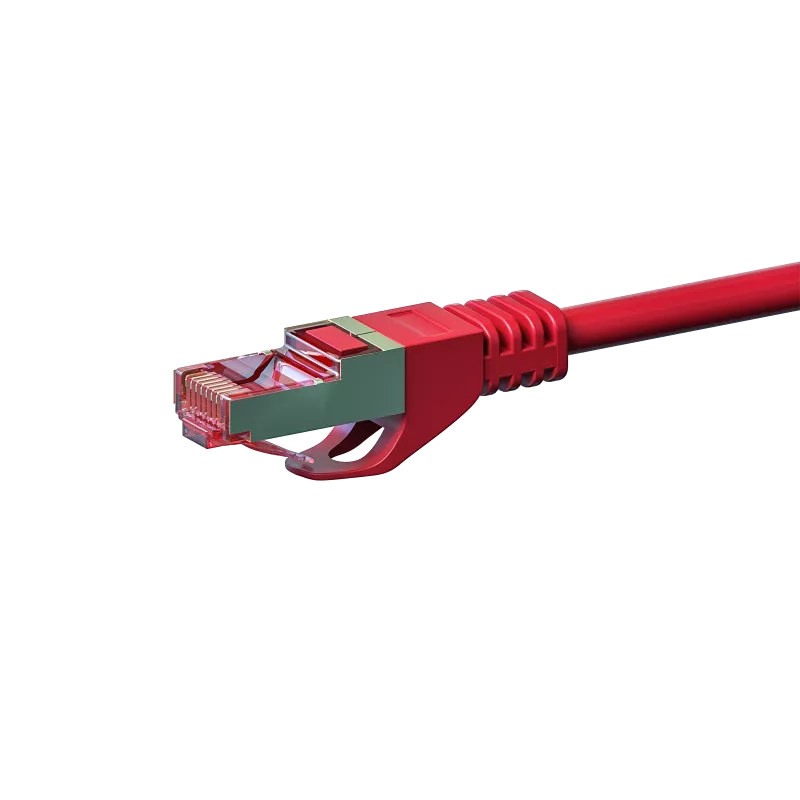

Cable de red DSIT CAT 6 S/FTP LSOH 30m rojo (DC-S65-300)

For installations where fire safety and signal integrity are non-negotiable, this DSIT CAT 6 cable pairs S/FTP shielding with a low-smoke zero-halogen jacket. Each of the four twisted pairs is individually foil-wrapped, and an overall braided screen suppresses alien crosstalk in dense patch panels or cable trays. The 30-metre length reaches across server rooms, between floors, or from a wall outlet to a workstation without a coupler.

Highlights

• 10 Gigabit Ethernet support up to 55 metres (10GBASE-T)
• S/FTP construction: per-pair foil plus overall braid
• LSOH jacket emits low smoke and no halogen gases in fire
• Stranded copper conductors (AWG 26/7) for flexibility
• 250 MHz bandwidth, backward compatible with Cat5e/Cat5
• Red jacket for quick identification in crowded racks

In daily use

The cable arrives with pre-moulded RJ45 plugs and a snagless boot that protects the locking tab during pulls through conduits. Because the conductors are stranded rather than solid, the cable tolerates repeated bending and re-routing without performance loss. The LSOH jacket stays pliable in cool server rooms and does not release corrosive fumes if exposed to heat, making it suitable for public buildings, hospitals, and schools where safety codes demand halogen-free cabling.

Full specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 30 m
• Colour: Red
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor type: Stranded
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Outer diameter: approx. 6.2 mm
• Fire safety standard: IEC 60332-1
• Certifications: RoHS, CE

Final note

Choose this cable when you need reliable 10G performance over longer runs without compromising on fire safety. The red LSOH jacket and robust shielding make it a practical choice for professional network deployments.
