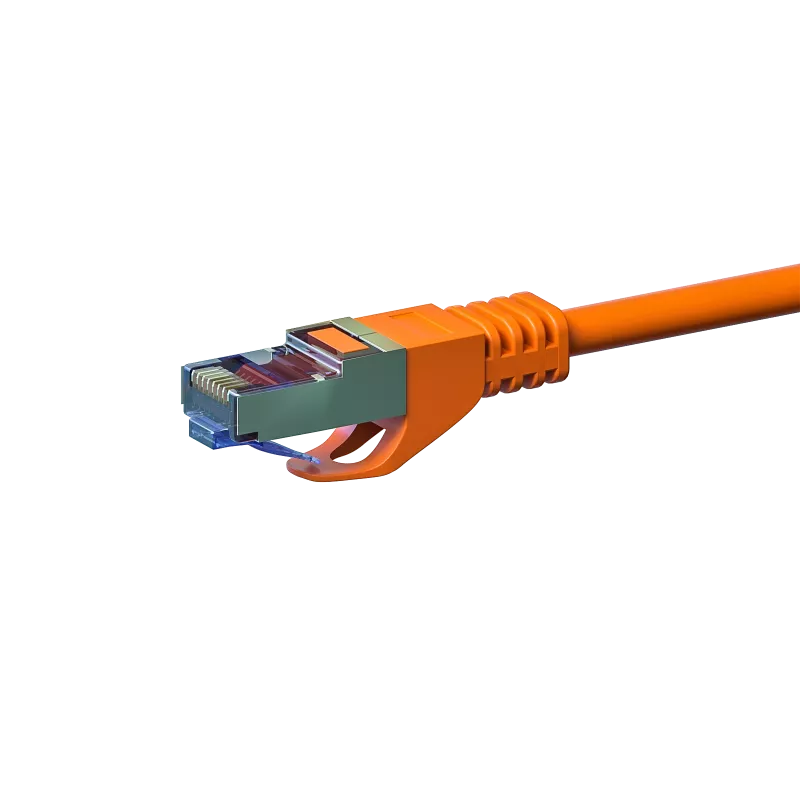

Cable de red DSIT CAT 6a LSOH - S/FTP - 50 m - Naranja (DC-6A6-500)

This 50-metre Cat 6a installation cable stands out with its S/FTP shielding, combining an overall braided screen with individual foil around each pair to suppress alien crosstalk in dense cable runs. The LSOH jacket emits low smoke and zero halogen, making it suitable for indoor areas where fire safety is a priority.

Highlights

• Category 6a performance up to 500 MHz bandwidth
• S/FTP shielding: braided screen plus per-pair foil
• LSOH (Low Smoke Zero Halogen) orange jacket
• Solid copper conductors, 23 AWG, 4 twisted pairs
• Supports 10 Gigabit Ethernet (10GBASE-T)

In daily use

Installers can pull this bulk cable through conduits, trays, and risers without worrying about toxic fumes in case of fire. The 50-metre length suits floor-to-floor links or long horizontal runs in offices and data centres. Its 100 Ohm impedance and compliance with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 ensure compatibility with standard network equipment.

Full specifications

• Cable type: Network installation cable
• Category: Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 50 m
• Colour: Orange
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor material: Copper
• Conductor type: Solid
• Conductor gauge: 23 AWG
• Number of pairs: 4
• Impedance: 100 Ohm
• Outer diameter: 7.5 mm
• Operating temperature: -20°C to +60°C
• Connectors: None (bulk cable)

Final note

A reliable choice for structured cabling where performance and safety matter.
