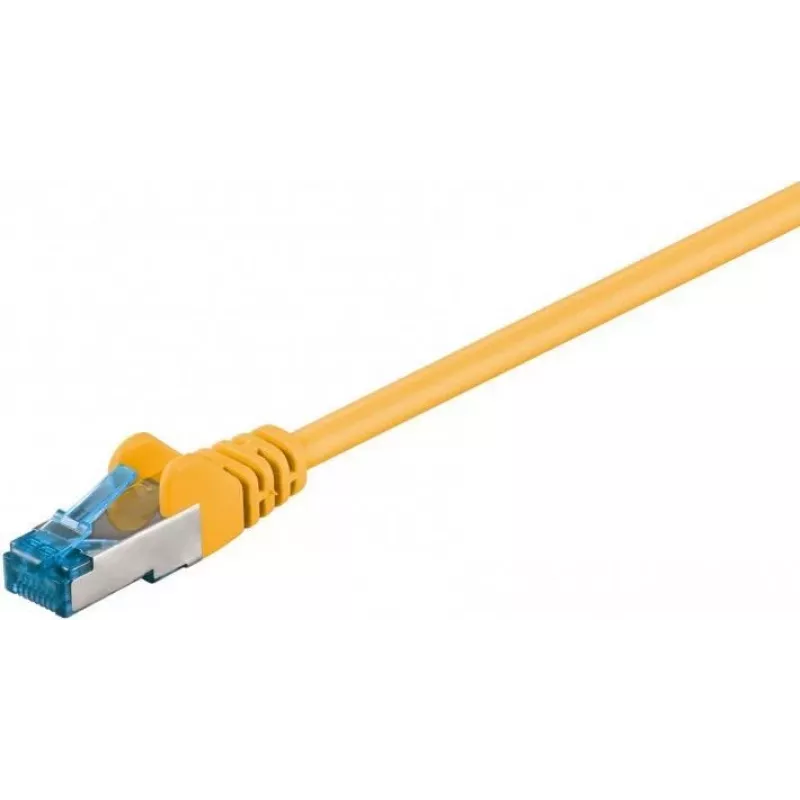

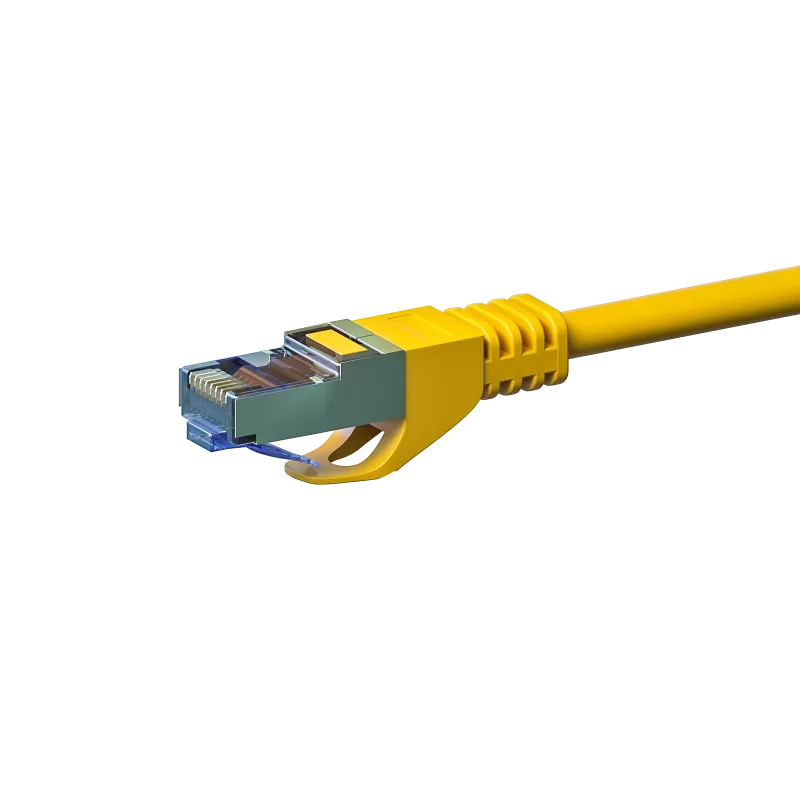

Cable de red DSIT CAT 6a S/FTP LSOH, 1,5 m, amarillo

This CAT 6a network patch cable delivers up to 10 Gigabit Ethernet with a 500 MHz bandwidth, making it ideal for high-speed data transfer in demanding environments. The S/FTP shielding (screened and foiled twisted pairs) ensures excellent protection against electromagnetic interference and crosstalk, while the LSOH (Low Smoke Zero Halogen) jacket enhances safety by emitting low smoke and no toxic halogens in case of fire. With a length of 1.5 meters and a vibrant yellow color, it provides reliable connectivity for short-distance links in data centers, offices, and home networks.

Advantages

This cable offers superior performance and safety. The pure copper conductors (23 AWG) with gold-plated RJ45 connectors (50µ) ensure low resistance and corrosion resistance for stable connections. The stranded construction provides flexibility for easy routing, and the cable supports Power over Ethernet (PoE), allowing both data and power over a single cable. The LSOH jacket is environmentally friendly and meets strict fire safety regulations, making it suitable for public buildings and confined spaces.

Suitable for

• Data centers and server rooms requiring high-speed 10G connections
• Office networks with VoIP phones, video conferencing, and cloud applications
• Home networks for gaming, 4K streaming, and smart home devices
• Industrial environments where EMI/RFI interference is a concern
• Installations in public areas where low smoke and halogen-free cables are mandatory

Key specifications

• Category: CAT 6a (Class EA) with 500 MHz bandwidth
• Shielding: S/FTP (braided screen and foil per pair)
• Length: 1.5 meters
• Color: Yellow
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ)
• Conductor: Pure copper (OFC), 23 AWG, stranded
• Data rate: Up to 10 Gbps (10GBASE-T)
• Impedance: 100 Ohm
• Outer diameter: approx. 6.5 mm
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, CE

Recommendations

For optimal performance, pair this cable with CAT 6a shielded patch panels and keystone jacks. Ensure proper grounding of the shielded connectors to maximize EMI protection. Ideal for structured cabling systems that require future-proofing for 10G networks.
