Cable de red DSIT Danicom CAT7 S/FTP 100m conductor macizo LSZH Dca naranja

For installations that demand uncompromising signal integrity and fire safety, the DSIT Danicom CAT7 S/FTP cable stands apart from standard patch leads. Its solid-core conductors and individual pair shielding make it the go-to choice for permanent links in data centres, offices, and industrial environments where 10 Gigabit Ethernet must run reliably over long distances. The low-smoke zero-halogen jacket in high-visibility orange ensures compliance with modern building regulations while simplifying identification in dense cable trays.

Highlights

• CAT7 performance with 600 MHz bandwidth for 10GBASE-T up to 100 m
• S/FTP construction: braided screen plus foil-wrapped pairs for superior noise immunity
• Solid bare copper conductors (23 AWG) for minimal attenuation and stable PoE delivery
• LSZH jacket with Euroclass Dca fire rating — low smoke, zero halogen, safer for occupants

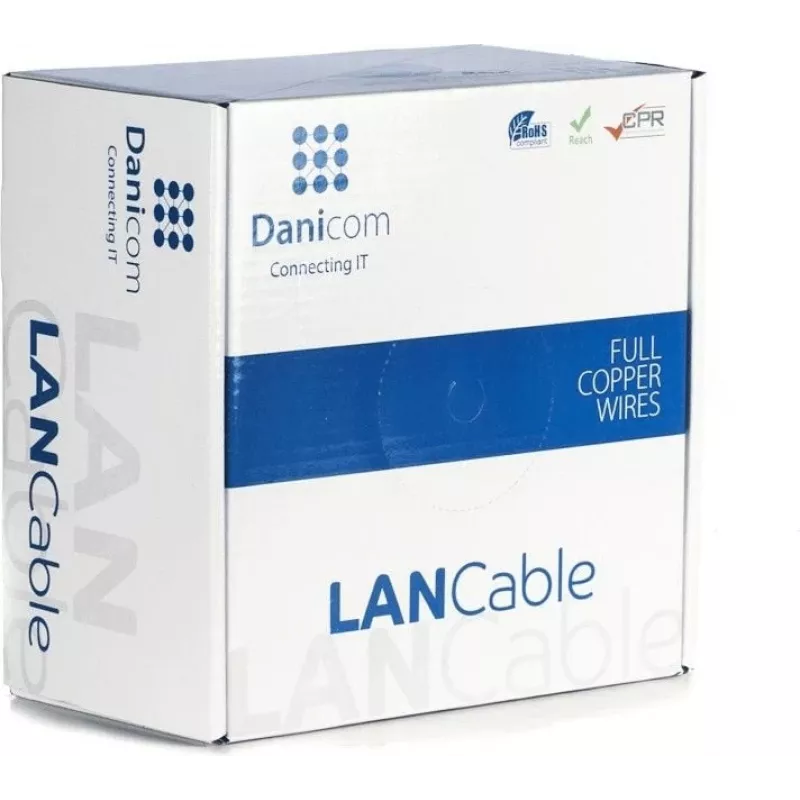

• Bulk cable on a 100 m reel, ideal for professional termination into keystone jacks or patch panels

In daily use

This cable is engineered for structured cabling projects where performance cannot be left to chance. The orange LSZH sheath is not just about looks — it signals compliance with strict fire safety codes in public buildings, schools, and hospitals. Because the conductors are solid rather than stranded, the cable holds its shape when punched down, making termination faster and more reliable. The S/FTP shielding rejects alien crosstalk from adjacent cables, a critical advantage in high-density racks where dozens of cables run side by side.

Full specifications

• Cable Category: CAT7
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Length: 100 m
• Conductor Type: Solid Core
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Euroclass Fire Rating: Dca
• Jacket Color: Orange
• Max Bandwidth: 600 MHz
• Max Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Conductor Material: Bare Copper
• AWG: 23 AWG
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• Application: Data Network Cabling
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Installation Environment: Indoor
• Connector Type: Bulk Cable (No Connectors)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +75°C
• Outer Diameter: Approx. 7.5 mm

Final note

Built for professionals who need reliable, code-compliant cabling, this DSIT Danicom CAT7 S/FTP cable delivers top-tier performance and safety in one orange reel.
