Cable de red EQUIP Cat.6A S/FTP para exterior, 15 m, negro, RJ-45 a RJ-45, 10 Gbit/s

The EQUIP Cat.6A S/FTP outdoor patch cable, 15 m in black with RJ-45 connectors at both ends, is a shielded network cable engineered for outdoor and exposed installations. Built to Cat6a specifications, it supports data transmission up to 10 000 Mbit/s (10 Gbps) and includes S/FTP (S‑STP) shielding to ensure stable performance in environments prone to electromagnetic interference and harsh weather.

Advantages

Robust S/FTP construction with foil and braid shielding and PIMF reduces crosstalk and EMI/RFI, improving signal integrity for high-bandwidth uses. The stranded bare copper conductors and molded boots with strain relief provide flexible but durable connections, while the LDPE outdoor jacket offers resistance to moisture, abrasion, UV and oil. The cable is RoHS compliant and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• Outdoor network links between buildings or equipment
• Surveillance and outdoor camera systems
• IoT devices and industrial network installations
• High-bandwidth applications such as video streaming, gaming and cloud services

Key specifications

• Length: 15 m
• Standard: Cat6a S/FTP (S-STP)

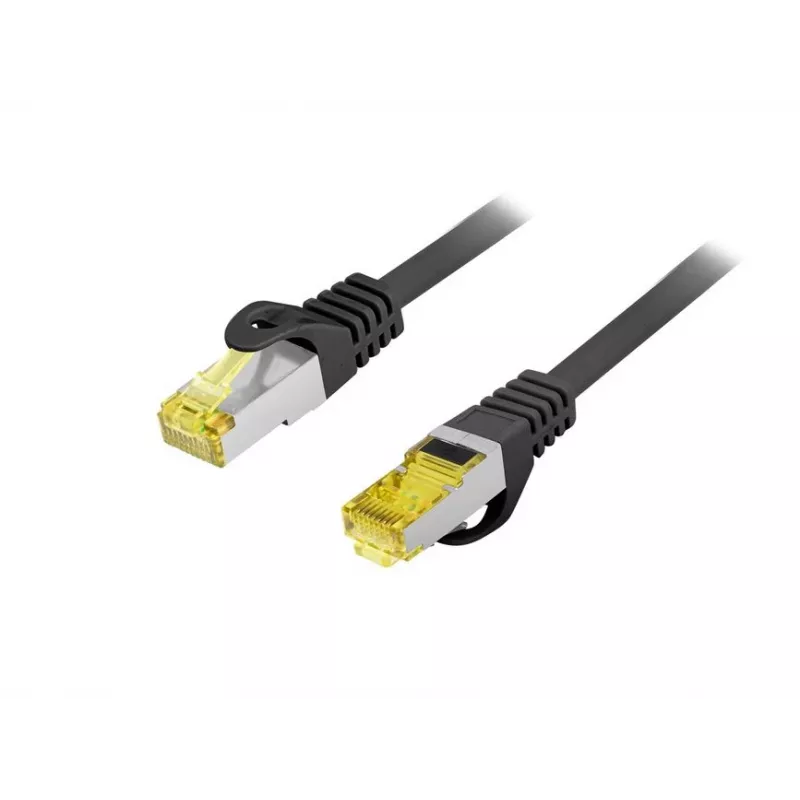

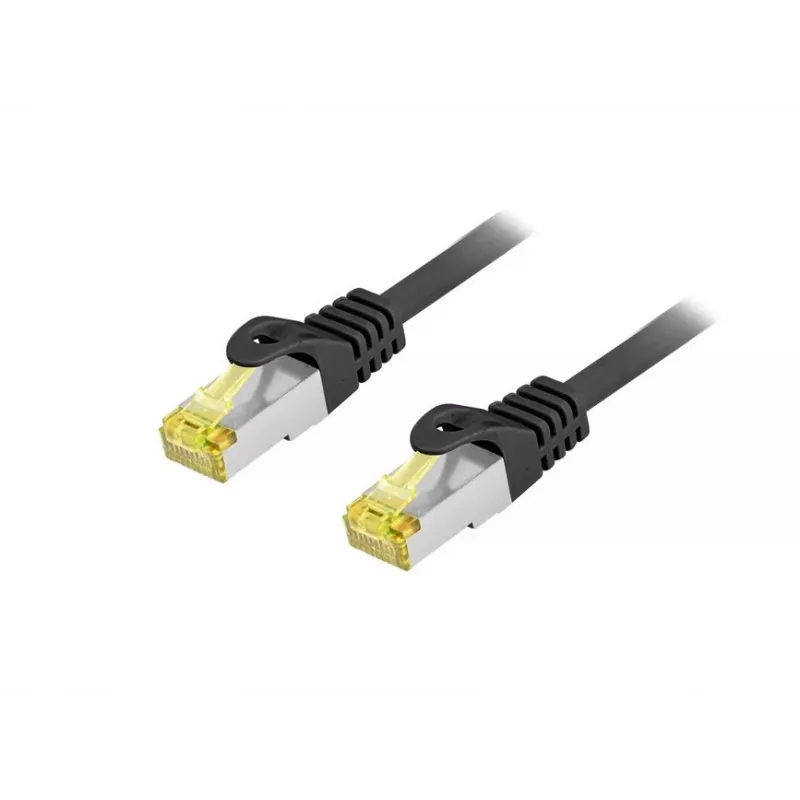

• Connectors: RJ-45 straight male – RJ-45 straight male
• Data rate: up to 10 000 Mbit/s (10 Gbps)
• Bandwidth: 500 MHz
• Conductor: stranded bare copper (4 x 2 AWG 27/7)
• Shielding: foil + braid, PIMF (pairs in metal foil)
• Jacket: LDPE for outdoor, black; anti-UV and oil resistant (IEC 60811-2-1)
• Ingress/chemical: splash water protected (IEC 60811-1-3)
• Operating temperature: -40 °C to 65 °C
• PoE/PoE+ compatible
• Compliance: RoHS, ISO/IEC 11801, EN 50173

How to use

Connect one RJ-45 straight male connector to your network device (switch, router, camera or PoE injector) and the other end to the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable along a secure path and avoid sharp bends or pinch points; use appropriate outdoor clips or conduits for protection and strain relief. For PoE use, verify power budget and device compatibility before deployment.

Recommendations

For reliable long-term outdoor performance, install the cable with UV-protected clips or conduit, avoid direct contact with chemical sources, and maintain bend radius greater than the cable diameter. Periodically inspect connector seals and jacket condition, especially after severe weather. Follow local installation and earthing practices for outdoor network cabling.
