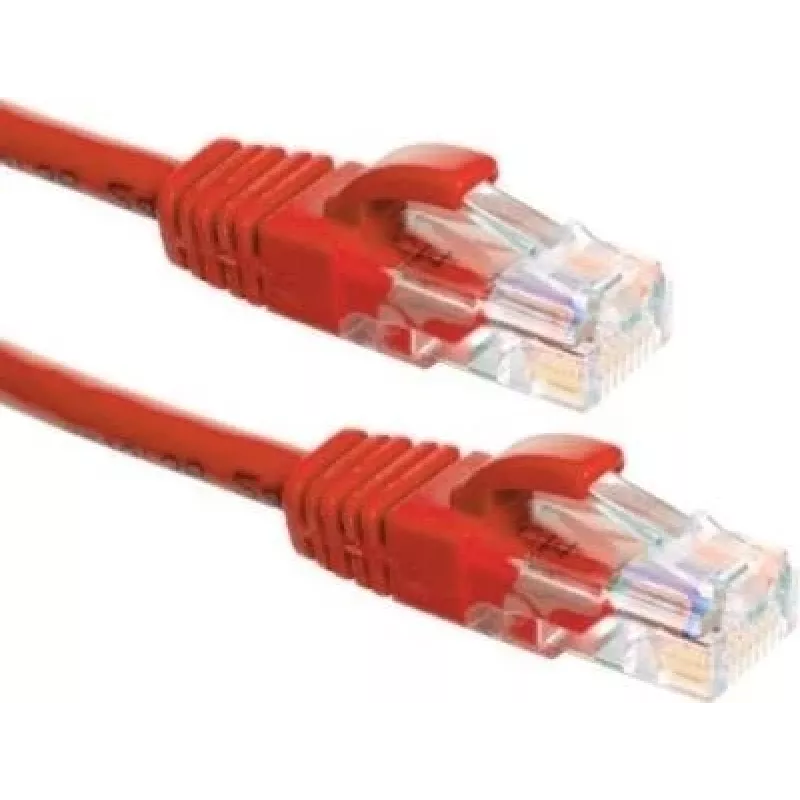

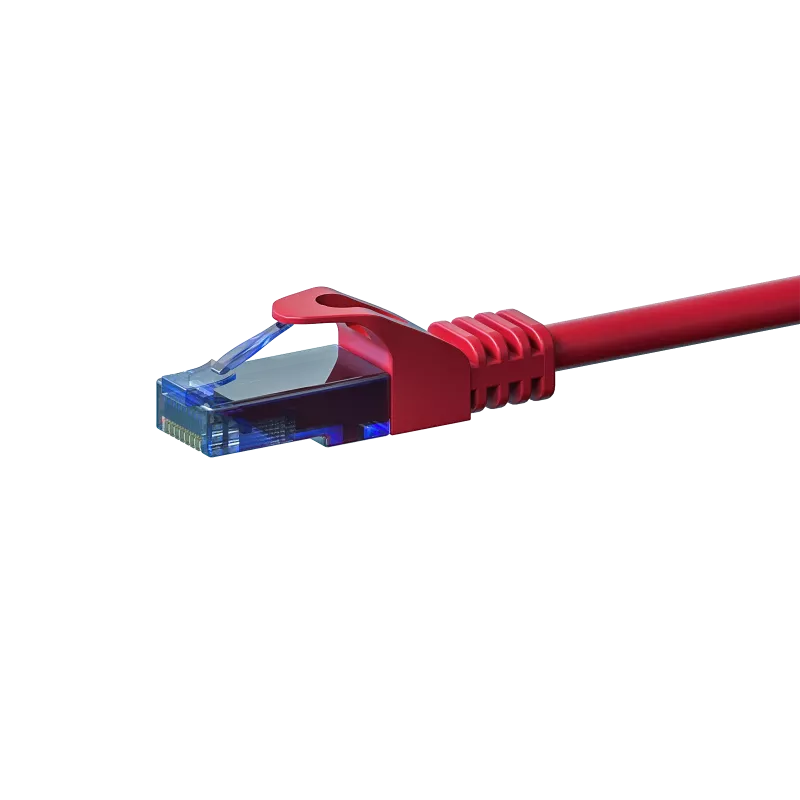

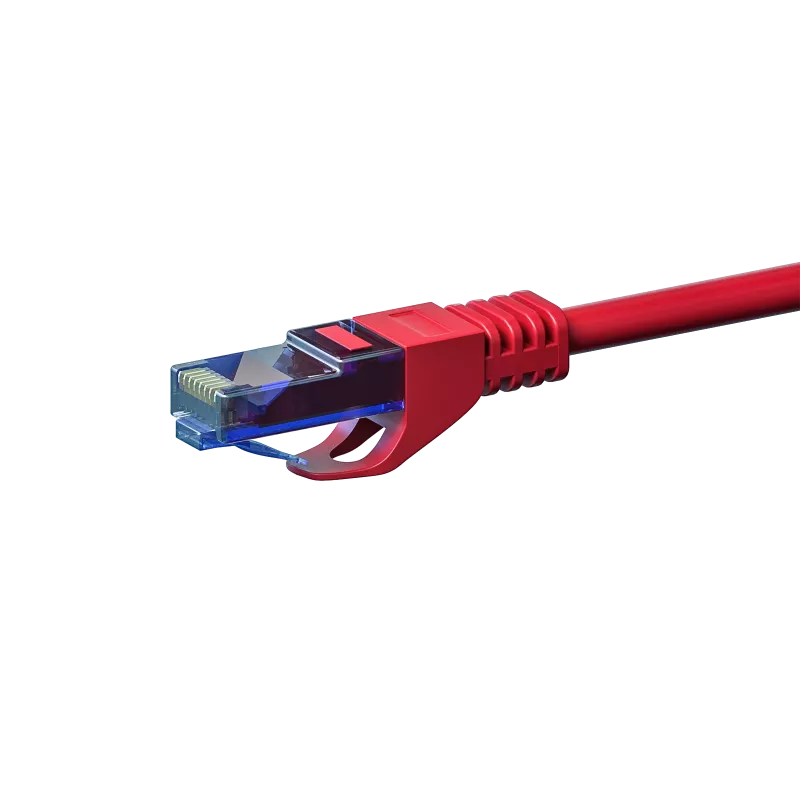

Cable de red Ethernet U/UTP CAT6a DSIT 100% cobre, 1 m, rojo

For installations where signal integrity cannot be compromised, this DSIT CAT6a patch cable delivers the headroom that ordinary Cat6 cables simply cannot. Built around 100% copper conductors—not the copper-clad aluminium found in budget alternatives—it sustains 10 Gigabit speeds up to 500 MHz over its full 1-metre length. The unshielded U/UTP construction keeps the cable flexible and easy to route, while the red PVC jacket makes it instantly identifiable in dense patch panels or behind desks.

Highlights

• True CAT6a performance: 10GBASE-T support with 500 MHz bandwidth for demanding network segments.
• 100% copper conductors (24 AWG stranded) ensure low resistance, superior PoE delivery, and long-term reliability.
• U/UTP unshielded design reduces weight and cost while maintaining excellent crosstalk performance in typical office environments.
• Gold-plated RJ45 connectors resist corrosion and provide consistent contact for years of re-patching.
• Red PVC jacket is flame-rated CM for safe use in walls and riser spaces.

In daily use

Whether you are connecting a high-speed NAS, a 10G switch, or a PoE++ access point, this cable eliminates the guesswork. The stranded conductors survive frequent bending and re-routing, and the snagless boots protect the locking tabs when pulling through cable managers. Because it is unshielded, it is lighter and more supple than shielded CAT6a, making it a favourite for patch panels where dozens of cables converge. The red colour also helps technicians trace connections quickly.

Full specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6a (Category 6a)
• Shielding Type: U/UTP (Unshielded / Unshielded Twisted Pair)
• Conductor Material: 100% Copper
• Length: 1 Meter
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Jacket Material: PVC (Polyvinyl Chloride)
• Conductor Gauge: 24 AWG
• Wiring Standard: TIA/EIA-568B
• Connector Plating: Gold-plated contacts
• Cable Construction: Stranded Twisted Pair
• Number of Pairs: 4 Pairs
• PoE Support: Yes (PoE, PoE+, PoE++)
• Compliance: RoHS, CE
• Application: LAN, Network, Data Center, Home Network
• Operating Temperature: -20°C to 60°C
• Flame Rating: CM (Communication Multipurpose)

Final note

DSIT's CAT6a U/UTP cable combines premium copper construction with practical flexibility, making it a reliable choice for high-speed networking in both professional and home environments.
