Cable de red flexible ACT FP770H CAT5E F/UTP LSZH verde 100 m

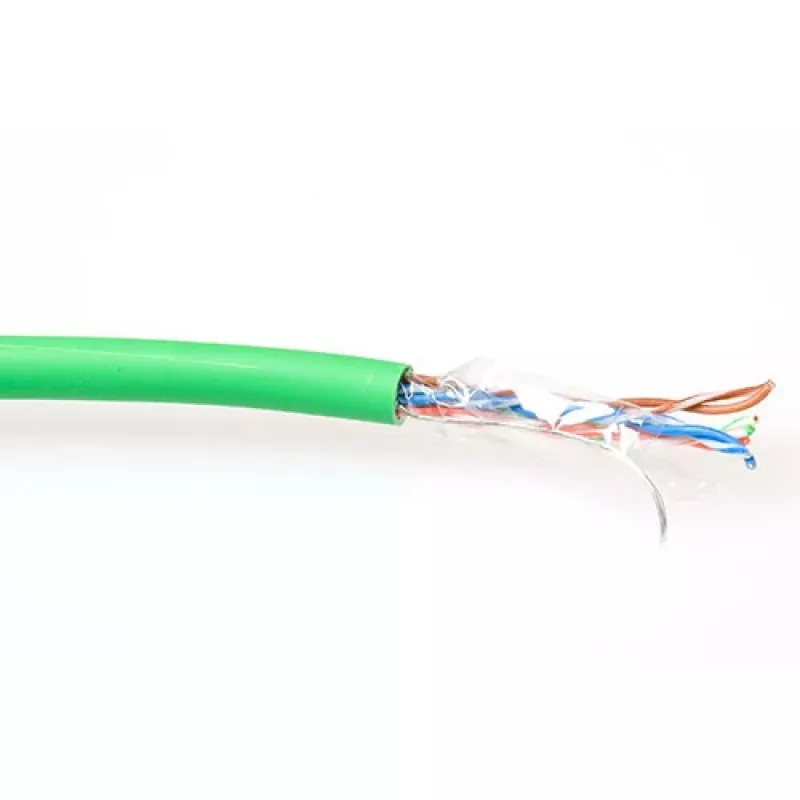

The ACT CAT5E F/UTP LSZH stranded patch cable (FP770H) is a 100 m green cable designed for indoor networking. Constructed with stranded copper conductors and an ALU foil shield, it delivers reliable data transmission with reduced electromagnetic interference. The LSZH outer sheath (Low Smoke Zero Halogen) minimizes toxic and corrosive gases in case of fire, making the cable suitable for installations where safety and low smoke emission are required.

Advantages

The cable combines CAT5E performance with F/UTP shielding to limit external interference while maintaining flexibility due to its stranded copper wires. The LSZH jacket provides enhanced safety in enclosed environments, and the 100 m spool length is convenient for longer runs or bulk installation needs. The green color enables easy identification in structured cabling systems.

Suitable for

• Indoor Ethernet and LAN cabling
• Structured cabling where low-smoke materials are required
• Patch panels, switches and wall outlets
• Installations needing flexible stranded cable for routing

Key specifications

• Cable type: CAT5E F/UTP (foil screened)
• Conductor: Stranded copper
• Pairs: Blue/White, Orange/White, Green/White, Brown/White
• Shielding: ALU foil
• Jacket material: LSZH (Low Smoke Zero Halogen) and PVC listed in technical data
• Length: 100 m
• Color: Green
• Brand / MPN / EAN: ACT / FP770H / 8716065136647

How to use

Measure and cut the required length from the spool, strip the outer jacket and prepare the individual pairs according to the connector type (e.g., RJ45). Follow standard termination procedures for F/UTP cables, ensuring the ALU foil shield is properly grounded where required. Test the terminated cable with a network tester to verify continuity and performance before deployment.

Recommendations

Use in indoor environments and vertical or horizontal structured cabling where low-smoke materials are preferred. Avoid prolonged outdoor exposure or direct burial; if outdoor use is necessary, select a cable rated for outdoor conditions. Ensure correct grounding of the foil shield for optimal interference protection.
