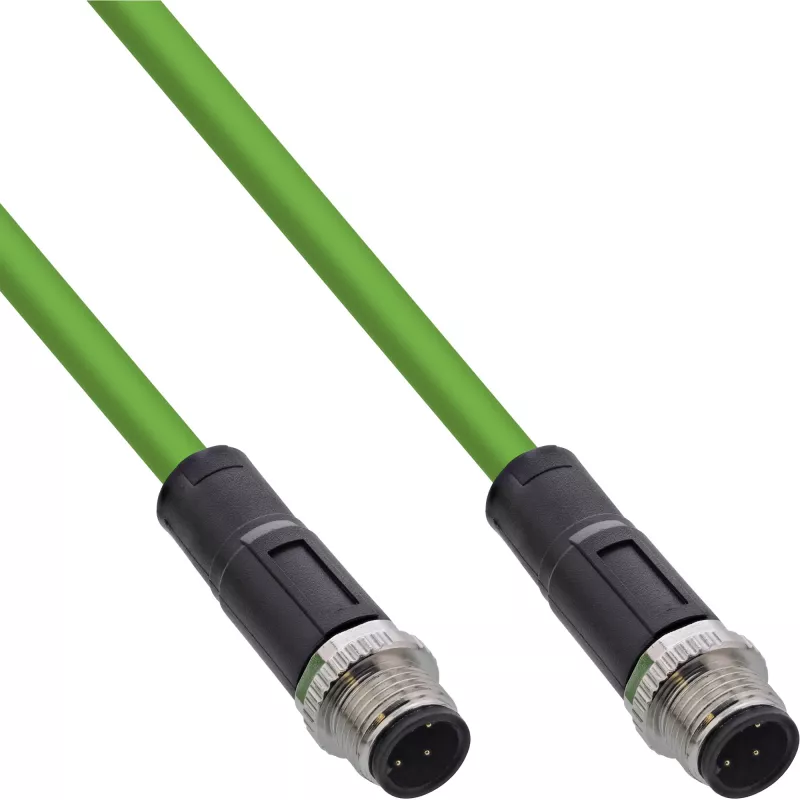

Cable de red industrial InLine, M12 4 pines codificación D macho/macho, PUR 1m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and damp environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded plug/connectorhas been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP

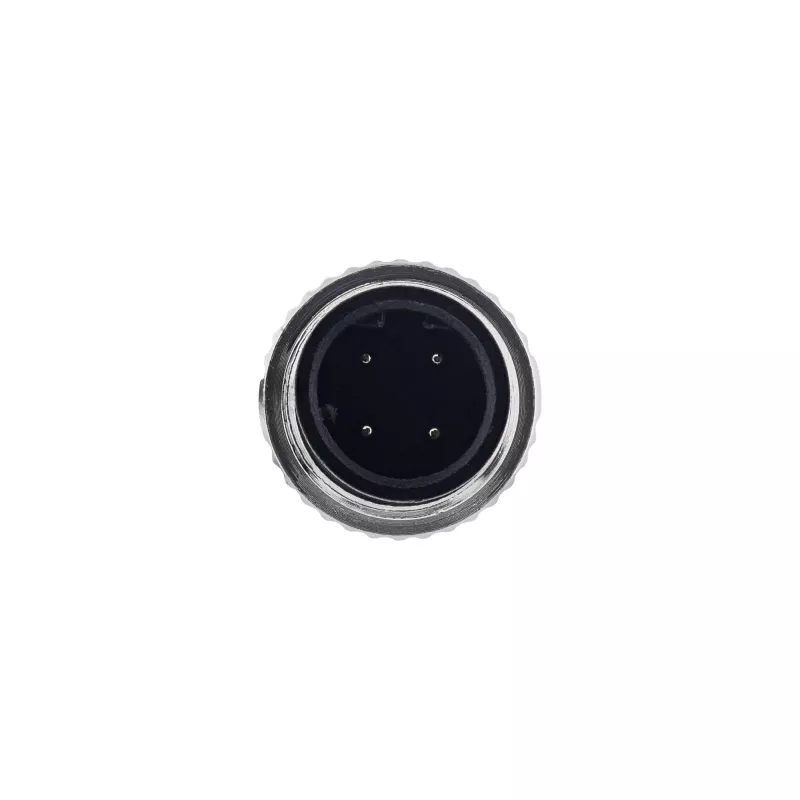

Connector type: M12 4-pin D-coded (IP67) to M12 4-pin D-coded (IP67)
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

InLine Industrial network cable, M12 4-pin D-coded male/male, PUR 1m. Cable length: 1 m, Connector 1: M12, Connector 2: M12. Package width: 175 mm, Package depth: 240 mm, Package height: 15 mm

How to use

Connect each M12 male connector to a corresponding M12 D-coded female port on equipment such as PLCs, sensors, switches or fieldbus modules. Ensure connectors are fully seated and, if applicable, screw the M12 coupling nut to secure the connection and maintain IP protection. Route the cable to avoid sharp edges and excessive bending radii; observe device manufacturer guidelines for connector orientation and installation space.

Recommendations

For reliable long-term operation, use this cable within its intended industrial environment, avoid mechanical stress beyond normal installation, and verify compatibility of M12 D-coded ports on connected devices. Store in original packaging or coiled without tight bends to maintain cable integrity.
