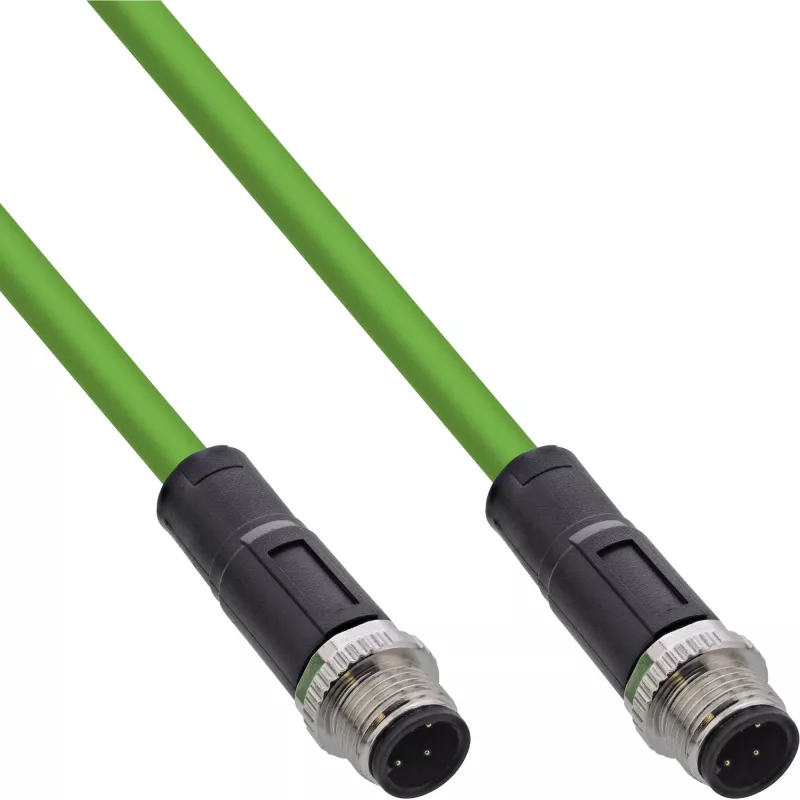

Cable de red industrial InLine, M12 4 polos codificado D conector macho/conector macho, PUR 15 m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and damp environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded plug/connectorhas been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP

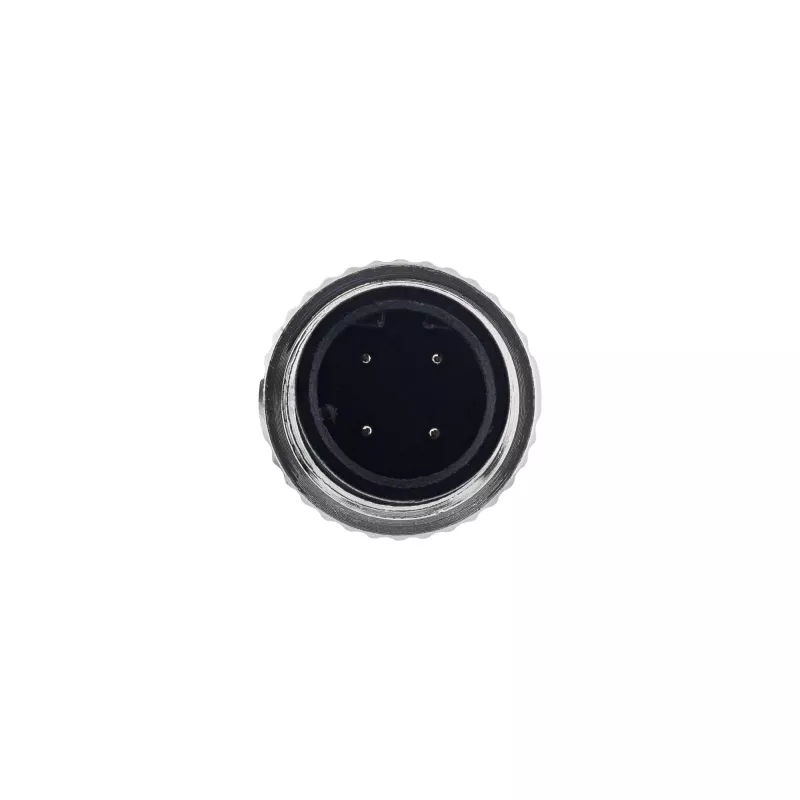

Connector type: M12 4-pin D-coded (IP67) to M12 4-pin D-coded (IP67)
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

InLine Industrial network cable, M12 4-pin D-coded male/male, PUR 15m. Cable length: 15 m, Connector 1: M12, Connector 2: M12. Package width: 305 mm, Package depth: 335 mm, Package height: 40 mm

How to use

Connect the M12 D-coded male connectors to corresponding M12 D-coded female ports on industrial Ethernet devices, ensuring correct alignment of the keyed connector. Route the cable to avoid sharp edges and excessive bending radii; secure it with appropriate clamps or cable ties if required. Test the network link after installation to confirm data transmission and proper shielding.

Recommendations

Use the cable in fixed or limited-movement installations where resistance to oils and mechanical wear is required. Avoid prolonged exposure to strong acids or solvents not compatible with PUR. For installations requiring different lengths or field-terminable ends, select an appropriate alternative product.
