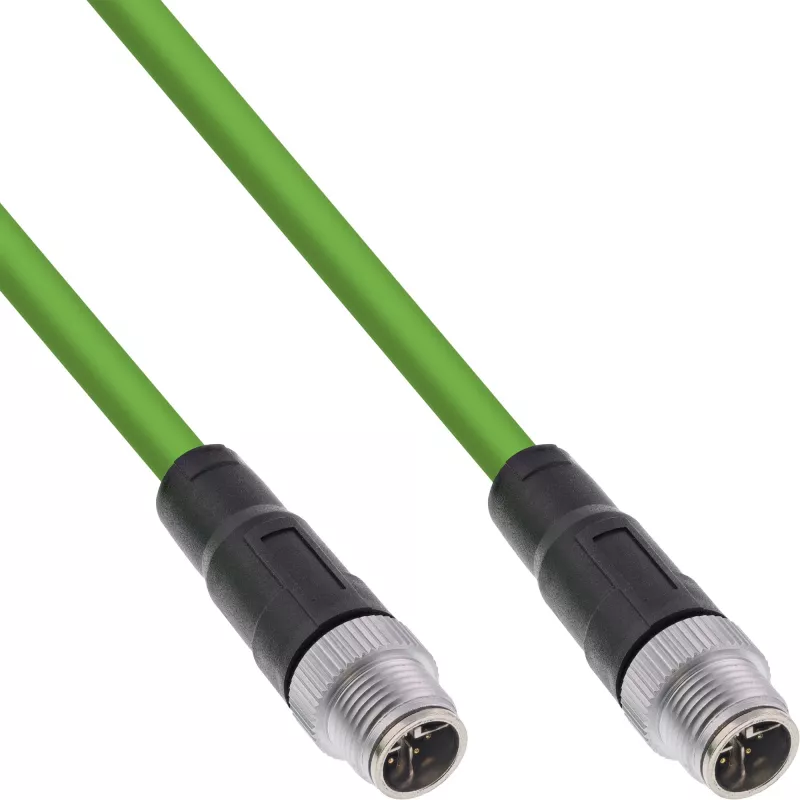

Cable de red industrial InLine, M12 8 pines codificado X conector macho/conector macho, Cat.6A PUR 20 m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug/connector, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production plants, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

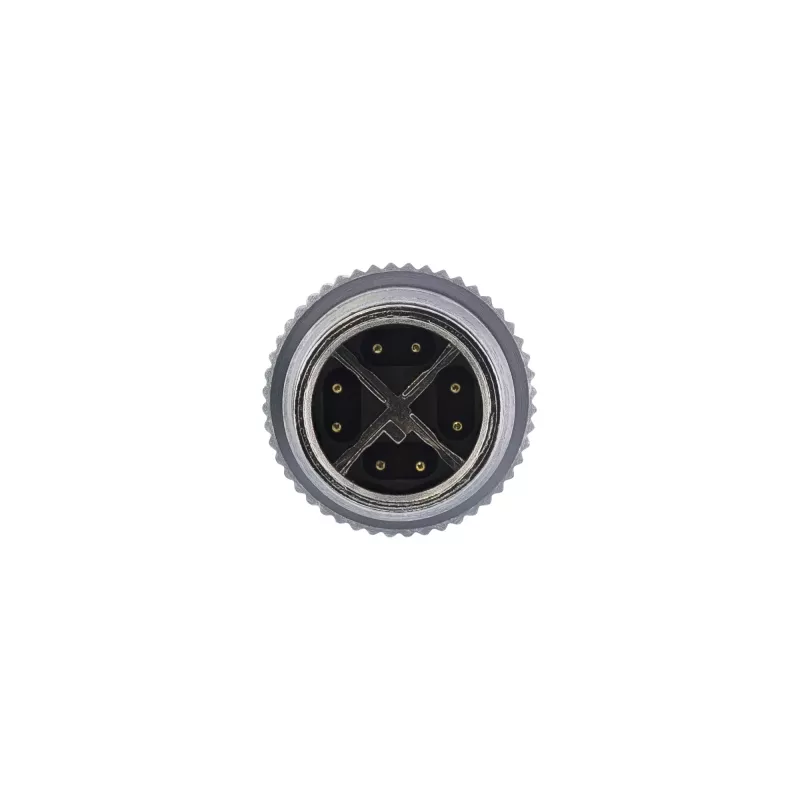

Connector type: M12 8-pin X-coded (IP67) to M12 8-pin D-coded (IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

InLine Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 20m. Cable length: 20 m, Connector 1: M12, Connector 2: M12. Package width: 305 mm, Package depth: 330 mm, Package height: 60 mm

How to use

Connect each M12 8-pin X-coded male connector to corresponding M12 X-coded female ports on your industrial devices or switches. Ensure connectors are fully engaged and tightened according to the equipment manufacturer's torque recommendations to maintain secure connections and IP sealing where applicable. Route the cable to avoid sharp edges, excessive bending radii or pinch points; the PUR jacket provides protection but correct routing extends service life.

Recommendations

For reliable operation, verify that connected devices support Cat.6A performance and M12 X-coded interfaces. Avoid running the cable parallel to high-voltage power lines for long distances and inspect connectors periodically for wear or contamination. Replace the cable if the PUR jacket shows significant cuts or abrasion.
