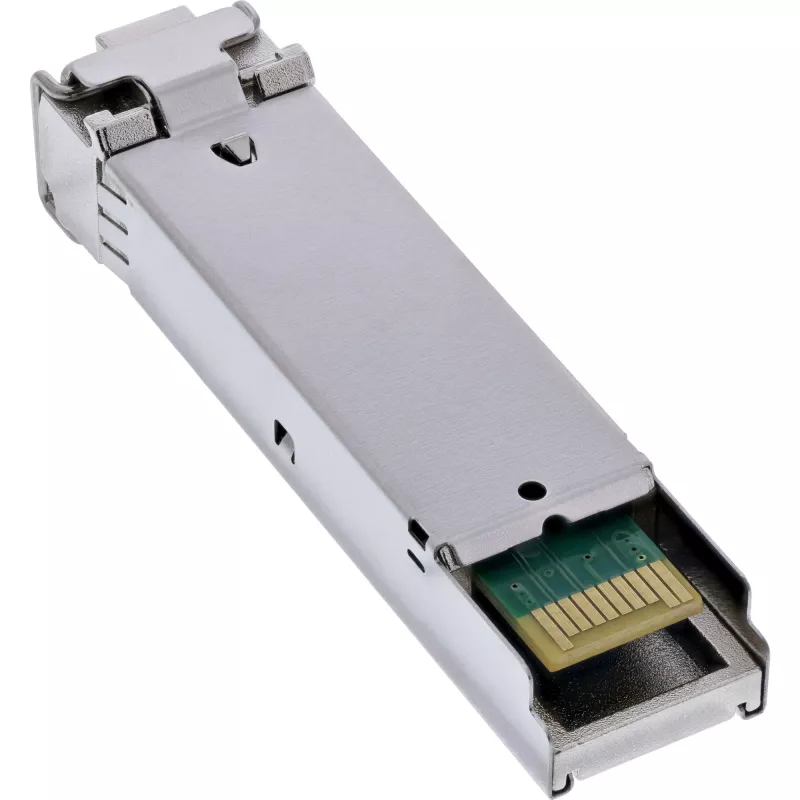

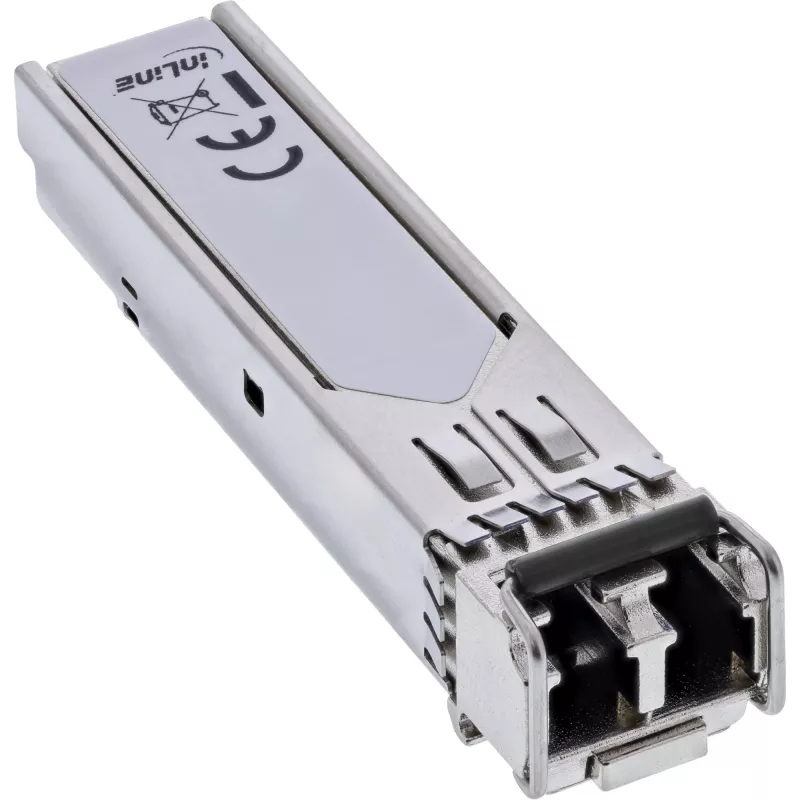

InLine 32335R Módulo SFP, 2,5 Gb/s, fibra óptica multimodo 850 nm, 300 m, LC

The InLine 32335R is an SFP transceiver module designed for 2.5 Gb/s data transmission over multimode fiber optic cable. It features an optical LC duplex interface with an 850 nm wavelength and supports a transmission distance of up to 300 meters. The module includes digital diagnostic monitoring (DDM) for real-time performance control and is hot-pluggable for easy installation or replacement.

Key features

• Transmission rate: 2.5 Gb/s
• Optical interface: LC duplex
• Wavelength: 850 nm
• Transmission distance: up to 300 m (multimode fiber)
• Digital diagnostic monitoring (DDM)
• Hot-pluggable design
• Operating voltage: +3.3 V
• Operating temperature: 0 °C to 70 °C
• Storage temperature: -40 °C to 85 °C

Specifications

• Brand: InLine
• MPN: 32335R
• Type: SFP module
• Number of ports: 1
• Coding: CISCO
• Variant: Multi-Mode
• Max. distance: 300 m
• Transmission speed: 2.5 Gb/s
• Article length: 6 cm
• Article width: 1.6 cm
• Article height: 1.6 cm
• Net weight: 0.0015 kg
• Country of origin: Taiwan
