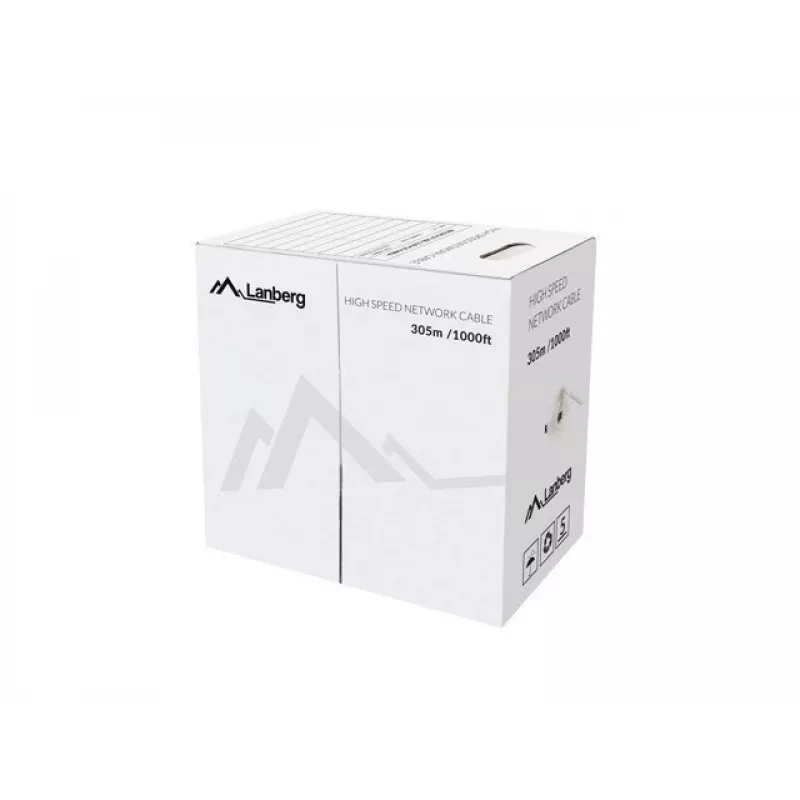

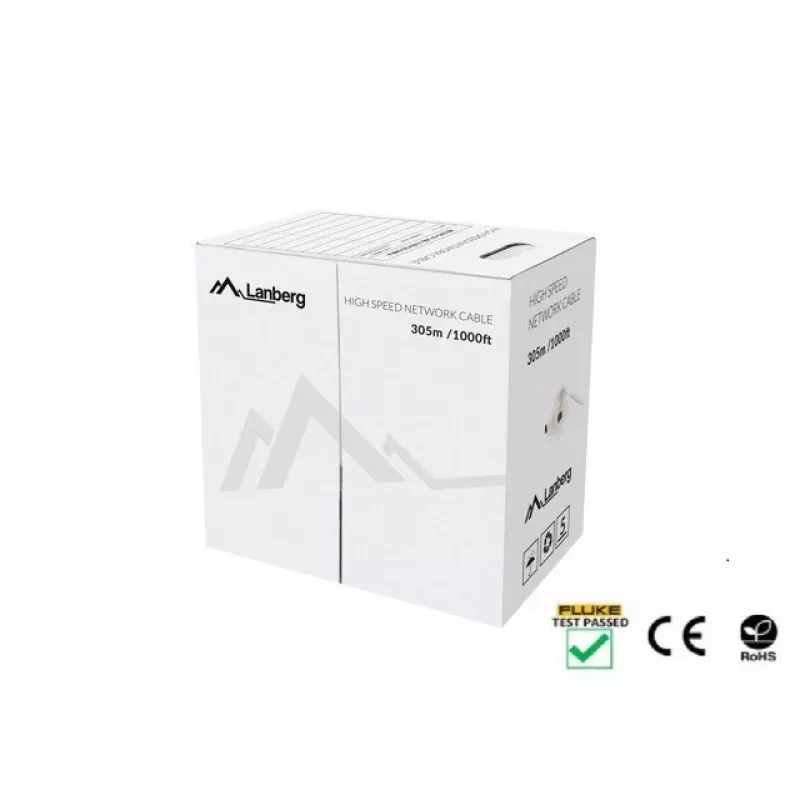

Cable de red Lanberg LCU5-12CU-0305-G U/UTP Cat5e 305 m verde

Lanberg LCU5-12CU-0305-G is a Category 5e U/UTP networking cable with a 305 m spool, intended for structured cabling and general network installations. The cable uses 100% pure copper conductors, an AWG 24 single-wire core construction (4 pairs, 2 conductors per pair, 0.45 mm each) and supports operation up to 100 MHz. The outer sheath is green PVC and each meter is marked with a printed length counter.

Advantages

This Cat5e U/UTP cable provides consistent electrical performance for Ethernet and other data applications over distances up to 100 m. The 100% copper single-wire conductors reduce electrical resistance and improve signal transmission. Visible meter markings simplify measurement during installation, while the 305 m spool and standard packaging (color inner box with master carton) suit medium and large installations.

Suitable for

Key specifications

How to use

Unwind the cable from the spool and run it through cable trays, conduits or raceways as required by the installation. Terminate the cable with appropriate RJ45 connectors or patch panels designed for Cat5e and AWG24 conductors, following standard T568A/B wiring schemes. Keep individual runs within the 100 m working distance for reliable performance and avoid sharp bends or excessive pulling force during installation.

Recommendations

For optimal results, use compatible Cat5e-rated RJ45 connectors or punch-down modules and maintain separation from high-voltage power lines. Observe the printed meter markings to cut accurate lengths and store the spool in a dry environment within the specified transport/storage temperature range.
