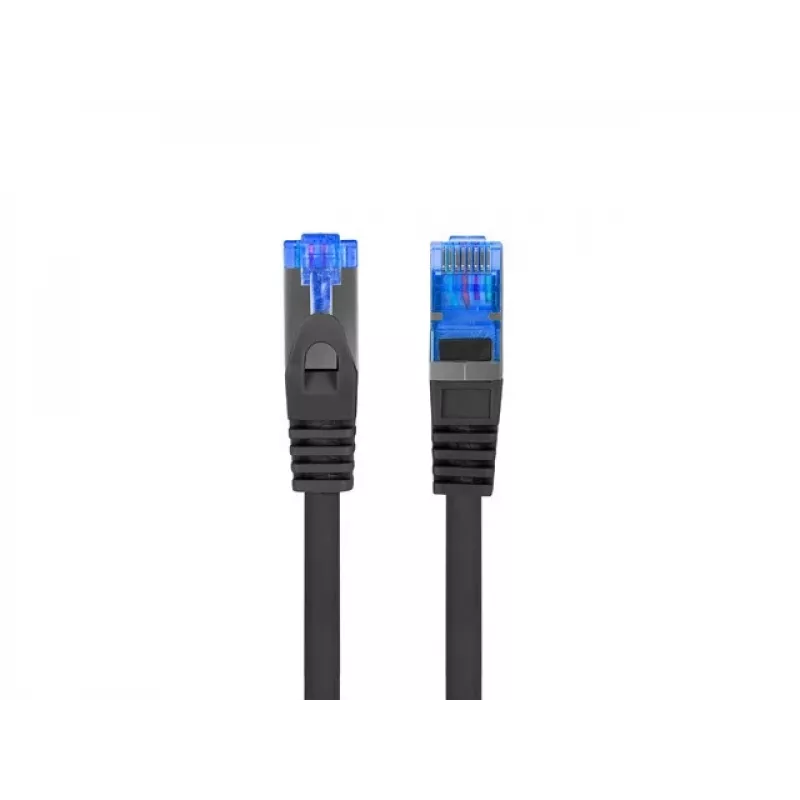

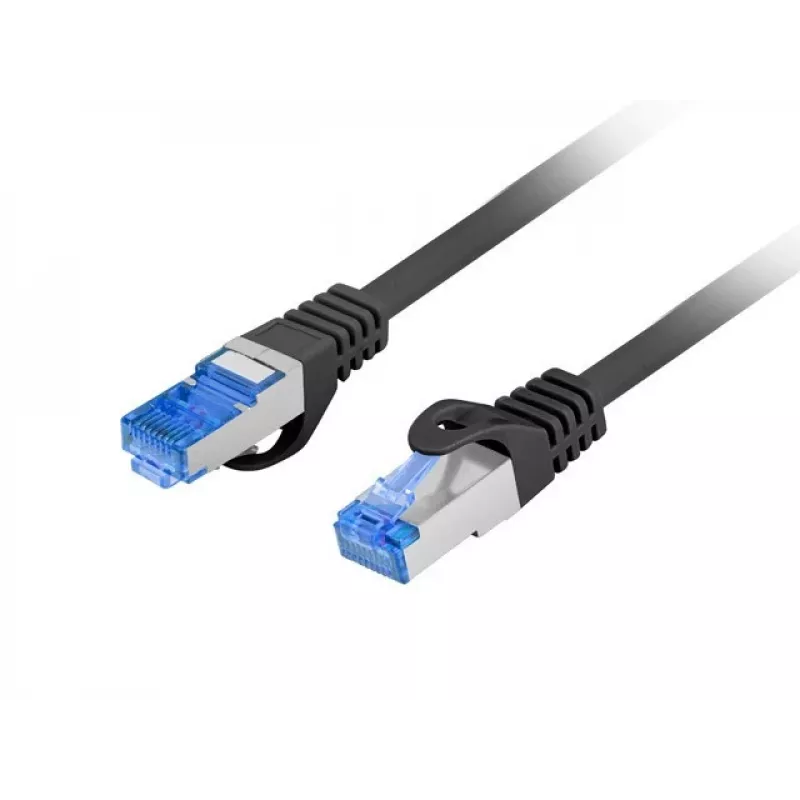

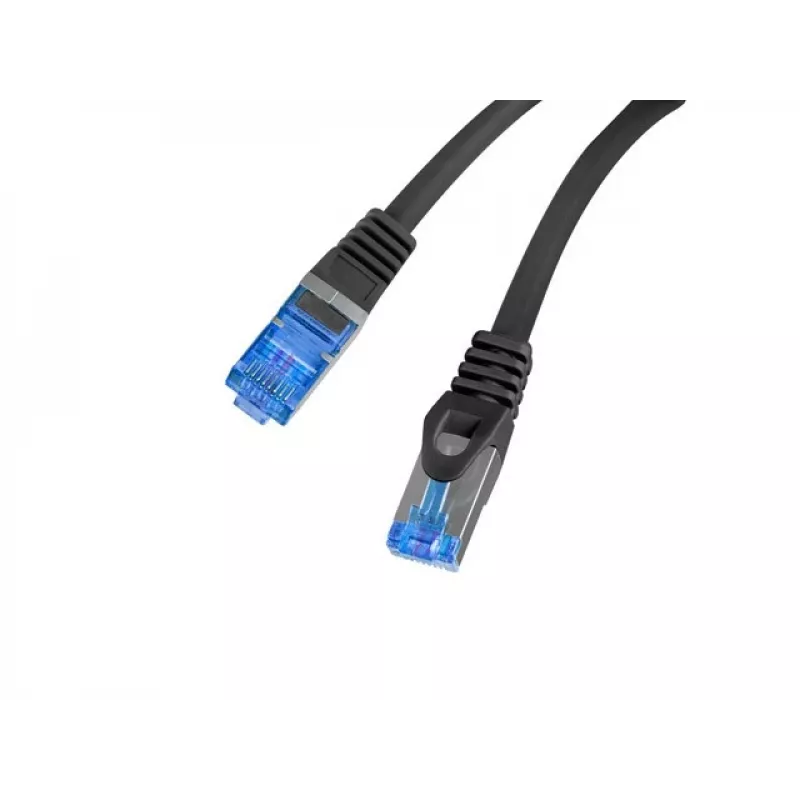

Cable de red Lanberg PCF6A-10CC-0025-BK RJ45 Cat6a 0,25m negro

The Lanberg PCF6A-10CC-0025-BK is a Cat6A networking cable with a 0.25 m length designed for short patch connections. It uses S/FTP shielding (braid plus foil on each pair), 26 AWG conductors (7 x 0.16 mm) made of CCA, and an LSZH jacket. The cable supports frequencies up to 500 MHz and bandwidths up to 10 Gb/s and is compatible with ANSI/TIA/EIA-568-B and meets ISO/IEC 11801 class Ea requirements.

Advantages

S/FTP shielding reduces electromagnetic interference and crosstalk, improving signal integrity for high-speed applications. The LSZH jacket lowers smoke and toxic gas emissions in case of fire. Its short 0.25 m length is suitable for neat patching in dense racks or between adjacent devices. The black RAL9004 color provides a discreet appearance in installations.

Suitable for

• Short patch connections in server cabinets and patch panels
• Desk-to-switch or switch-to-switch links where minimal cable slack is required
• High-speed data transmission up to 10 Gb/s over short distances

Key specifications

• Category: Cat6A (class Ea)
• Shielding: S/FTP (braid + foil per pair)
• Length: 0.25 m
• Conductor: 26 AWG (7 x 0.16 mm), CCA
• Outer diameter: 6.0 mm ± 0.2 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Black (RAL9004)
• Frequency: up to 500 MHz
• Bandwidth: up to 10 Gb/s
• Standards: compatible with ANSI/TIA/EIA-568-B; meets ISO/IEC 11801 class Ea

How to use

Connect the RJ45 plugs on each end to compatible Ethernet ports on network devices, patch panels, or switches. Use this 0.25 m cable for short-distance connections where cable management and minimal slack are important. Avoid sharp bends and excessive pulling force; follow standard installation practices for Ethernet cabling to maintain performance.

Recommendations

The cable is intended for short patching and in-rack use; for longer runs or outdoor installations choose appropriately rated cables. Ensure connectors and ports are compatible with Cat6A performance to achieve the specified bandwidth.
