Cable de red Lindy Cat.6 SSTP/S/FTP PIMF Premium 30 m azul

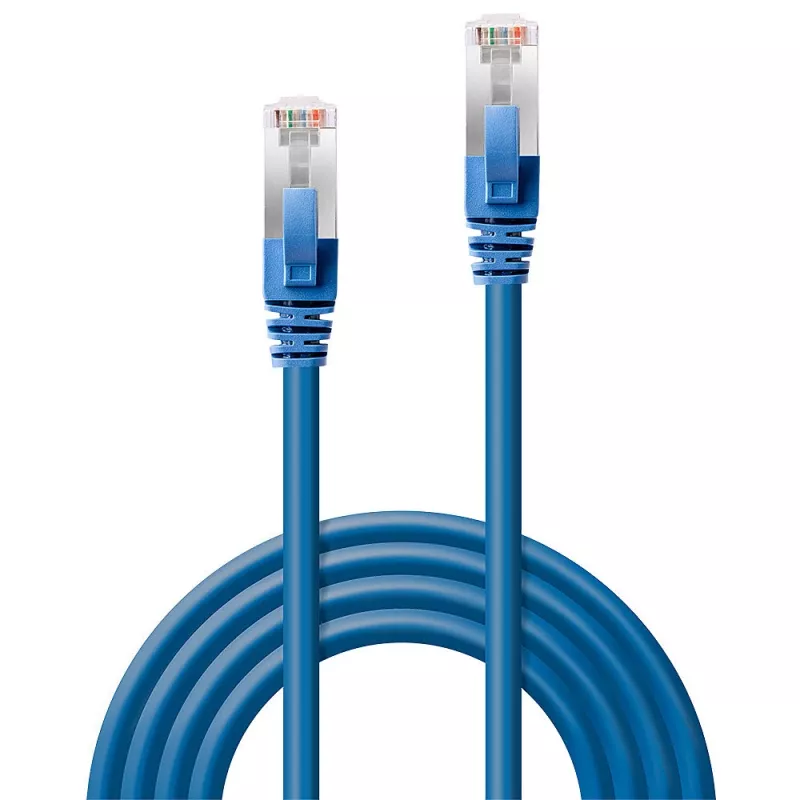

Lindy Cat.6 SSTP/S/FTP PIMF Premium 30m Blue is a shielded Cat.6 Ethernet cable designed for data transmission at frequencies up to 250 MHz and for Ethernet standards up to 1GBase-T. The cable is 30 meters long, features a blue low-smoke, halogen-free (LSZH) sheath and is manufactured and tested to ISO/IEC 11801.

Advantages

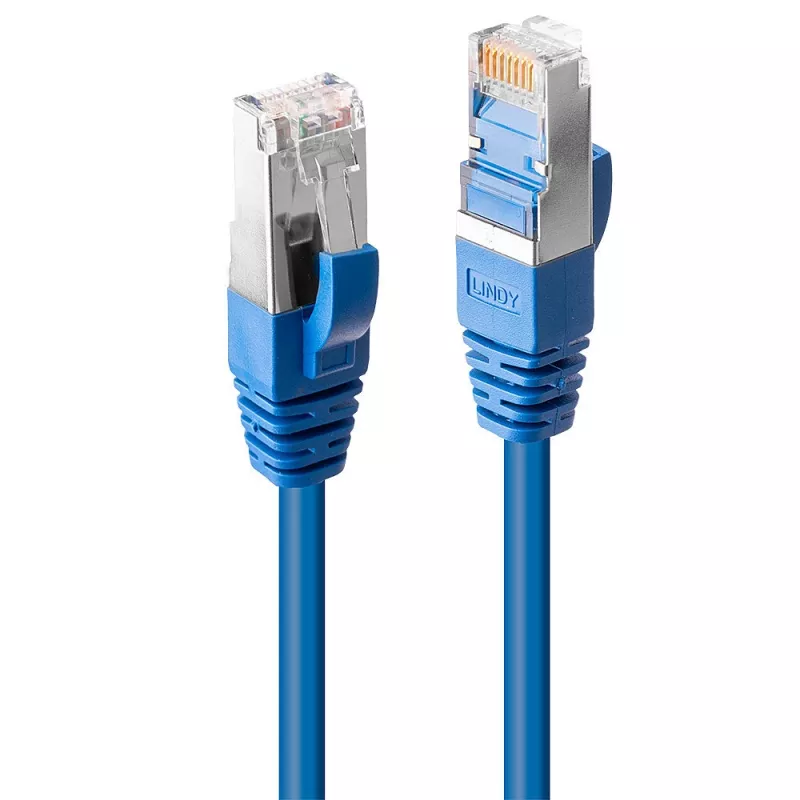

The S/FTP (SSTP/PIMF) construction combines an overall braided shield with foil-wrapped individual pairs to minimise electromagnetic interference and crosstalk. Gold-plated contacts provide corrosion-resistant connections, and a robust snagless strain-relief design protects the connector latch during installation and removal. The LSZH jacket reduces smoke and eliminates halogen emissions, making the cable suitable for use in public or enclosed spaces.

Suitable for

• Gigabit Ethernet (1GBase-T) networks
• AV extension and streaming applications
• Structured cabling in office and professional environments
• Installations where low smoke and halogen-free materials are required

Key specifications

• Cable category: Cat.6 (S/FTP – overall braid + foil per pair)
• Bandwidth / frequency: up to 250 MHz
• Maximum Ethernet standard: 1GBase-T
• Length: 30 m
• Contact plating: gold-plated contacts
• Sheath: LSZH (Low Smoke Zero Halogen), blue
• Manufacturing / testing standard: ISO/IEC 11801

How to use

Connect one RJ45 end to a network device (switch, router, PC, AV transmitter) and the other end to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks and avoid sharp bends near the connector to preserve signal integrity. Route the 30 m cable avoiding sources of strong electromagnetic interference and secure it with appropriate cable management accessories.

Recommendations

For optimal performance in Gigabit networks and AV applications, keep cable runs within recommended lengths for your network topology, avoid running parallel to high-voltage power lines, and use proper patch panels and connectors that match Cat.6 specifications.
