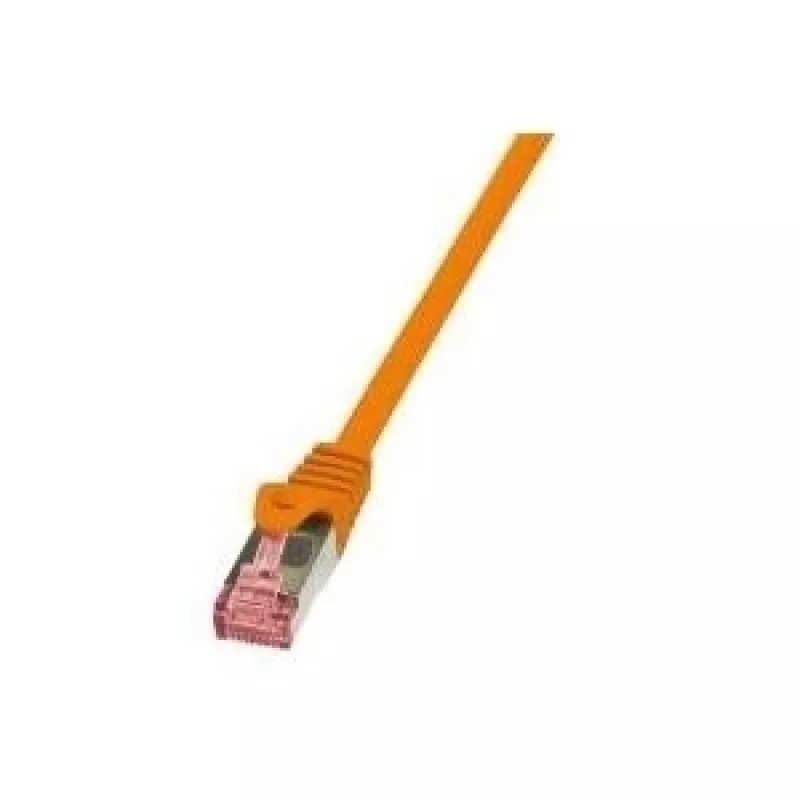

Cable de red LogiLink 10 m Cat.6 RJ-45 S/FTP naranja

The LogiLink 10m Cat.6 RJ-45 S/FTP networking cable is a 10-metre shielded patch cable designed for high-speed data transmission in wired networks. It uses S/FTP (overall shield with individually foiled pairs) construction, PIMF shielding and bare copper conductors, and comes with RJ-45 connectors on both ends. The cable jacket is LSZH (low smoke zero halogen) and the product meets ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards.

Advantages

The S/FTP shielding and PIMF design reduce electromagnetic interference and crosstalk, supporting stable signal quality over the 10 m length. Bare copper conductors and Cat.6 specification enable reliable transmission for gigabit Ethernet applications. The LSZH jacket limits hazardous smoke and halogen emissions in case of fire, and the orange colour improves cable visibility for easier identification and routing.

Suitable for

• Wired local area networks (LAN) supporting Gigabit Ethernet
• Office and data cabinet patching and horizontal cabling
• Connections between switches, routers, patch panels and network devices

Key specifications

• Cable type: RJ45 Patch Cable Cat.6 S/FTP (PIMF)
• Length: 10 m
• Conductor: bare copper, AWG 27/7
• Shielding: S/FTP (overall braid/shield + foil around each pair)
• Jacket: LSZH (low smoke zero halogen)
• Connectors: RJ-45 — both ends
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Colour: Orange
• Weight: 310 g

How to use

Connect each RJ-45 connector to the corresponding Ethernet port on your network devices (switch, router, computer or patch panel). Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and sources of strong electromagnetic interference. For best performance, keep the cable within the specified 10 m length for patching and horizontal runs.

Recommendations

Use this Cat.6 S/FTP cable for in-room and rack-side patching where reduced interference and LSZH properties are required. Avoid running the cable alongside high-voltage power lines and maintain bend radius recommended for Cat.6 cables to preserve signal integrity.
