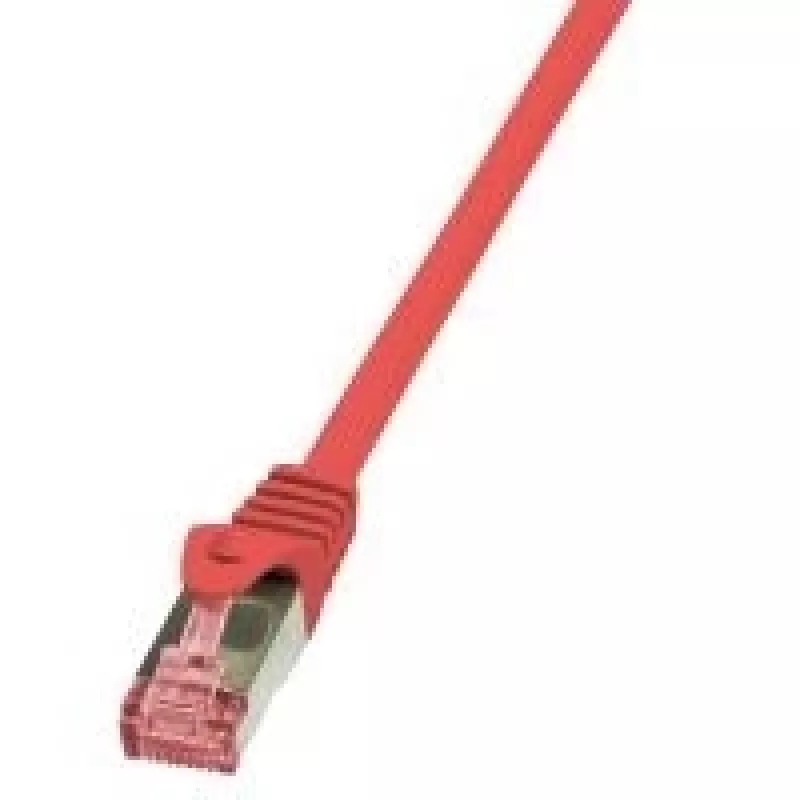

Cable de red LogiLink 10 m Cat.6 RJ-45 S/FTP rojo

The LogiLink 10m Cat.6 RJ-45 S/FTP networking cable in red provides a 10-metre connection for Ethernet devices. It uses Cat.6 construction with S/FTP (Shielded Foiled Twisted Pair / Pair in Metal Foil) shielding, AWG 27/7 conductors of bare copper and RJ-45 connectors, and is fitted with an LSZH (low smoke zero halogen) jacket. The cable complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards.

Advantages

The S/FTP shielding and PIMF design reduce electromagnetic interference and crosstalk, supporting stable high-speed data transmission. AWG 27/7 bare copper conductors ensure reliable signal conductivity, while the LSZH jacket limits smoke and toxic gas emission in case of fire. The 10 m length and standard RJ-45 terminations make the cable suitable for typical local network connections.

Suitable for

• Connecting PCs, switches and routers in offices or home networks
• Structured cabling runs within a rack or between nearby rooms (up to 10 m)
• Environments where reduced smoke and halogen emissions are required

Key specifications

• Cable type: Cat.6 S/FTP (PIMF)
• Length: 10 m
• Conductors: AWG 27/7, bare copper
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Colour: Red
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Weight: 0.31 kg

How to use

Plug the RJ-45 connectors into the corresponding Ethernet ports on your devices (PC, switch, router). Ensure connectors are fully inserted until the locking clip engages. Route the cable to avoid tight bends, sharp edges and sources of strong electromagnetic interference. For permanent installations, secure the cable with appropriate clips or cable management to prevent strain on the connectors.

Recommendations

For optimal performance, keep cable runs under the specified maximum length for Cat.6 segments and avoid bundling this shielded cable tightly with unshielded cables or power lines; maintain proper grounding of connected shielded equipment when used in environments with significant EMI.
