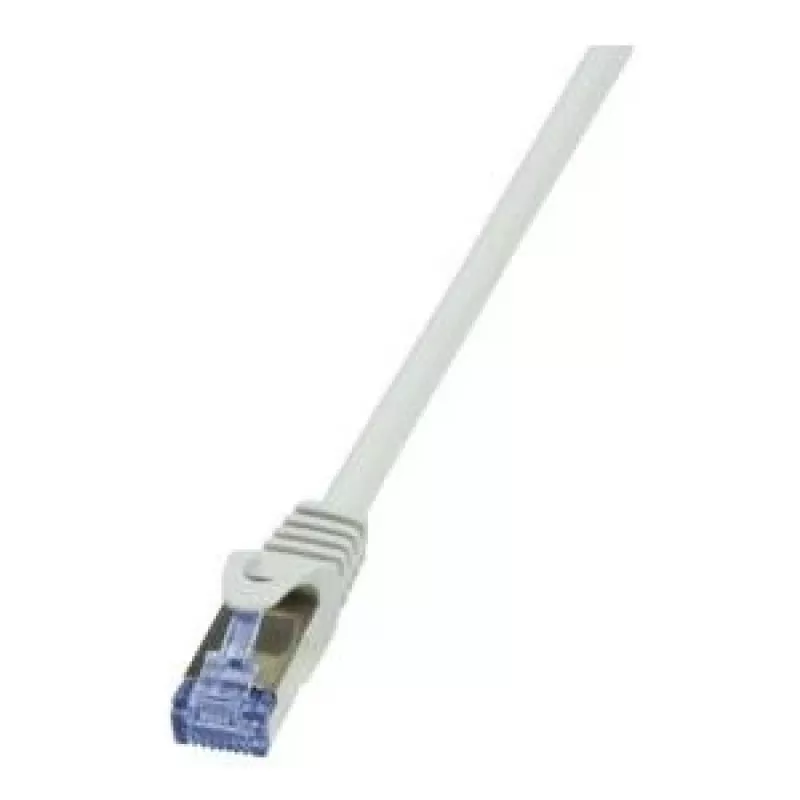

Cable de red LogiLink 20 m Cat7 RJ-45 gris

The LogiLink 20m Cat7 S/FTP networking cable provides high-speed data transmission up to 600 MHz and supports 10 Gigabit networks. The cable uses S/FTP construction with individually foil-shielded pairs and an overall braided shield, AWG 26/7 copper conductors, a halogen-free LSZH jacket and gold-plated Cat6 RJ45 plugs for reliable contacts. It is designed for structured cabling in home and office environments and complies with ISO/IEC 11801, EN50173-1 and TIA/EIA-568B.2-1 standards.

Advantages

The S/FTP shielding and AWG 26/7 copper conductors reduce electromagnetic interference and crosstalk for stable high-speed transmissions. Gold-plated Cat6 RJ45 plugs improve contact reliability and corrosion resistance. The LSZH halogen-free jacket lowers toxic gas emissions in case of fire and the 20 m length provides flexible routing options for desktop, server or patch-panel connections.

Suitable for

• 10 Gigabit Ethernet connections
• High-speed home and office networks
• Connections between switches, routers and patch panels
• Structured cabling runs where LSZH jacket is required

Key specifications

• Cable type: Cat7 S/FTP
• Bandwidth: up to 600 MHz
• Transmission: up to 10 Gbps
• Conductor: AWG 26/7 copper
• Shielding: pairs in metal foil, overall braid
• Connectors: Cat6 RJ45, 50 µ gold plated
• Jacket: LSZH (halogen free)
• Length: 20 m
• Standards: ISO/IEC 11801, EN50173-1, TIA/EIA-568B.2-1

How to use

Plug one RJ45 connector into the network port of your device (PC, switch, router or patch panel) and the other connector into the corresponding port on the remote device. Avoid tight bends and excessive pulling; maintain a minimum bend radius recommended for copper network cables to preserve performance. For permanent installations, route the cable through cable management or conduits as appropriate and secure it without crushing the jacket or connectors.

Recommendations

For best performance, keep the cable length within specified limits for 10 Gbps links and avoid running the cable in parallel with high-voltage power lines. Use the LogiLink Cat7 cable where reduced interference and LSZH jacket properties are required.
