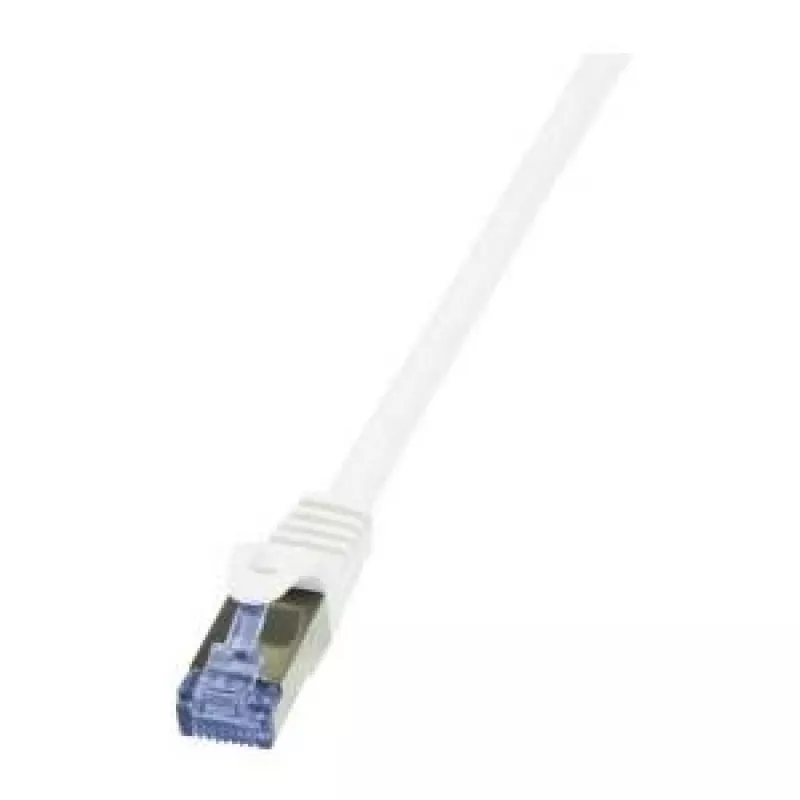

Cable de red LogiLink 20 m RJ-45 Cat7 blanco

The LogiLink 20m RJ-45 Cat7 White networking cable is a shielded S/FTP cable designed for high-speed Ethernet connections up to 10 Gigabit and frequency support up to 600 MHz. It features AWG 26/7 copper conductors with pairs wrapped in metal foil, LSZH (halogen-free) outer jacket and Cat6 RJ-45 plugs with 50 µ gold plating to ensure reliable contact and reduced corrosion. The 20 m length and neutral white colour make it suitable for both home and office installations where a durable, low-interference permanent link is required.

Advantages

S/FTP shielding on each pair plus an overall screen reduces electromagnetic interference and crosstalk, supporting stable high-speed data transfer. The 50 µ gold-plated Cat6 RJ-45 plugs provide improved connector longevity and signal quality. The LSZH halogen-free jacket minimises toxic smoke in case of fire and meets common building safety requirements. Compliance with ISO/IEC 11801, EN 50173-1 and TIA/EIA-568-B.2.1 standards ensures compatibility with structured cabling installations.

Suitable for

• High-speed LAN connections up to 10 Gbps
• Server rooms and network cabinets
• Home and office desktop connections
• Environments requiring low-emission (LSZH) cabling

Key specifications

• Cable type: Cat.7 S/FTP
• Bandwidth: up to 600 MHz
• Data rate: up to 10 Gigabit Ethernet
• Conductor: AWG 26/7 copper
• Shielding: pairs in metal foil + overall screen (S/FTP)
• Connectors: RJ-45 (Cat6) with 50 µ gold plating
• Jacket: LSZH (halogen free)
• Length: 20 m
• Colour: White
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-B.2.1

How to use

Connect one RJ-45 plug to the network device (switch, router or NIC) and the other plug to the corresponding port on the target device. Ensure connectors are fully inserted until the clip engages. Route the cable avoiding sharp bends and sources of strong electromagnetic interference to preserve signal quality. For permanent installations, secure the cable with appropriate clips and leave service loops for maintenance.

Recommendations

Use this LogiLink Cat7 cable for applications that require stable high-bandwidth connections. Avoid running the cable parallel and in close proximity to mains power lines; if crossing is necessary, do so at a 90° angle. Do not exceed the specified bend radius and avoid excessive tensile force when installing to maintain performance.
