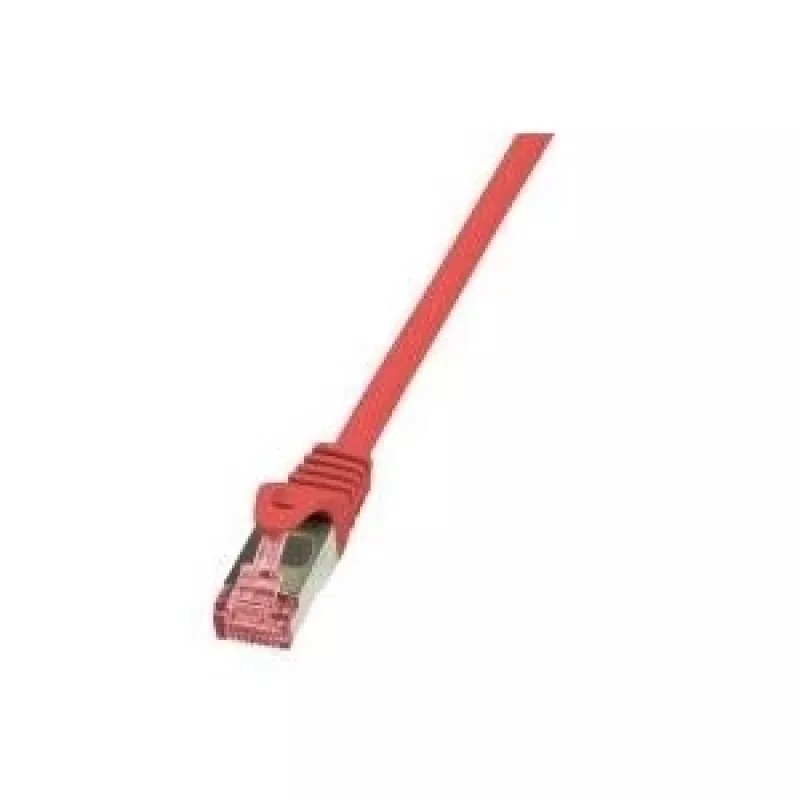

Cable de red LogiLink 5 m Cat.6 RJ-45 S/FTP rojo

The LogiLink 5m Cat.6 RJ-45 S/FTP networking cable in red provides Category 6 performance with S/FTP (shielded foiled twisted pair) construction for improved protection against electromagnetic interference. It features RJ-45 connectors on both ends and a LSZH (low smoke zero halogen) jacket for reduced smoke and toxic gas emission in case of fire. The cable uses bare copper conductors and meets ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards.

Advantages

S/FTP shielding with individual pair foil and an overall braid reduces crosstalk and external interference. Cat.6 specification supports high-speed data transmission suitable for modern network environments. LSZH outer jacket minimizes harmful emissions in confined spaces. The use of bare copper conductors ensures reliable electrical performance and signal integrity.

Suitable for

• Ethernet connections between switches, routers and computers
• Structured cabling in offices and homes
• High-speed data transfer for multimedia and VoIP
• Temporary and permanent network installations where reduced smoke emission is required

Key specifications

• Brand: LOGILINK
• Model/MPN: CQ2074S
• EAN: 4052792021264
• Cable category: Cat.6
• Cable type: S/FTP (shielded, pairs foiled, overall braid)
• Conductor: Bare copper
• Conductor size: AWG 27/7
• Pairing: PIMF (Pairs in Metal Foil)
• Connector: RJ-45 to RJ-45
• Length: 5 m
• Weight: 160 g
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Color: Red

How to use

Connect one RJ-45 plug to your network device (switch, router, computer) and the other RJ-45 plug to the corresponding port of the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and avoid running it parallel to high-voltage power lines to minimize interference. For permanent installations, secure the cable with appropriate clips or cable management accessories without compressing the jacket.

Recommendations

For optimal performance, use this Cat.6 S/FTP cable for gigabit Ethernet or faster networks. Maintain bend radius and avoid excessive tension during installation. Choose LSZH-specified cable in confined or public spaces where low smoke and halogen-free properties are preferred.
