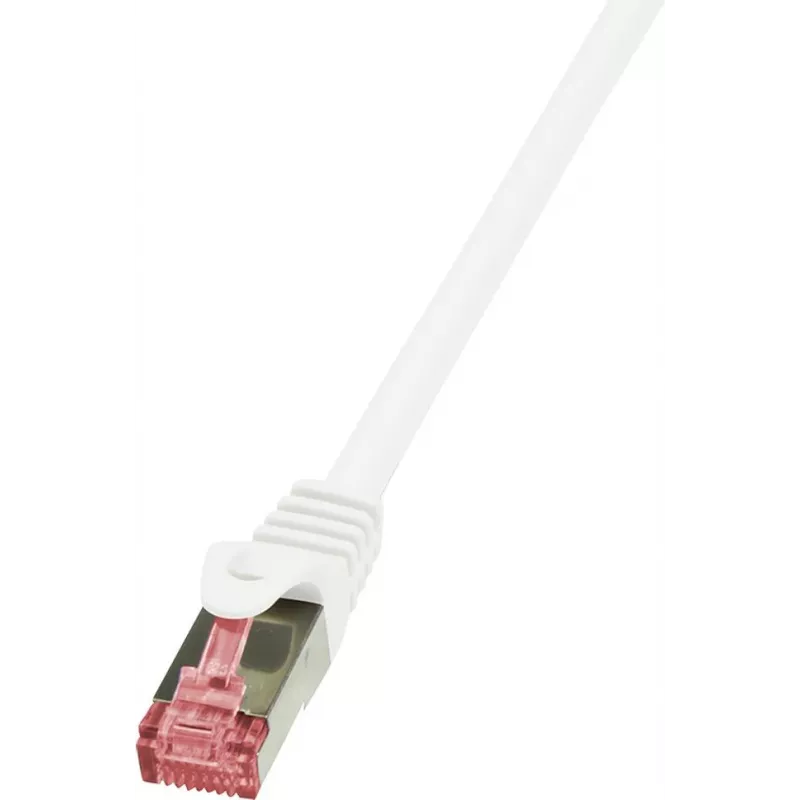

Cable de red LogiLink 50 m Cat.6 RJ-45 S/FTP blanco

LogiLink Networking Cable Cat.6 S/FTP PrimeLine, 50 m, white — shielded Ethernet cable designed for Gigabit networks. The cable uses S/FTP (screened foiled twisted pair) construction with bare copper conductors and RJ-45 terminations to provide consistent data transmission. The outer jacket is LSZH (low smoke zero halogen). The product conforms to ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards.

Advantages

The S/FTP design combines overall screening and individual pair foil to reduce electromagnetic interference and crosstalk, supporting stable high-speed connections up to Cat6 specifications. Bare copper conductors ensure low resistance and reliable signal integrity, while the LSZH jacket limits toxic and corrosive smoke in case of fire. The 50 m length and white colour make the cable suitable for structured cabling in homes, offices and data closets.

Suitable for

• Gigabit Ethernet connections (Cat 6) in home and office networks
• Structured cabling runs up to 50 m
• Shielded installations where EMI reduction is required

Key specifications

• Length: 50 m
• Cable type: Cat.6 S/FTP (PIMF) with bare copper conductors
• Conductor AWG: 27/7
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Colour: White
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Weight: 1.687 kg

How to use

Measure the required run and cut the cable to length if necessary. Terminate both ends with compatible RJ-45 plugs or use pre-terminated RJ-45 connectors as supplied. Ensure proper grounding of the cable shield where required and maintain bend radius recommendations during installation to preserve performance. Route the cable away from strong electrical interference sources when possible.

Recommendations

For optimal performance, use this Cat.6 S/FTP cable in shielded or grounded network installations and avoid sharp bends or excessive pulling force during installation. Observe building and fire-safety regulations for LSZH cables.
