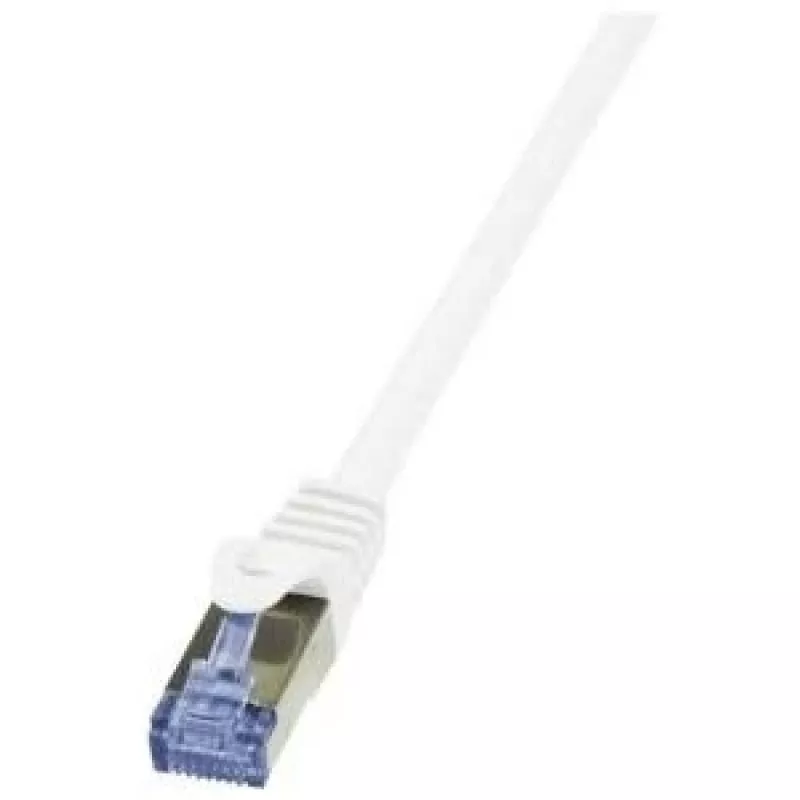

Cable de red LogiLink 5m Cat.6A RJ-45 S/FTP blanco

LogiLink Cat.6A patch cable, 5.00 m, white. This S/FTP (Screened Foiled Twisted Pair) cable with PIMF construction and bare copper conductors is intended for reliable high-speed data transmission up to 10 Gbps. The cable uses RJ-45 connectors on both ends and is manufactured with an LSZH (low smoke zero halogen) jacket. It complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

The LogiLink 5 m Cat.6A S/FTP cable provides improved electromagnetic interference protection thanks to its screened and foil-shielded design and PIMF pairing. Bare copper conductors ensure consistent signal quality, while the LSZH outer jacket reduces hazardous smoke and corrosive gases in case of fire. The cable weight and flexible construction make it suitable for structured cabling and patch panel connections.

Suitable for

• Connecting switches, routers and network devices in offices and data centers
• High-speed Ethernet connections up to 10 Gbps
• Structured cabling and patch panel links

Key specifications

• Length: 5.00 m
• Category: Cat.6A (10G)
• Shielding: S/FTP (overall braid + foil on pairs), PIMF
• Conductor: bare copper
• Wire gauge: AWG 26/7
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Colour: White
• Weight: approx. 0.18 kg

How to use

Plug the RJ-45 connectors into the corresponding network ports on your devices, ensuring secure seating on both ends. Use the 5 m length to connect devices within a rack, between a patch panel and a switch, or between desktop equipment and a wall outlet. Avoid sharp bends and excessive pulling force during installation to maintain cable performance.

Recommendations

For optimal performance, route the cable away from strong sources of electromagnetic interference (large motors, fluorescent lighting ballasts) and maintain the minimum bend radius recommended by the manufacturer. Use appropriate cable management to prevent strain on the connectors.
