Cable de red LogiLink 7,5 m Cat.6A RJ-45 S/FTP blanco

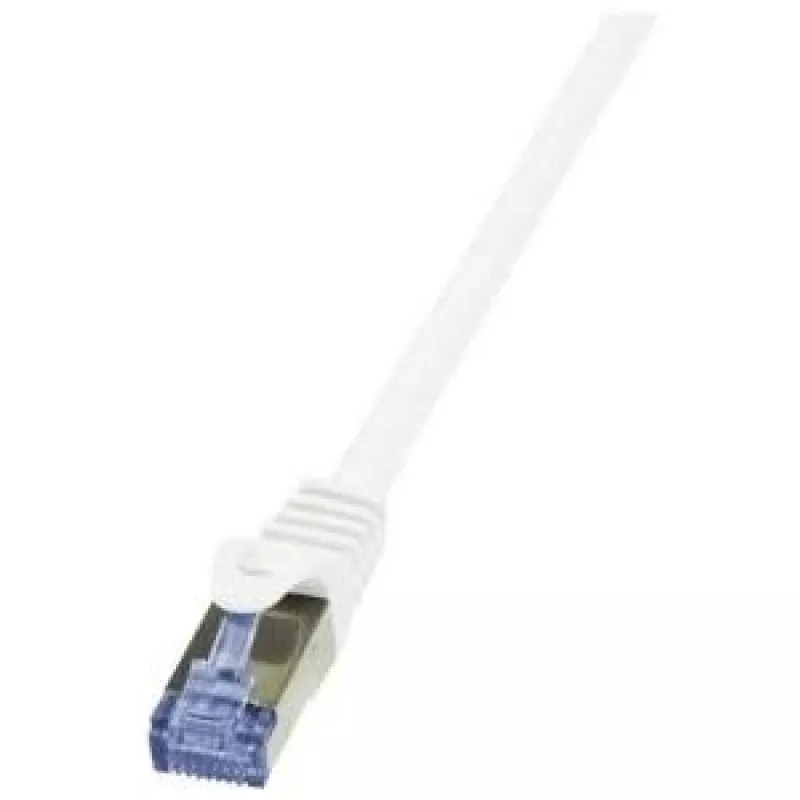

Patch Cable Cat.6A 10G S/FTP PIMF PrimeLine LogiLink® in white, 7.50 m length, is a high-performance networking cable designed for 10 Gbit/s connections. The cable uses S/FTP (shielded foiled twisted pair with braid) construction and PIMF arrangement to reduce electromagnetic interference. It features AWG 26/7 bare copper conductors and RJ45 connectors suitable for standard Ethernet installations. The LSZH (low smoke zero halogen) jacket improves safety in enclosed environments.

Advantages

The cable supports Cat.6A performance up to 10 Gbit/s and meets international standards (ISO/IEC 11801, EN50288, TIA/EIA 568-C.2). S/FTP shielding and PIMF design provide improved protection against crosstalk and external interference. Bare copper conductors with AWG 26/7 offer reliable conductivity while RJ45 terminations ensure compatibility with common network equipment. The LSZH jacket reduces toxic fumes in case of fire.

Suitable for

• 10 Gbit/s Ethernet connections in offices and data centers
• High-speed workstations and server uplinks
• Structured cabling installations requiring shielded Cat.6A cables
• Environments where low-smoke, zero-halogen jackets are preferred

Key specifications

• Length: 7.5 m
• Category: Cat.6A (10G)
• Conductor: Bare copper AWG 26/7
• Shielding: S/FTP, PIMF
• Connectors: RJ45 — both ends
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Color: White
• Weight: 270 g

How to use

Connect one RJ45 plug to your network device (switch, router, PC or server) and the other to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable avoiding sharp bends and sources of strong electromagnetic interference. For structured installations, follow site-specific cable management and grounding practices when using shielded cables.

Recommendations

For optimal performance with S/FTP Cat.6A cables, terminate and ground the cable shield correctly within the patch panels or outlets and avoid running the cable in parallel with high-voltage power lines.
