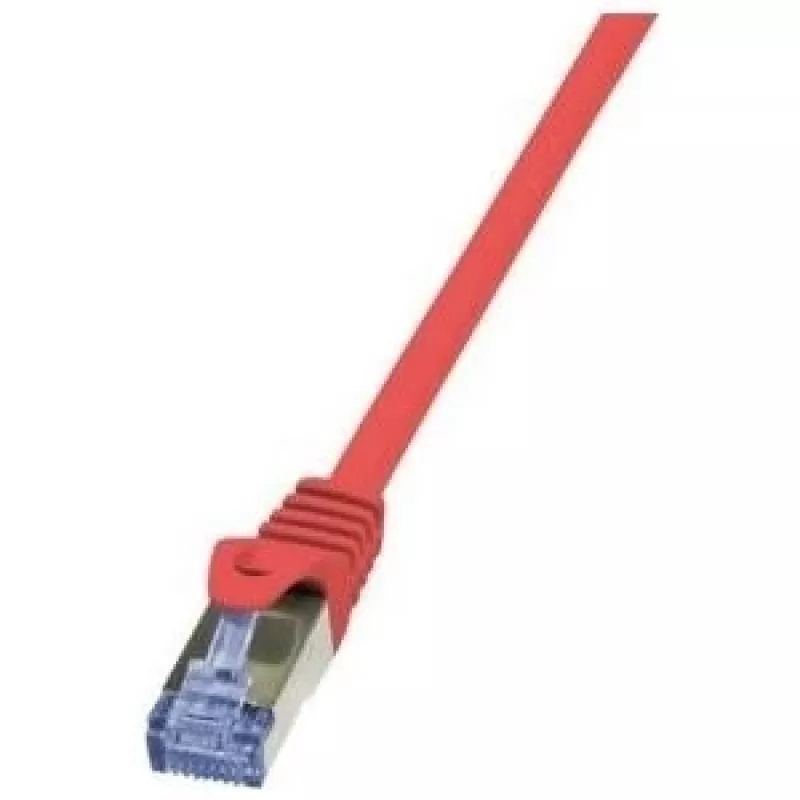

Cable de red LogiLink 7,5 m RJ-45 Cat6a rojo

The LogiLink Networking Cable 7.5m RJ-45 Cat6a in red is a shielded patch cable designed for high-speed 10G Ethernet connections. Constructed with bare copper conductors and S/FTP (PIMF) shielding, the cable meets ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards and uses RJ-45 connectors for reliable data transfer over a 7.5 m length. The LSZH (low smoke zero halogen) jacket reduces harmful emissions in case of fire and the cable weight is approximately 270 g.

Advantages

This Cat.6A S/FTP patch cable provides 10G data transmission capability with enhanced electromagnetic and crosstalk protection due to its PIMF shielding. Bare copper conductors ensure stable signal integrity, while LSZH jacket material offers improved safety in enclosed or public spaces. The red jacket makes cable identification and routing in network installations easier.

Suitable for

• 10 Gigabit Ethernet connections between switches, routers and network devices
• Server rooms and structured cabling installations requiring Cat6A performance
• Environments where reduced smoke and halogen emissions are required (public buildings, data centers)
• Patch panels and wall outlets using RJ-45 terminations

Key specifications

• Cable category: Cat.6A (10G)
• Length: 7.5 m
• Conductor: bare copper
• Shielding: S/FTP (pair in metal foil, overall braid) / PIMF
• Conductor size: AWG 26/7
• Connectors: RJ-45 — both ends
• Outer jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Weight: approx. 270 g

How to use

Connect one RJ-45 plug to the network device (switch, router or computer) and the other end to the corresponding port on the paired device or patch panel. Ensure connectors are fully inserted until they click to secure the connection. Route the cable to avoid sharp bends, tight kinks and sources of strong electromagnetic interference for optimal performance.

Recommendations

For best results use this Cat6A S/FTP cable in installations that require 10G performance and low-emission materials; avoid running parallel to high-voltage power lines and maintain the manufacturer’s recommended bend radius to preserve signal integrity.
