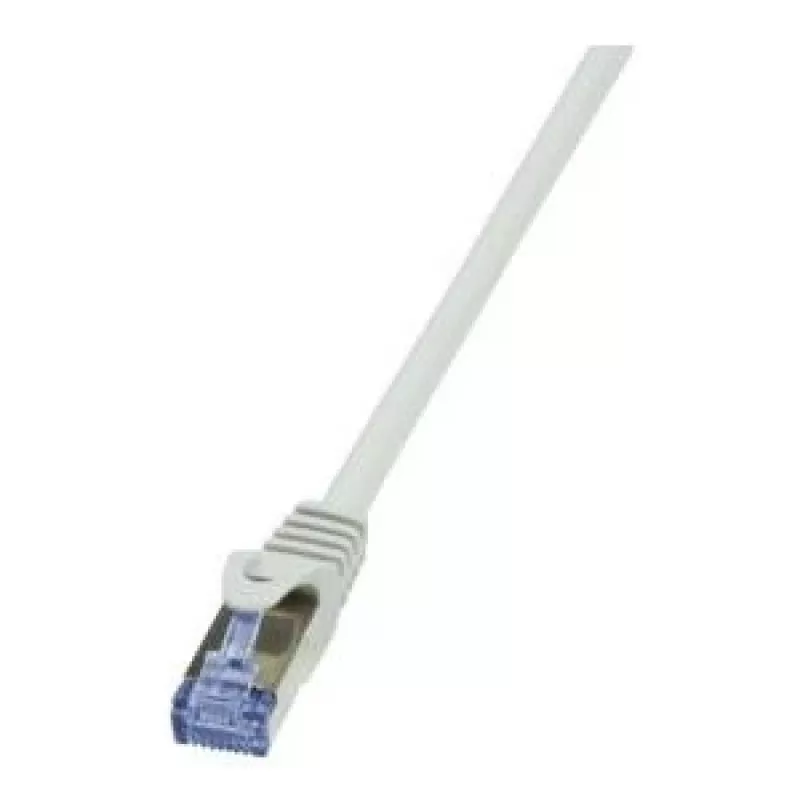

Cable de red LogiLink 7,5 m RJ-45 Cat7 gris

The LogiLink 7.5m RJ-45 Cat7 Grey networking cable provides Cat.7 performance with S/FTP shielding and 600 MHz bandwidth for high-speed data transmission up to 10 Gigabit. The cable uses AWG 26/7 copper conductors with each pair wrapped in metal foil and is finished with LSZH (halogen-free) outer jacket. Both ends have gold-plated Cat.6 RJ-45 plugs (50 µ) for corrosion resistance and reliable contact. The cable complies with ISO/IEC 11801, EN 50173-1 and TIA/EIA 568B-2.1 standards.

Advantages

S/FTP construction and pair-level metal foil shielding reduce electromagnetic interference and crosstalk, supporting stable high-speed connections. AWG 26/7 copper conductors ensure low attenuation and consistent signal quality over the 7.5 m length. Gold-plated RJ-45 plugs improve contact reliability and resist corrosion, while the LSZH jacket minimizes hazardous emissions in case of fire. Compliance with international cabling standards ensures compatibility with structured network installations.

Suitable for

• High-speed wired connections in home and office networks
• 10 Gigabit Ethernet links and bandwidth-demanding applications
• Structured cabling installations requiring Cat7 performance
• Environments where low-smoke, halogen-free jacket is required

Key specifications

• Category: Cat7
• Bandwidth: 600 MHz
• Maximum data rate: 10 Gbit/s (10 Gigabit)
• Cable type: S/FTP (shielded/foiled twisted pair)
• Conductor: AWG 26/7 copper
• Connectors: RJ-45 — Cat.6 plugs, 50 µ gold plating
• Jacket: LSZH (halogen-free)
• Length: 7.5 m
• Colour: Grey
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA 568B-2.1

How to use

Connect each RJ-45 plug to the corresponding Ethernet port on your devices (router, switch, computer) ensuring the plugs are fully inserted and latched. For best performance, avoid sharp bends and prolonged compression of the cable; maintain gentle curves with radius at least four times the cable diameter. Keep the cable away from strong sources of electromagnetic interference such as large motors or unshielded power lines.

Recommendations

Use this Cat7 cable for wired links that require stable, low-interference connections at up to 10 Gbit/s over the 7.5 m run; for longer runs or different installation conditions, verify channel specifications and installation rules of your structured cabling standard.
