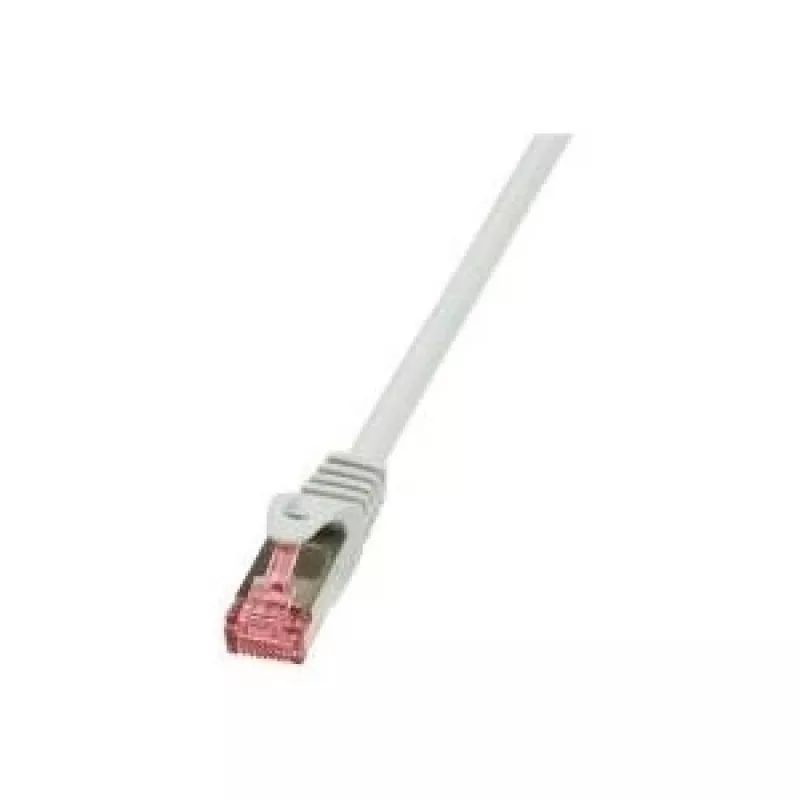

Cable de red LogiLink Cat.6 S/UTP RJ-45 Cat6 0,25 m gris

The LogiLink Cat.6 S/UTP RJ-45 networking cable (0.25 m) is a short patch cable intended for high-speed Ethernet connections between devices with RJ-45 ports. It uses bare copper conductors and is constructed as a shielded twisted pair (S/FTP, PIMF) with an LSZH (low smoke zero halogen) jacket. The cable complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards and is supplied in grey with plated RJ-45 contacts for stable signal transmission.

Advantages

The cable offers S/FTP shielding to reduce electromagnetic interference, AWG 27/7 bare copper conductors for reliable conductivity, and an LSZH jacket for reduced smoke and halogen emissions in the event of fire. Its short 0.25 m length is suitable for patching equipment in tight spaces and minimizes excess cable clutter.

Suitable for

• Connecting switches, patch panels and routers at short distances
• Desk-to-wallport or patch panel connections in server rooms and offices
• Environments requiring low-smoke, zero-halogen cabling

Key specifications

• Type: Cat.6 S/UTP (S/FTP, PIMF)
• Length: 0.25 m
• Connectors: RJ-45 — both ends
• Conductor: Bare copper, AWG 27/7
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Colour: Grey
• Weight: 10 g

How to use

Plug one RJ-45 connector into the network port of your device and the other into the corresponding port on the switch, patch panel or router. Ensure connectors are fully inserted until the latch clicks. For optimal performance avoid sharp bends and excessive pulling; keep the cable run within the intended short length.

Recommendations

Use this 0.25 m Cat6 patch cable for short interconnections where minimal cable slack is required; do not use it as a permanent long-distance run. For installations with strict fire-safety requirements, the LSZH jacket is recommended. Maintain bend radius and avoid mechanical stress to preserve signal integrity.
