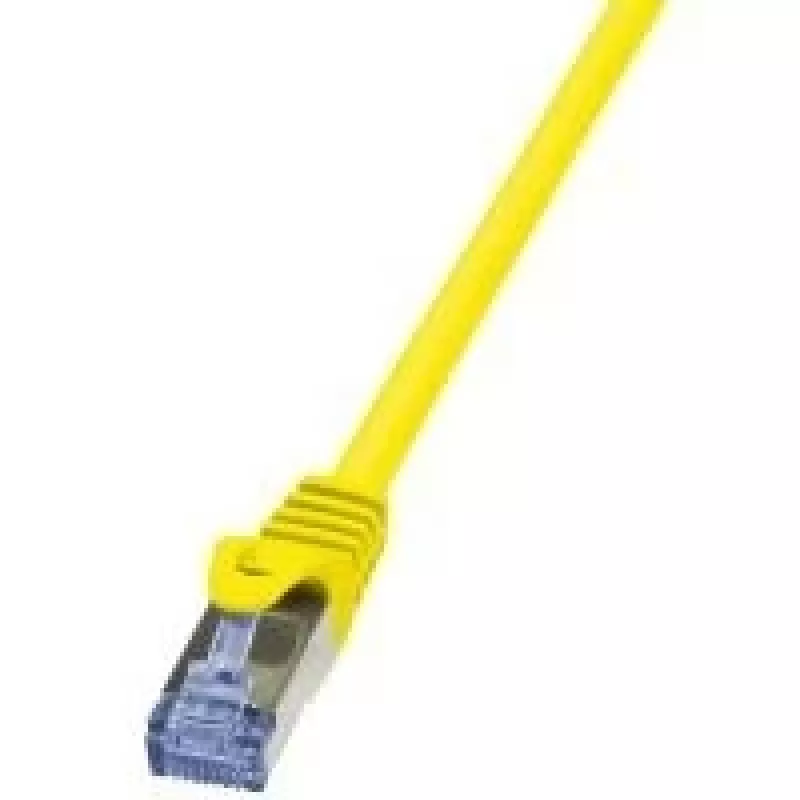

Cable de red LogiLink Cat6a S/FTP RJ-45 10 m amarillo

The LogiLink Cat6a S/FTP RJ-45 10m Yellow networking cable provides a 10 metre connection for high-speed Ethernet networks. It uses S/FTP (shielded foil around each pair plus overall braid) construction with bare copper conductors and AWG 26/7 stranded cores, and is jacketed in LSZH (low smoke zero halogen) material. The cable complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards and comes fitted with RJ-45 connectors on both ends for straightforward installation and reliable mating.

Advantages

S/FTP shielding reduces electromagnetic interference and crosstalk for more stable data transmission. AWG 26/7 stranded bare copper conductors ensure good conductivity and flexibility along the 10 m length. The LSZH jacket limits toxic and corrosive emissions in case of fire and the bright yellow colour aids cable identification and organisation. Compliance with industry cabling standards ensures interoperability and predictable performance.

Suitable for

• Gigabit and 10 Gigabit Ethernet connections in offices and server rooms
• Structured cabling and patch panels
• Workstations, switches and network equipment interconnects
• Environments requiring reduced fire-hazard emissions

Key specifications

• Cable type: Cat6a S/FTP (PIMF) Shielded Twisted Pair
• Length: 10 m
• Conductor: Bare copper, AWG 26/7 (stranded)
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Weight: 350 g
• Colour: Yellow

How to use

Connect each RJ-45 plug to the corresponding Ethernet ports on your devices (switch, router, PC or patch panel). Ensure connectors are fully seated until they click to secure the connection. Route the cable avoiding sharp bends and sources of strong electromagnetic interference; maintain bend radius recommended for Cat6a cables. For fixed installations, secure the cable with suitable clips or cable management to prevent strain on connectors.

Recommendations

Use this Cat6a S/FTP cable for connections that require high bandwidth and reduced interference. For optimal 10 Gigabit performance, keep runs within recommended length limits and terminate using compatible RJ-45 jacks and testing equipment to verify compliance.
