Cable de red LogiLink CQ2071S RJ-45 Cat6 5m blanco

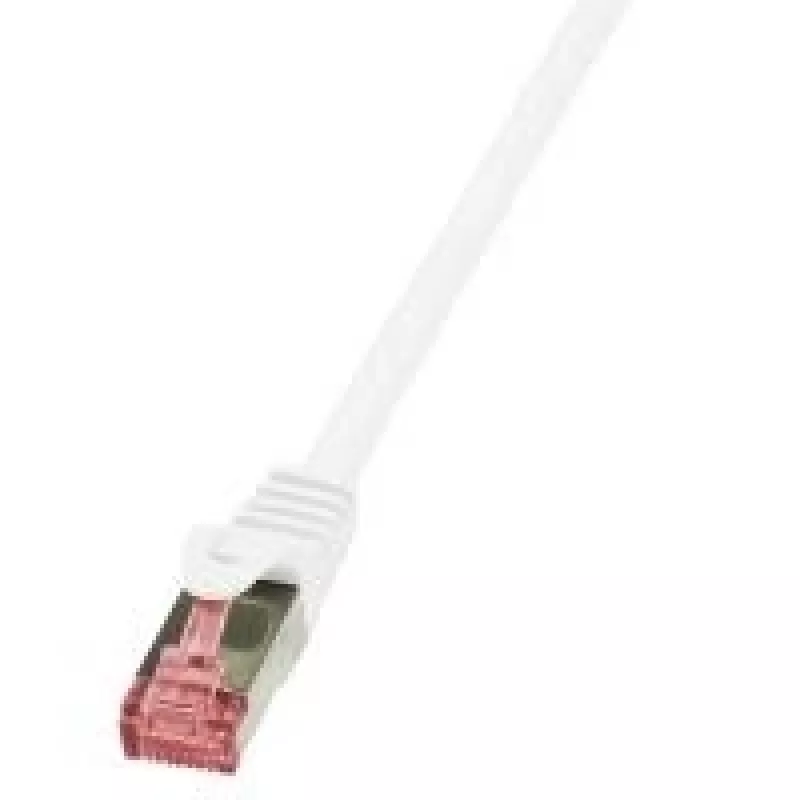

LogiLink CQ2071S is a 5.00 m Cat.6 patch cable with S/FTP (PIMF) shielding, designed for wired network connections using RJ45 connectors. The cable features AWG 27/7 stranded bare copper conductors and an LSZH (low smoke, zero halogen) jacket. It conforms to ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2-1 standards and is available in white.

Advantages

The S/FTP (screened foil twisted pair with pair-wise foil) construction and PIMF shielding reduce crosstalk and external interference, improving signal integrity for high-speed data transmission. AWG 27/7 stranded bare copper offers flexibility and reliable conductivity, while the LSZH jacket limits toxic fumes and dense smoke in case of fire. Compliance with international cabling standards ensures compatibility with structured network installations.

Suitable for

• Wired Ethernet connections in home networks
• Office network patching and switch-to-device connections
• High-speed data transfer where Cat6 performance is required
• Environments where low-smoke, zero-halogen cabling is preferred

Key specifications

• Length: 5.00 m
• Category: Cat.6
• Shielding: S/FTP (PIMF)
• Conductor: AWG 27/7 bare copper (stranded)
• Connectors: RJ45 — both ends
• Jacket: LSZH (low smoke, zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-B.2-1
• Colour: White
• Weight: 0.16 kg

How to use

Plug each RJ45 connector into the corresponding Ethernet ports on your devices (for example, switch to computer, router to modem or patch panel to switch). Ensure connectors are fully inserted until they click to secure the connection. Route the cable to avoid sharp bends and sources of strong electromagnetic interference to maintain signal quality.

Recommendations

For optimal performance, use the cable in installations that require Cat6 performance and shielding against interference. Avoid repeated tight bending and do not exceed recommended pull force during installation. For permanent structured cabling, verify compatibility with existing patch panels and modules that accept Cat6 S/FTP cables.
