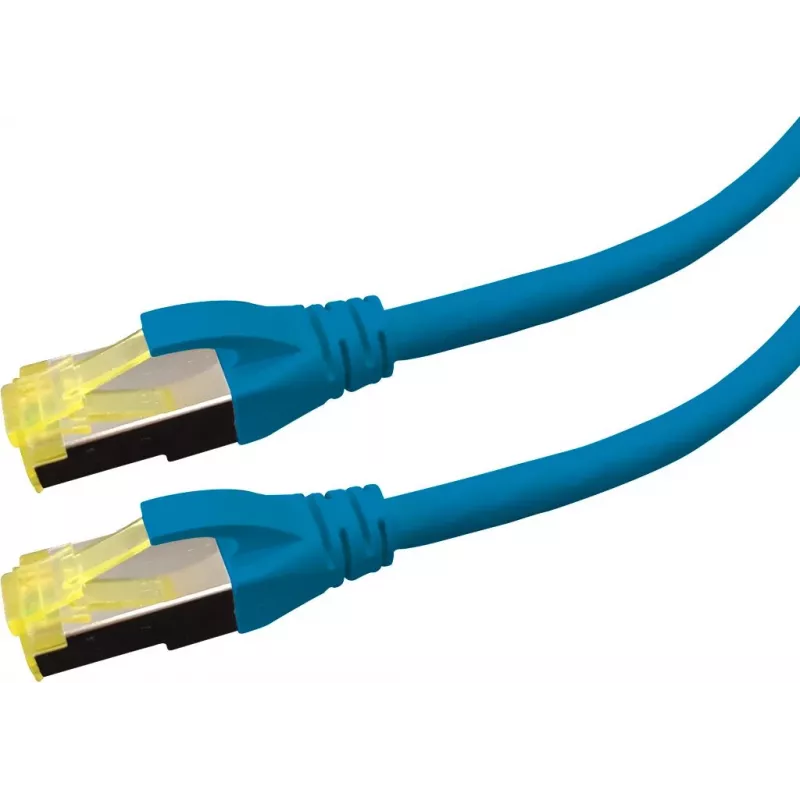

Cable de red LOGON APR6A050B Cat6a S/FTP (S-STP) azul 5 m RJ-45–RJ-45

LOGON APR6A050B is a 5 m Cat6a networking cable with S/FTP (S-STP) shielding and RJ-45 connectors on both ends. Designed for 10 Gbps Ethernet and backward-compatible with lower-speed standards, this blue patch cable provides improved protection against electromagnetic interference and near-end crosstalk compared to unshielded cables. The cable’s construction meets Cat6a performance characteristics and is intended for use in data centers, office LANs and home networks where consistent high-bandwidth connectivity is required.

Advantages

The S/FTP (S-STP) shielding combines an overall braided shield with individually foil-shielded pairs to reduce EMI and pair-to-pair crosstalk, delivering stable signal integrity at higher frequencies. At 5 meters length the cable minimises attenuation for short to medium runs while remaining flexible enough for patch panels and workstation connections. Fitted with standard RJ-45 plugs on both ends, it supports plug-and-play installation in sockets and switches that accept eight-position modular connectors.

Suitable for

• 10 Gbps Ethernet links between switches, routers and servers within racks or cabinets
• Patch connections at wall outlets, patch panels and desktop network ports
• Office LANs, small data closets and home network backbone segments

Key specifications

• Cable category: Cat6a (augmented Category 6)
• Shielding: S/FTP (overall braided shield plus foil around each twisted pair)
• Length: 5 meters
• Connectors: RJ-45 to RJ-45, 8P8C modular plugs
• Color: Blue
• Typical application: 10 Gbps Ethernet at short-to-medium distances
• Outer jacket: Low Smoke Zero Halogen (LSOH) typical for indoor installations

How to use

Connect one RJ-45 plug to your network device (switch, router, network card) and the other to the intended port on the opposite device or patch panel. Ensure connectors are fully inserted until you hear or feel the latch click. Route the cable so it is not tightly bent at the connector ends and avoid running it parallel to high-voltage power lines for extended distances to minimise interference. For best performance, use within the specified 5 m length and in environments matching the cable’s intended indoor installation profile.

Recommendations

Use this Cat6a S/FTP cable for short to medium patch runs where 10 Gbps performance and improved EMI protection are required. For permanent horizontal cabling in commercial installations, verify local wiring standards and consider compliance with building codes when selecting jacket type and installation methods.
