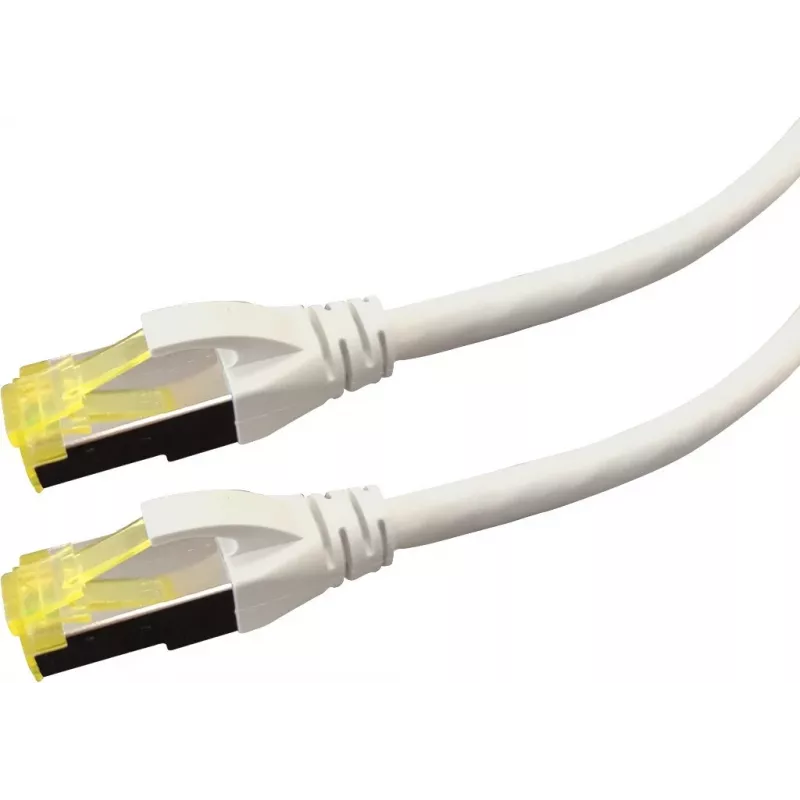

Cable de red LOGON APR6A050W — Cat6a S/FTP (S-STP), RJ-45 a RJ-45, 5 m, blanco

LOGON APR6A050W is a 5 m Cat6a Ethernet patch cable with S/FTP (S‑STP) shielding and RJ‑45 connectors on both ends. The cable is engineered for wired LAN installations, server racks and switch-to-switch connections where stable 10 Gigabit Ethernet performance and reduced electromagnetic interference are required. The white low-smoke, zero-halogen (LSOH) jacket offers a neutral appearance suitable for visible runs and installations in offices, data centers and professional networking environments.

Advantages

The S/FTP (S‑STP) construction combines an overall braided shield with individually foil‑shielded pairs to minimize crosstalk and external electromagnetic interference, preserving signal integrity at high data rates. The 26 AWG, four‑pair structure conforms to Cat6a requirements for 10 Gbps transmission over short to medium distances. Durable RJ‑45 connectors on both ends provide reliable contact and easy plug‑and‑play connectivity with standard network equipment. The white LSOH jacket reduces toxic emissions in case of fire and maintains a discreet visual profile in installations.

Suitable for

• 10 Gigabit Ethernet links in server rooms and data centers
• Switch-to-switch and switch-to-server connections in office networks
• Structured cabling runs where reduced EMI and crosstalk are important
• Visible cable routing in commercial or residential interiors where a white finish is preferred

Key specifications

• Cable category: Cat6a
• Shielding: S/FTP (braided overall shield + foil for each pair)
• Conductor: 26 AWG, four twisted pairs
• Connectors: RJ‑45 plug to RJ‑45 plug, straight
• Length: 5 meters
• Jacket: Low‑smoke, zero‑halogen (LSOH), white
• Intended link speed: up to 10 Gbps (depending on network equipment and distance)

How to use

Connect one RJ‑45 connector to the network port of a switch, router or server and the other connector to the corresponding port of the receiving device. Ensure connectors are fully inserted until the latch clicks and avoid sharp bends or kinks along the cable path. For structured cabling, route the cable along designated cable trays or conduits and keep separation from high‑voltage power lines to maintain signal quality. Test the link with appropriate network testing equipment after installation to verify continuity and performance.

Recommendations

For optimal performance, use this Cat6a S/FTP cable for connections up to typical 5–55 meter ranges for 10 Gbps depending on environmental conditions and connected equipment. Avoid continuous exposure to direct sunlight or temperatures outside the jacket's rated range, and employ strain relief or cable ties to prevent connector stress.
