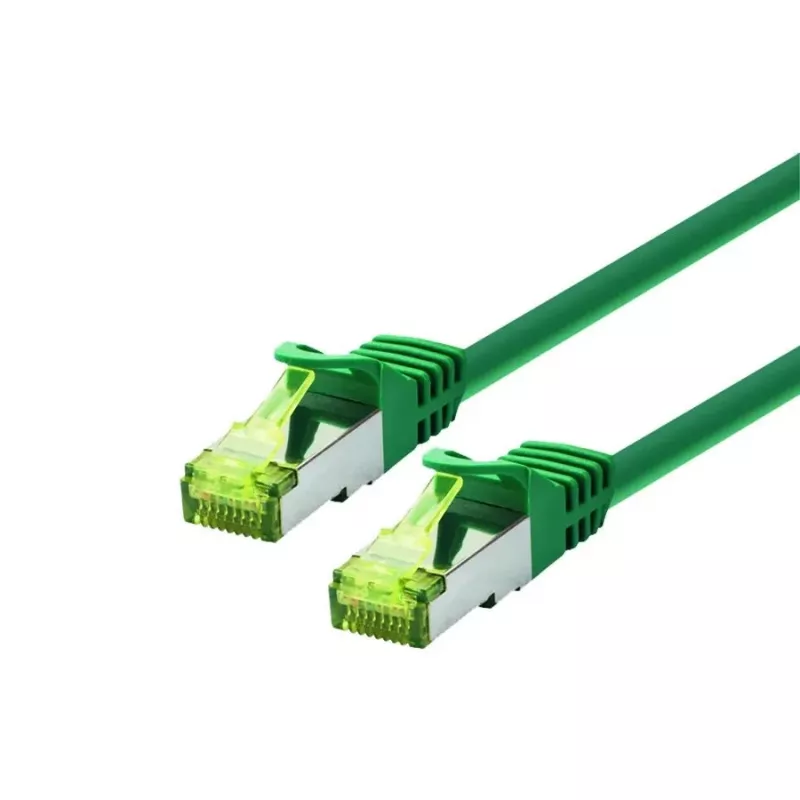

Cable de red LOGON SSTP Cat6a RJ-45 RJ-45 10 m verde

The LOGON SSTP Cat6a RJ-45 to RJ-45 networking cable, 10 m, in green, is a shielded Ethernet cable designed for high-speed data transmission in home and professional networks. It uses four twisted pairs (4 x 2 x AWG 26/7) with an overall foil plus individual pair braid (SSTP) to provide 100 Ohm characteristic impedance and support for Cat6a performance up to 10 Gbps. Both ends are fitted with shielded RJ45 male connectors and boots with kink protection and strain relief, wired 1:1 to the EIA/TIA 568B standard.

Advantages

The SSTP construction (foil plus full braid) reduces electromagnetic interference and crosstalk compared with unshielded cables, improving signal integrity over longer runs. Cat6a specification and 100 Ohm impedance enable reliable 10 Gbps operation in suitable network equipment. Molded boots with strain relief protect the RJ45 connectors and reduce cable stress at the plug, extending service life. The 10 m length offers flexibility for installation in offices, server rooms, or between network devices in larger rooms.

Suitable for

• Connecting switches, routers and NAS devices at up to 10 Gbps where Cat6a is supported
• Wired desktop or workstation connections in offices and home networks
• Server room patching, patch panels and structured cabling runs up to 10 meters

Key specifications

• Standard: Cat6a
• Cable type: SSTP (foil + full braid) twisted pair
• Conductor: 4 x 2 x AWG 26/7 (twisted pairs)
• Characteristic impedance: 100 Ohm
• Connectors: 2 x shielded RJ45 male
• Wiring: 1:1 EIA/TIA 568B
• Length: 10 m
• Colour: Green

How to use

Plug each shielded RJ45 connector into the corresponding Ethernet port of your devices (switch, router, computer or NAS). Ensure the connected equipment supports the required network speeds for Cat6a (up to 10 Gbps) if you need maximum performance. Route the cable avoiding sharp bends; the molded boot with kink protection reduces risk of damage near the connector. For best shielding performance, connect to network ports and equipment that provide chassis grounding for the RJ45 shield.

Recommendations

For optimal performance, use this Cat6a SSTP cable in properly grounded network environments, avoid running parallel to power lines for long distances, and keep the cable within its 10 m length rating for reliable 10 Gbps links.
