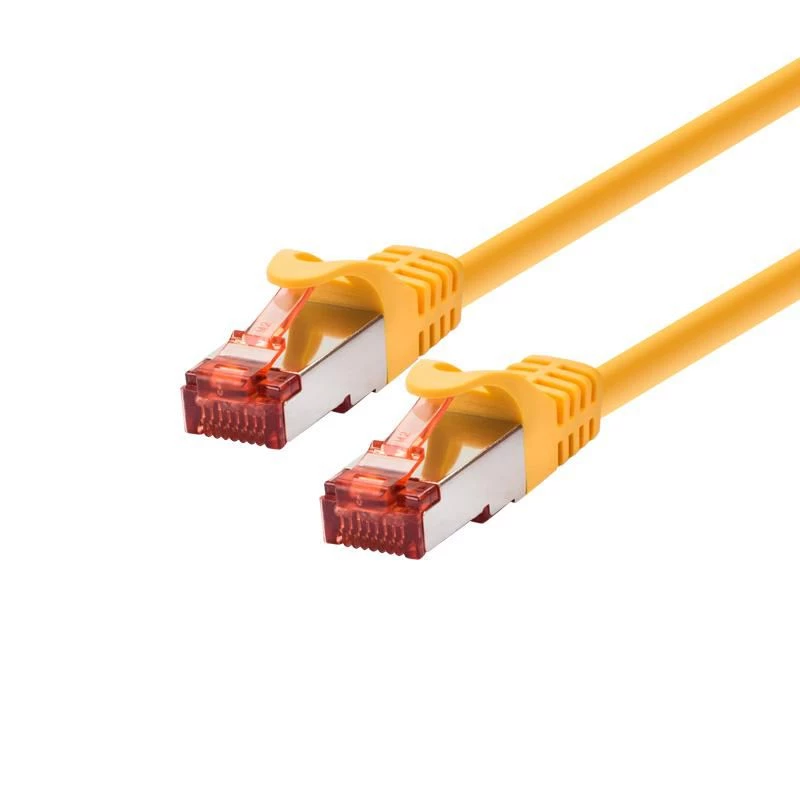

Cable de red LOGON TCF66F200Y Cat6a F/UTP (FTP) Amarillo 20 m RJ-45–RJ-45

LOGON TCF66F200Y Cat6a F/UTP (FTP) Yellow 20 m is a shielded network patch cable with RJ-45 connectors on both ends designed for high-speed Ethernet and 10 Gigabit applications. The cable uses four twisted pairs with foil shielding to reduce electromagnetic interference and maintain stable data transmission across structured cabling installations, patch panels, switches, routers and workstation connections. The PVC outer sheath and factory-terminated shielded RJ-45 plugs provide a ready-to-use solution for both home and office environments.

Advantages

The foil-shielded construction (F/UTP) improves immunity to external noise and crosstalk, which helps preserve signal integrity over the full 20 m length. Quality 26/7 AWG conductors and adherence to EIA/TIA-568 standards ensure consistent electrical characteristics and compatibility with Cat6a systems. Shielded RJ-45 plugs deliver reliable mating and grounding when used with compatible shielded sockets, while the yellow PVC sheath makes the cable easy to identify within cable bundles.

Suitable for

• 10 Gigabit Ethernet links in data centers and server rooms
• Connections between switches, routers and patch panels
• Workstation and desktop network connections in office environments
• Structured cabling runs requiring reduced EMI and crosstalk

Key specifications

• Category: Cat6a F/UTP (FTP)
• Length: 20 m
• Conductor: 4 x 2, 26 AWG stranded (26/7)
• Characteristic impedance: 100 ohm
• Connectors: RJ-45 male – RJ-45 male, shielded
• Sheath material: PVC
• Certification: Conforms to EIA/TIA-568 performance requirements
• Color: Yellow
• Termination: Factory-terminated, plug-and-play

How to use

Connect one RJ-45 end to the network device (switch, router or network interface) and the other end to the corresponding port on the receiving device or patch panel. Ensure shield continuity by using shielded jacks or chassis that accept grounded RJ-45 shielded plugs when operating in an environment with significant electromagnetic interference. No additional termination is required thanks to factory-terminated plugs; route the cable to avoid tight bends and sharp edges to preserve performance.

Recommendations

For optimal performance, maintain bend radius at least four times the cable diameter, avoid running parallel to high-voltage power lines for extended distances, and terminate into shielded connectors or panels to preserve the F/UTP shielding effectiveness. Use in environments requiring 10GBASE-T over short to medium distances and within structured cabling limits for Cat6a.
