Cable de red LOGON TCR55SS200G Cat5e F/UTP (FTP) 20 m verde RJ-45–RJ-45

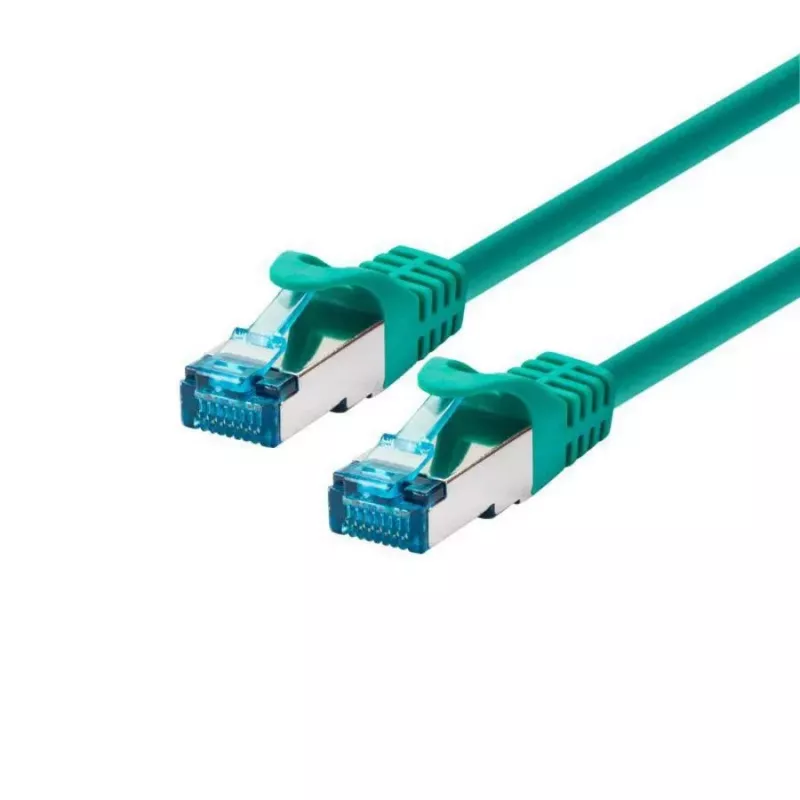

LOGON TCR55SS200G Cat5e F/UTP (FTP) 20 m Green RJ-45–RJ-45 is a 20‑metre Ethernet patch cable designed for wired LAN connections. The cable uses Cat5e specification with foil shielding around all pairs (F/UTP/FTP) and shielded RJ‑45 connectors on both ends. It provides 100 Ohm impedance and twisted‑pair construction suitable for standard Ethernet speeds in home, office and small business networks. The green jacket allows easy visual identification in cable bundles and rack environments.

Advantages

The foil shielded construction reduces electromagnetic interference from nearby cables and devices, improving signal stability in congested installations. Shielded RJ‑45 plugs with integrated boots offer strain relief and kink protection to extend connector life. The 20 m length accommodates longer runs between switches, routers and endpoints without additional patching. Cat5e certification ensures compliance with common Ethernet performance requirements while remaining compatible with existing Cat5 and Cat5e equipment.

Suitable for

• Patching between network switches, routers and patch panels in LANs
• Wiring desktop computers, VoIP phones and networked printers
• Home and small office Ethernet installations where foil shielding is preferred
• Temporary or semi-permanent runs in server rooms and network cabinets

Key specifications

• Category: Cat5e, F/UTP (FTP) configuration
• Length: 20 m
• Conductor: 4 pairs, 26 AWG (26/7) stranded
• Characteristic impedance: 100 Ohm
• Connectors: Shielded RJ‑45 male to RJ‑45 male
• Shielding: Foil around all pairs with overall drain/grounding conductor
• Jacket colour: Green
• Certification: Category 5e performance certified
• Design features: Plug-and-play, boots with strain relief and kink protection

How to use

Connect one shielded RJ‑45 plug to the network port of a switch, router or patch panel and the other plug to the device or outlet. Ensure both ends are fully inserted until the retaining tab engages to establish proper contact. For installations where shielding is effective, connect cable shield termination to the cabinet or device grounding point if required by the installation environment. Avoid sharp bends and kinks; route the cable with gentle curves and use cable management accessories to relieve stress on connectors.

Recommendations

Place the cable away from high-voltage power lines and sources of strong electromagnetic interference when possible. For best performance, maintain bend radius greater than four times the cable diameter and avoid running the cable parallel to power cables over long distances. Use shielded patch panels or grounded metal enclosures to preserve the effectiveness of the foil shielding in professional installations.
