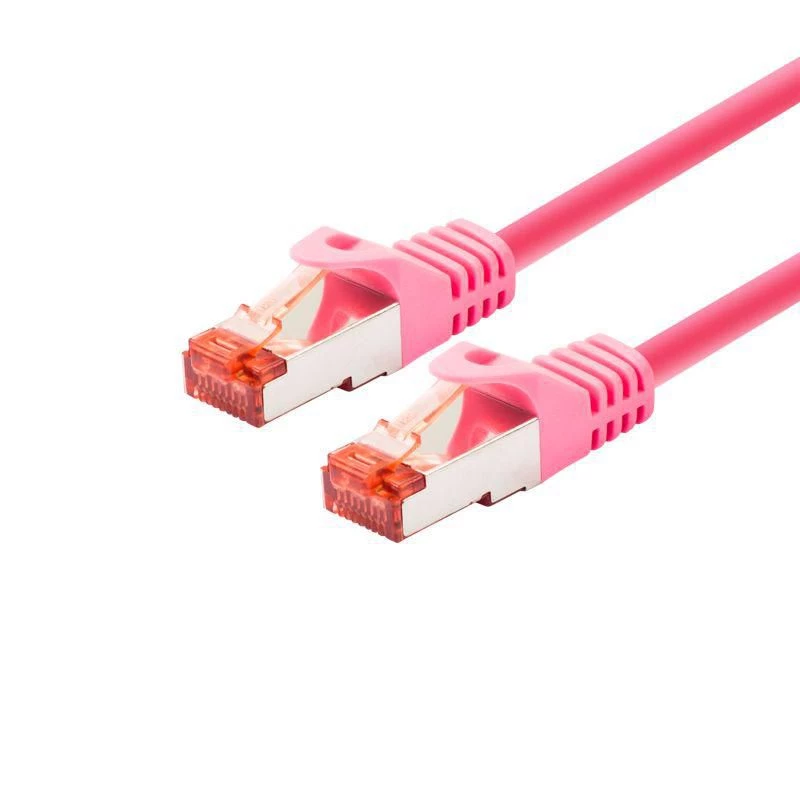

Cable de red LOGON TCR66SS070M Cat6 S/FTP (S-STP) magenta, 7 m, RJ-45—RJ-45

LOGON TCR66SS070M is a 7 m Cat6 networking cable with S/FTP (S-STP) shielding and RJ-45 connectors on both ends. The cable is built for wired Ethernet connections in LAN, home and office networks, providing Cat6-level performance with a 100 Ω impedance. Individual pair foil shielding combined with an overall braided shield reduces crosstalk and external electromagnetic interference while the magenta jacket makes the cable easy to identify in multi-cable installations.

Advantages

The S/FTP (S-STP) construction features foil around each twisted pair plus a full braid, offering enhanced protection against near-end and far-end crosstalk and external noise. Shielded RJ-45 connectors and a boot with kink protection and strain relief help maintain a reliable connection and reduce mechanical stress on conductor terminations. With a length of 7 m, the cable covers typical desk-to-switch and equipment-to-patch-panel runs without additional couplers.

Suitable for

• Wired Ethernet connections in home and small office LANs
• Patch panel to switch or workstation connections
• Environments where reduced interference is needed, such as near electrical equipment
• Runs requiring visible cable identification or colour-coding

Key specifications

• Cable category: Cat6
• Shielding: S/FTP (overall braid plus individually foil-shielded pairs)
• Conductor configuration: 4 pairs, AWG 26/7, twisted pair
• Characteristic impedance: 100 Ω
• Connectors: RJ-45 male to RJ-45 male, shielded
• Length: 7 m
• Colour: magenta
• Boot: integrated kink protection and strain relief
• Certification: designed to meet Cat6 channel performance

How to use

Connect one RJ-45 plug to the Ethernet port of a network device and the other RJ-45 plug to a switch, router, patch panel or another device. Ensure connector shields make proper contact with the equipment’s shielded ports when used in shielded installations. Route the cable without tight bends and avoid sharp edges; use the integrated boot and strain relief to reduce stress at connector ends. For optimal performance, keep the cable separate from high-voltage power lines and sources of strong electromagnetic interference.

Recommendations

For shielded installations, ensure that both ends are connected to properly grounded shielded ports to maintain the effectiveness of the S/FTP shielding. Use the magenta colour for straightforward cable management and to mark specific network segments or device types.
