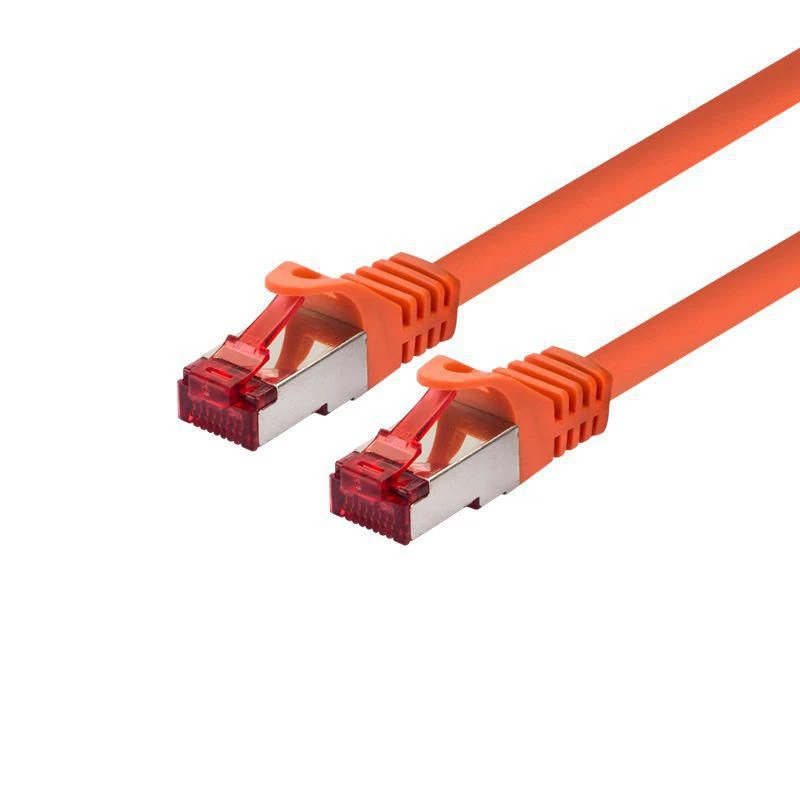

Cable de red LOGON TCR66SS070O Cat6 S/FTP (S-STP) naranja, RJ-45–RJ-45, 7 m

LOGON TCR66SS070O is a 7 m Cat6 S/FTP (S‑STP) networking cable with RJ‑45 connectors at both ends. Designed for gigabit Ethernet and structured cabling, the cable uses foil‑and‑braid shielding around each pair and an overall braid to reduce near‑end crosstalk and protect against external electromagnetic interference. The bright orange jacket improves visibility and makes identification in patch panels and wiring closets simple during installation and maintenance.

Advantages

This Cat6 S/FTP cable combines individual pair foil shielding with an overall braided screen to provide enhanced protection against alien crosstalk and EMI compared with unshielded alternatives. Constructed from four twisted pairs of 26/7 AWG conductors and fitted with shielded RJ‑45 male connectors at both ends, it supports reliable gigabit data transmission in typical LAN environments. A molded boot with kink protection and strain relief reduces connector stress and extends service life in frequent‑use patching scenarios.

Suitable for

• Gigabit Ethernet connections in offices, server rooms and data cabinets
• Structured cabling and horizontal patching between switches and wall outlets
• Environments with moderate electromagnetic interference where shielded cable is preferred
• Color‑coded installations where orange cable identification is required

Key specifications

• Cable category: Cat6 S/FTP (S‑STP)
• Length: 7 m
• Conductor: 4 pairs, 26 AWG stranded (26/7)
• Characteristic impedance: 100 Ohm
• Connectors: RJ‑45 male — RJ‑45 male, shielded
• Shielding: foil‑around‑each‑pair (PIMF) plus overall braid
• Boot: molded with kink protection and strain relief
• Certification level: suitable for Cat6 channel link applications
• Outer jacket color: orange

How to use

Connect one RJ‑45 end to the network device or switch and the other to the corresponding outlet or patch panel port, maintaining straight‑through (1:1) wiring. Ensure shield continuity by using metal‑frame patch panels or properly grounded keystone jacks when installing in shielded networks. Avoid tight bends and kinks; the molded boot provides protection at the connector but preserve the cable bend radius to maintain transmission performance.

Recommendations

For optimal performance in shielded installations, terminate the cable into compatible shielded jacks and ensure proper grounding of the overall braided shield. Route the cable away from high‑power electrical lines and sources of strong EMI. Use the orange jacket to simplify identification during rack and patch‑panel management.
