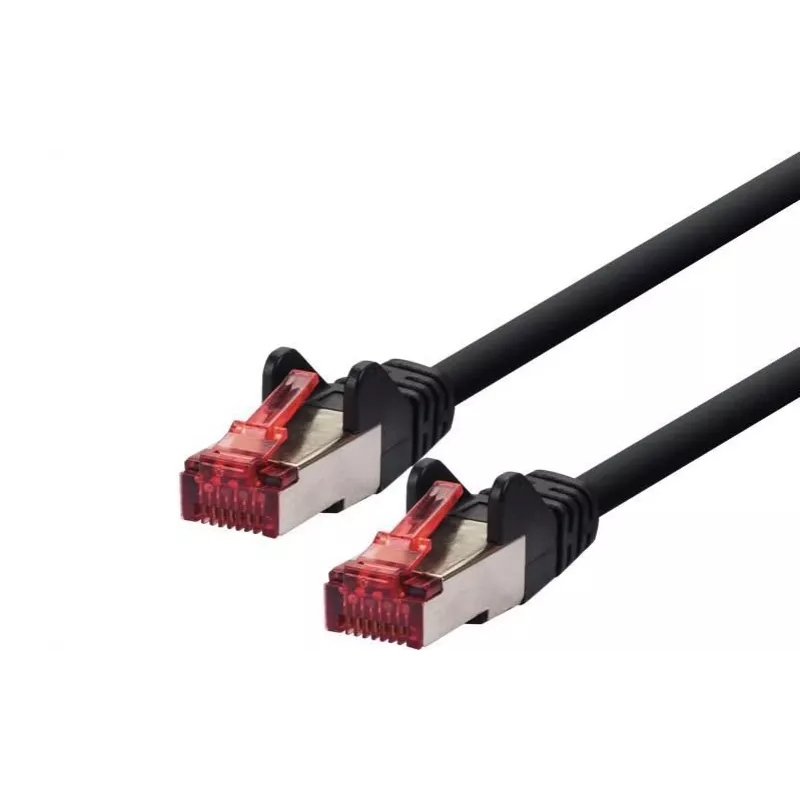

Cable de red LOGON TCR66SS200BL Cat6 SF/UTP (S-FTP) RJ-45–RJ-45 20 m negro

LOGON TCR66SS200BL is a 20 m Cat6 networking cable with SF/UTP (S-FTP) shielding and RJ-45 connectors on both ends. Designed for Gigabit Ethernet and high-speed LAN connections, this shielded patch cable reduces susceptibility to electromagnetic interference by combining foil around each pair with an overall braided shield. The cable uses four twisted pairs with 26 AWG stranded conductors and a 100 ohm characteristic impedance, and it comes with molded shielded RJ-45 plugs for reliable plug-and-play connections in office, home, and server-room environments.

Advantages

The S-FTP design (foil around each pair plus an overall braid) provides enhanced protection against crosstalk and external EMI compared with unshielded alternatives. At 20 meters length and with Cat6 specification, the cable supports Gigabit Ethernet performance and conforms to standard wiring guidelines for structured cabling. The PVC outer sheath offers mechanical protection and flexibility for typical indoor installations, while shielded RJ-45 connectors help maintain grounding continuity and reduce signal degradation at connection points.

Suitable for

• Gigabit Ethernet connections in offices and small data networks
• High-speed LAN links between network switches, routers, and patch panels
• Server-room or rack-mounted equipment where reduced EMI is required
• Home networks requiring reliable wired connectivity for streaming or gaming

Key specifications

• Cable category: Cat6 SF/UTP (S-FTP)
• Length: 20 m
• Conductor: 4 x 2 AWG 26/7 stranded conductors
• Impedance: 100 ohm
• Shielding: foil per pair + overall braided shield (PIMF)
• Connectors: shielded RJ-45 male to RJ-45 male
• Outer sheath: PVC
• Wiring standard: compatible with EIA/TIA 568
• Color: black

How to use

Connect the shielded RJ-45 plugs to the corresponding Ethernet ports on network devices such as switches, routers, patch panels or network interface cards. Ensure that metal chassis or grounding points are available when used in shielded environments to allow the cable shielding to be effective. Route the cable to avoid sharp bends, heavy compression, and proximity to strong electromagnetic sources; maintain minimum bend radius according to standard cabling practices to preserve signal integrity.

Recommendations

For optimal performance, use the LOGON Cat6 SF/UTP cable for runs up to 20 m within indoor installations and pair it with shielded network equipment or properly grounded panels. Avoid running the cable parallel and close to mains power lines or large transformers; if crossing is necessary, do so at a right angle. Inspect connectors for secure seating and consider replacement if connectors show visible wear or damage.
