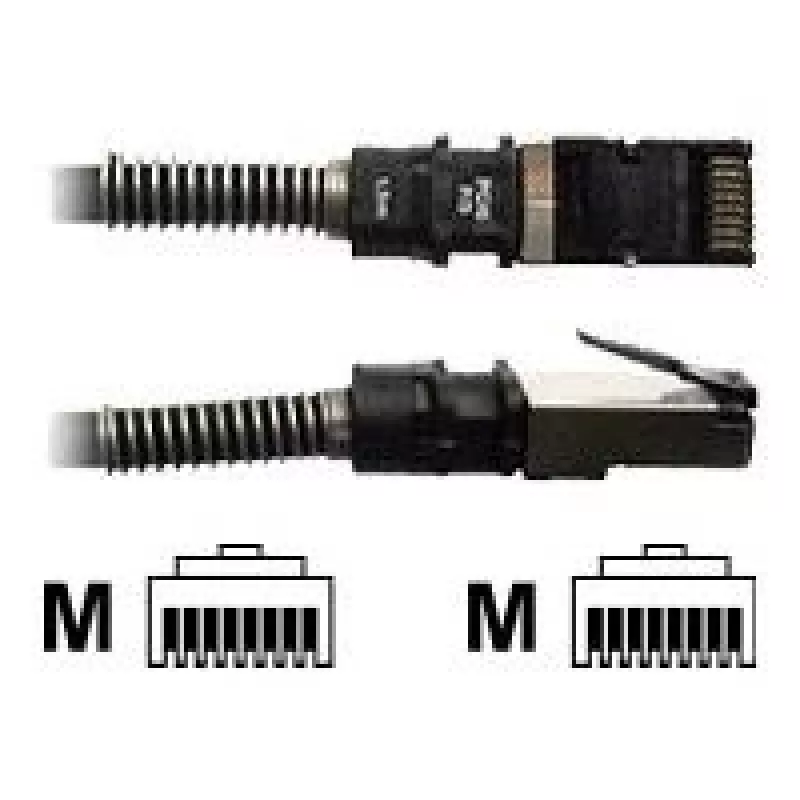

Cable de red PatchSee PCI6 FTP Negro Cat6a 2,1m

The PatchSee PCI6 FTP Black Cat6a 2.1m is a Category 6a networking patch cable designed for 10 Gbit/s Ethernet applications. It meets EIA/TIA 568-B2.2-10 and ISO/IEC 11801 ed2 standards and is available in a 2.1 m black cable with either UTP (plastic cross web unshielded) construction or FTP (individually foil shielded pairs) depending on the variant. FTP versions have a Low Smoke Zero Halogen (LSOH) sheath, while UTP versions use a PVC sheath. The cable is intended for reliable data transmission and reduced crosstalk in structured cabling systems.

Advantages

The cable is compliant with Cat.6a specifications and supports IEEE 802.3an 10 Gbit/s operation. It is manufactured with quality control measures including 100% electrical testing and recorded test results linked to a unique serial number for each patch cord. A 25-year guarantee covers use within Category 6a channels when interoperable with other cabling systems. The FTP construction offers improved pair-level shielding to reduce interference, while the UTP option provides a lighter, flexible alternative.

Suitable for

• 10 Gbit/s Ethernet connections in data centers and enterprise networks
• High-speed network links between switches, routers and patch panels
• Home or office local area network (LAN) cabling where Cat6a performance is required

Key specifications

• Standard: Cat.6a; conforms to EIA/TIA 568-B2.2-10 and ISO/IEC 11801 ed2
• Bandwidth/Application: 10 Gbit/s per IEEE 802.3an
• Length: 2.1 m
• Colour: Black
• Construction: plastic cross web unshielded (UTP) or individually foil shielded pairs (FTP)
• Sheath: PVC for UTP; LSOH for FTP
• Quality control: 100% electrical testing; test results saved to database; unique serial number per patch cord
• Guarantee: 25 years when used in Category 6a channels interoperable with other cabling systems

How to use

Connect one RJ45-terminated end of the PatchSee PCI6 FTP Cat6a cable to a network device (switch, router, NIC or patch panel) and the other end to the corresponding port. Ensure connectors are fully seated to maintain proper contact. Choose the FTP variant when additional shielding against electromagnetic interference is required; select UTP when flexibility and lower cost are priorities. Route the cable avoiding tight bends and sources of strong electromagnetic noise for optimal performance.

Recommendations

For best long-term performance, install the cable within standard Category 6a channel specifications, avoid exceeding recommended bend radius, keep the cable away from high-voltage power lines, and register the unique serial number if service or warranty support is needed.
