Cable de red VALUE 15m RJ-45 Cat6a verde S/FTP

Networking Cable VALUE 15m RJ-45 Cat6a Green S/FTP is a shielded PiMF patch cable designed for data transfer rates up to 10 Gbit/s and a bandwidth of 500 MHz. The 15 m green cable has RJ-45 connectors on both ends with 1:1 contact wiring according to the EIA/TIA 568 standard and an impedance of 100 Ohm. Pairs are shielded with aluminium foil and the cable features complete braided shielding, providing improved protection against external interference while maintaining flexible routing capabilities.

Advantages

The S/FTP construction combines pair-level foil shielding with an overall braid, reducing crosstalk and electromagnetic interference. Moulded kink protection on the RJ-45 connectors increases durability and prevents strain at the plug area. The cable supports 10GBase-T applications and is suitable for structured network installations where a 15 m length and green colour coding are required.

Suitable for

• High-speed LAN connections up to 10 Gbit/s
• Server rooms and data cabinets
• Workstation and switch interconnections within a 15 m run
• Environments requiring reduced electromagnetic interference

Key specifications

• Length: 15 m
• Category: Cat6a
• Connector type: RJ-45 to RJ-45

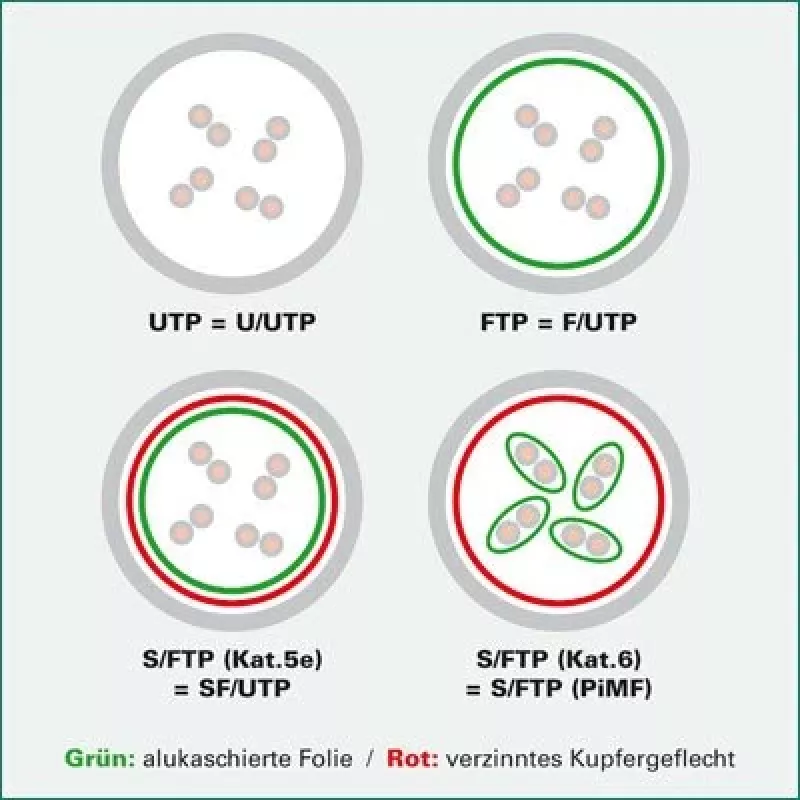

• Shielding: S/FTP (pairs foil, overall braid)
• Impedance: 100 Ohm
• Bandwidth: 500 MHz
• Data rate: up to 10 Gbit/s (10GBase-T)
• Contact wiring: 1:1 (EIA/TIA 568)
• Colour: Green

How to use

Connect one RJ-45 plug to a network device (switch, router or NIC) and the other RJ-45 plug to the target device, ensuring secure insertion until the latch clicks. Route the cable avoiding sharp bends and excessive tension; the flexible sheath allows routing in constrained spaces but observe the minimum bend radius to preserve performance. For optimal performance, keep the cable away from strong sources of electromagnetic interference and follow standard structured cabling practices when integrating into racks or cable trays.

Recommendations

For sustained 10 Gbit/s performance, use within the specified 15 m run and connect to compatible 10GBase-T ports. Inspect connectors for damage before installation and avoid tight cable bundles with unshielded electrical cables to minimize interference.
