Cable DELOCK 90972 DL4 conector solar macho a hembra 4 mm² 1 m rojo/negro 1000 V DC

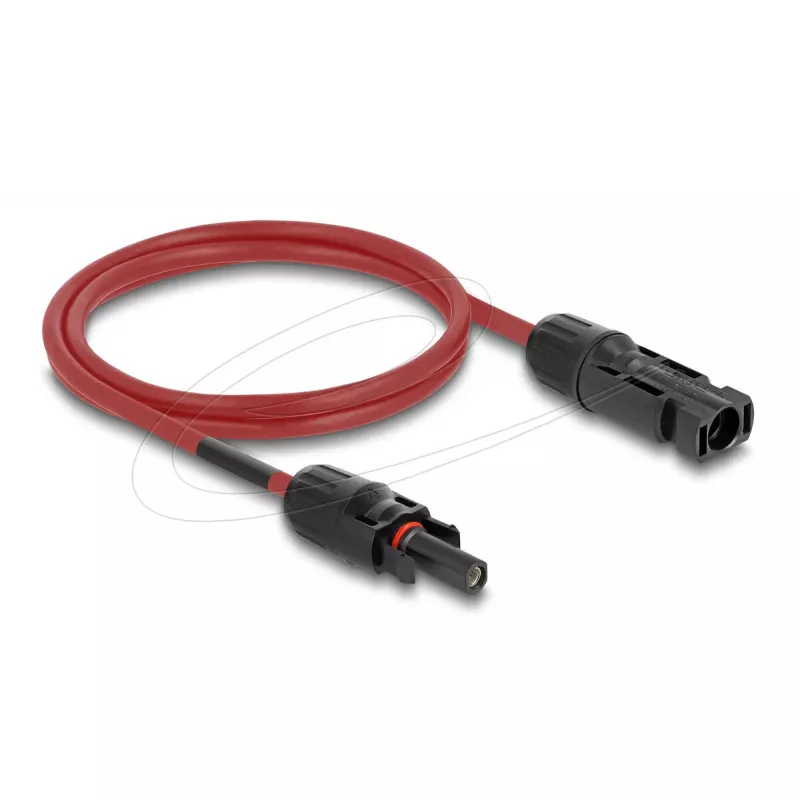

DELOCK 90972 is a solar cable intended to transmit DC power from photovoltaic systems. It features a two-core red/black cable with a conductor cross-section of approximately 4 mm² and a length of 1 m. The cable is designed for use between solar panels, junction boxes and other solar equipment and is rated for a maximum voltage of 1000 V DC.

Advantages

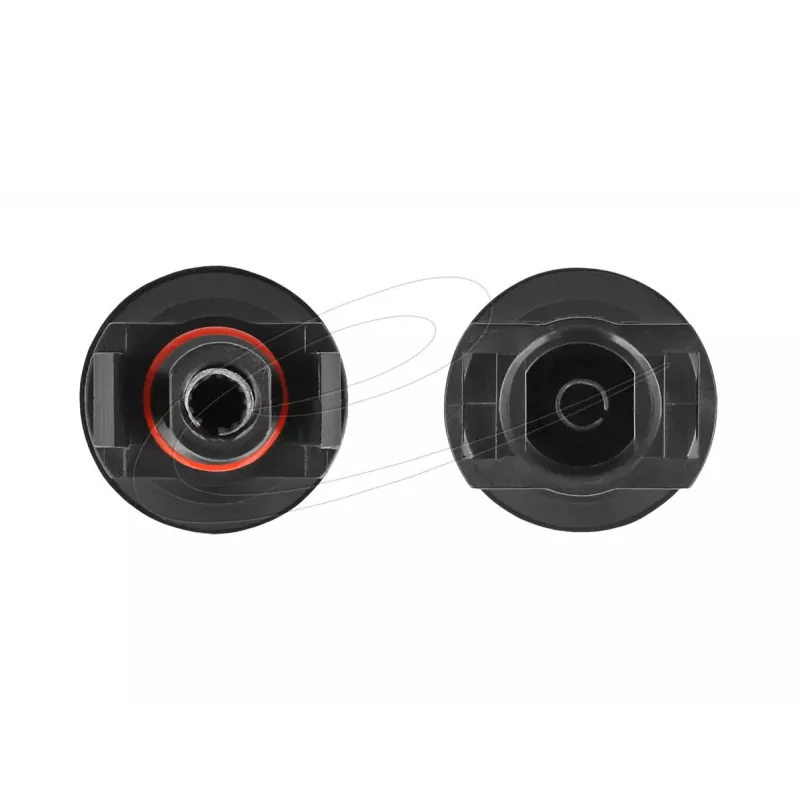

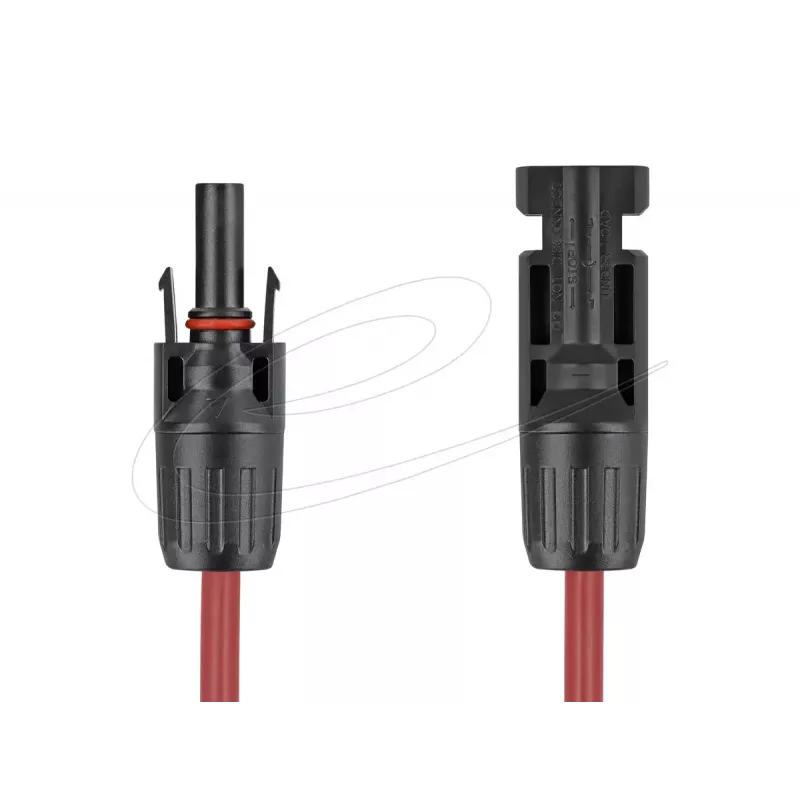

The DL4 connectors on this cable use a snap-in mechanism to ensure a secure and reliable electrical connection that resists unintentional disconnection. The assembly is dust- and waterproof with IP67 protection, and the cable supports a wide operating temperature range from -40 °C to 90 °C, making it suitable for outdoor use in varied climates.

Suitable for

When it may not be suitable

This cable is designed for low-voltage DC photovoltaic systems and is not intended for AC mains connections or for systems that require different connector standards. It should not be used where conductor cross-section, voltage rating or connector compatibility differ from the system requirements.

Key specifications

How to use

Align and snap the DL4 male and female connectors together until the snap-in mechanism engages; release requires the appropriate tool designed for DL4 connectors. Route the cable to avoid sharp edges and excessive bending; ensure connections are clean and dry before assembly. Verify polarity when connecting red and black conductors and confirm system voltage and compatibility prior to installation.

What to consider before purchase

Recommendations

Use the cable for DC photovoltaic connections only; maintain correct polarity, protect connections from mechanical strain, and use the appropriate release tool when disconnecting DL4 connectors to avoid damage.
